26
INSTALL THE
DC JACK
1414

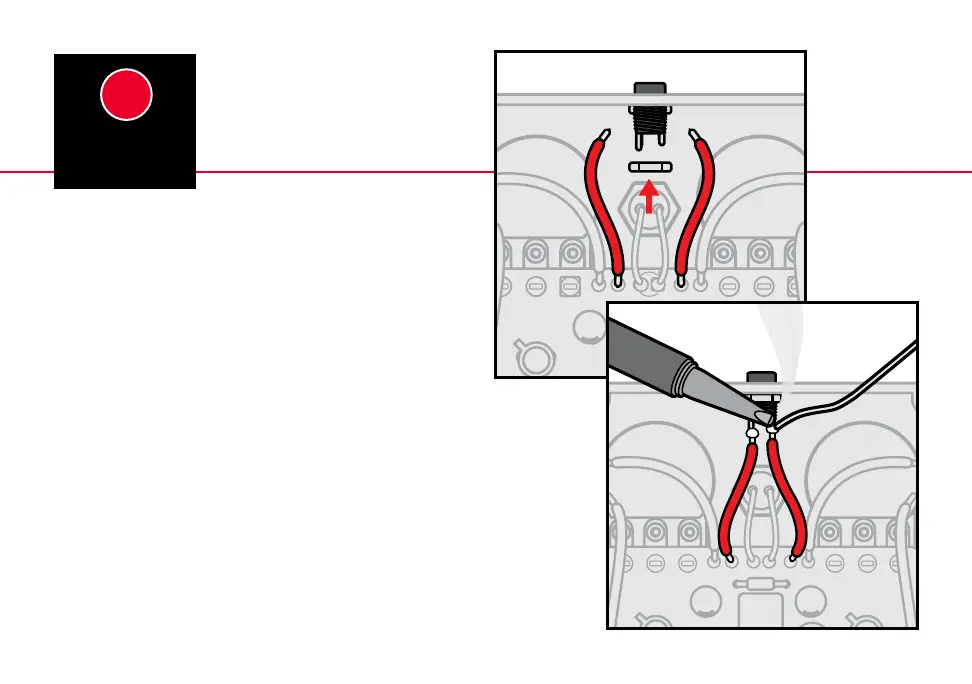

Insert the DC jack into the top of the housing making
sure the longer of the two lugs is on the left.
Using a 14mm wrench or needle nose pliers and
14mm nut, secure jack into housing just enough to
allow the jack to rotate.
Solder the left wire to the longer lug of the DC jack.
Solder the right wire to the shorter lug of the DC jack.
Once solder joints have cooled, tighten the nut with a
pair of needle nose pliers. Be careful not to tighten to
tightly because you can crack the bushing of the jack.
