4) Position the REAR COVER(11) at the back of the DISPLAY CONSOLE and secure it using four M510mm
TAPPING SCREWS(12).

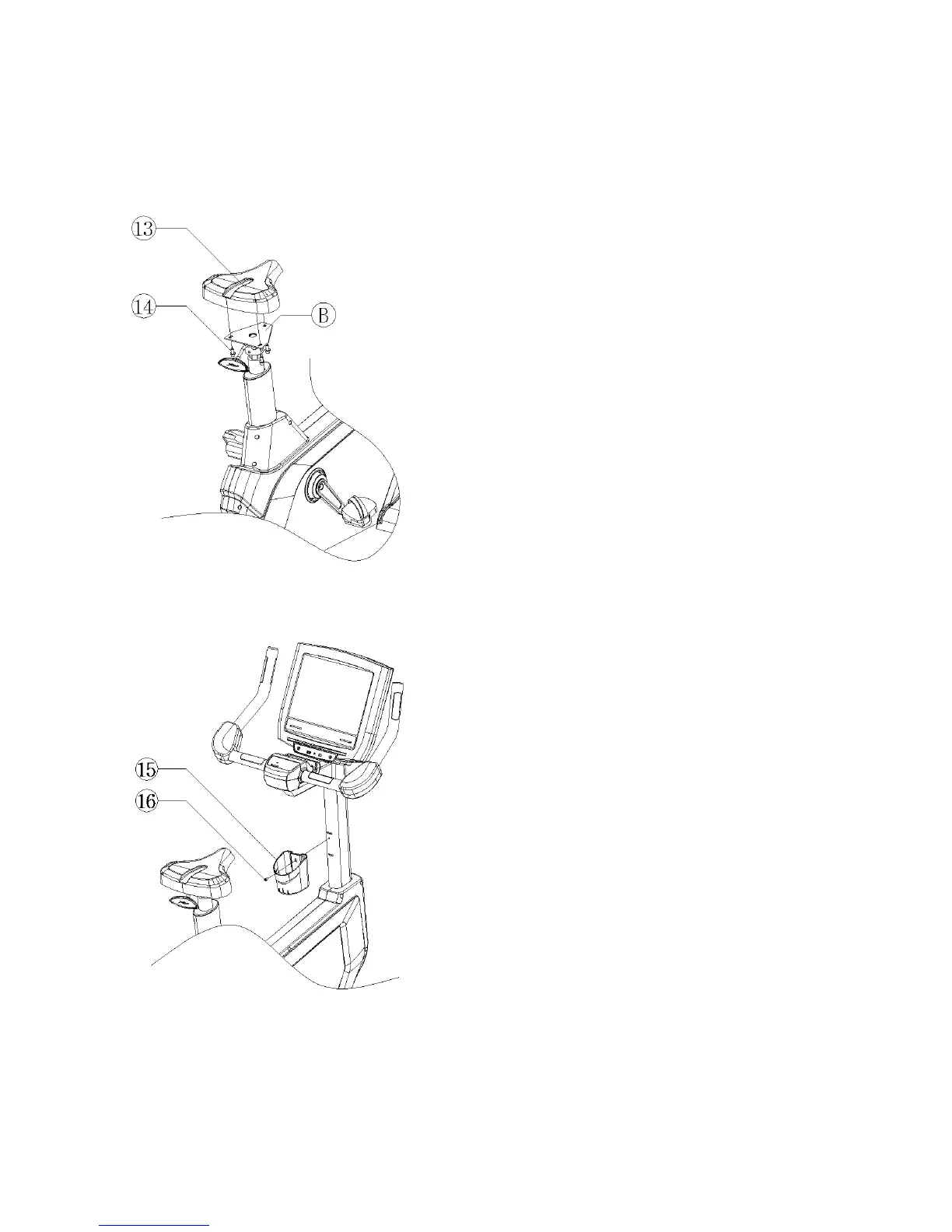

7. Secure the SEAT(13).
1) Position the SEAT(13) near the SEAT SUPPORTING
BRACKET(B) of the rear base frame.
2) Secure the SEAT using three M820mm SCREWS(13).
Note: Tighten the SCREWS securely.
8. Attach the CUP HOLDER(15).
1) Position the CUP HOLDER(15) as shown.
2) Secure the CUP HOLDER using one M512mm SCREW(16).
Note: Do not overtighten the SCREW.
9. Turn a leveler.
① Place the exercise bike in its intended location for use.
② Check the stability of the bike. If the exercise bike is not level, turn a leveler in the front & rear foot-pipe in either
