Product description

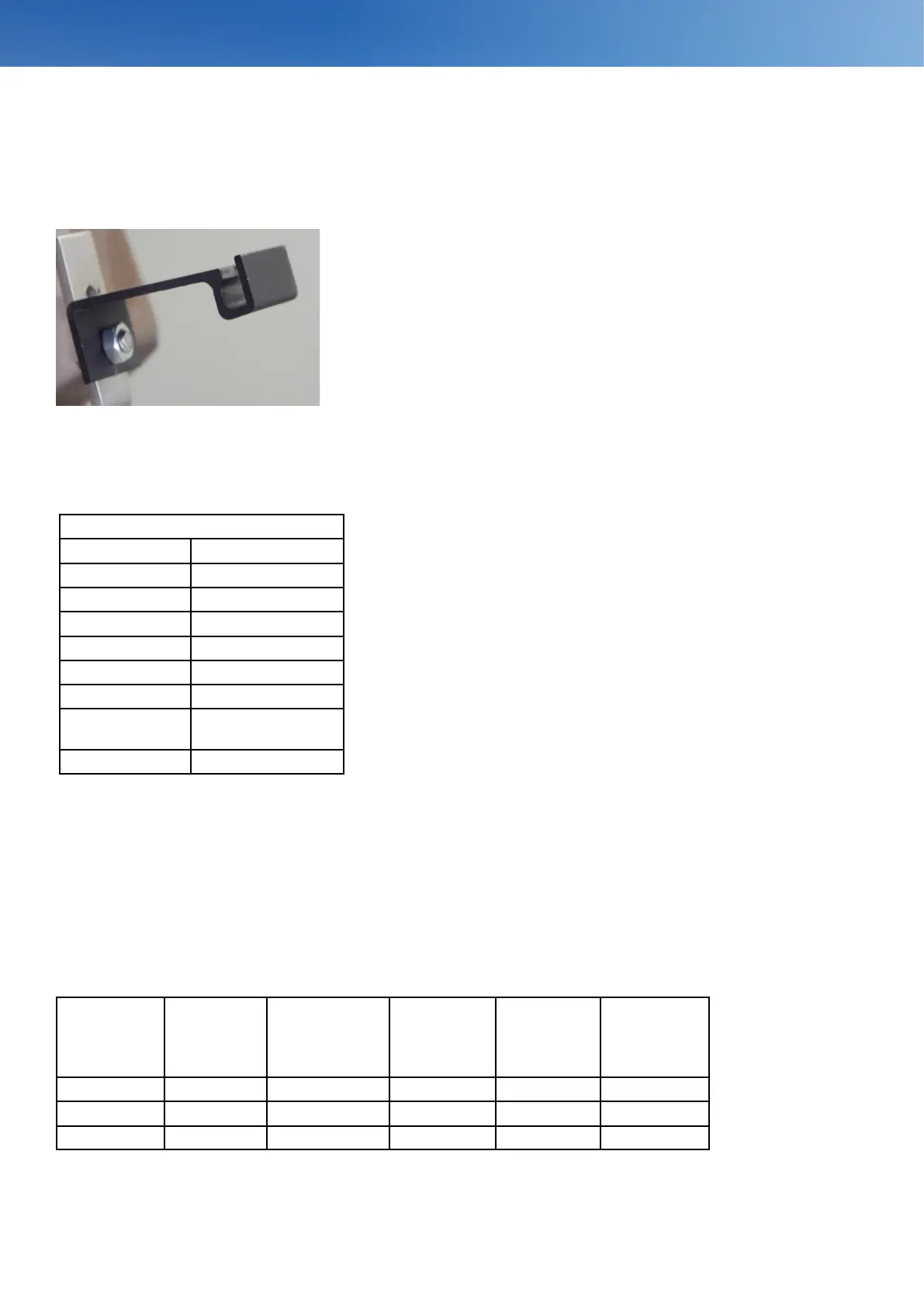

To mount the collector on substructure - four
clamps made of aluminum are required.
(see gure)
These are available as a kit from your supplier.
The collector can be mounted onto slanted roofs
or console constructions (at roofs, base or b
arri-
er).
Use for solar thermal systems for hot water generation
Example for dimensioning
Number
of
FINO’s
People
Hot water
consumption
per day
Capacity of
hot water
storage tank
Heat
exchanger
Norminal
ow rate
2 2-3 100 l 100 l 0,50 m² 50 l/h
3 4-5 150 l 150 l 0,75 m² 75 l/h
4 4-6 200 l 200 l 1,00 m² 100 l/h
Capabilities
Clamp
Model FINO
cross area 0,96 m²
length 1.200 mm
width 800 mm
height 70 mm
case plastic tray
glass solar glass ESG
insulation mineral wool
absorber vacuum coating,
highly selective
weight 13,5 kg
Specications
