8

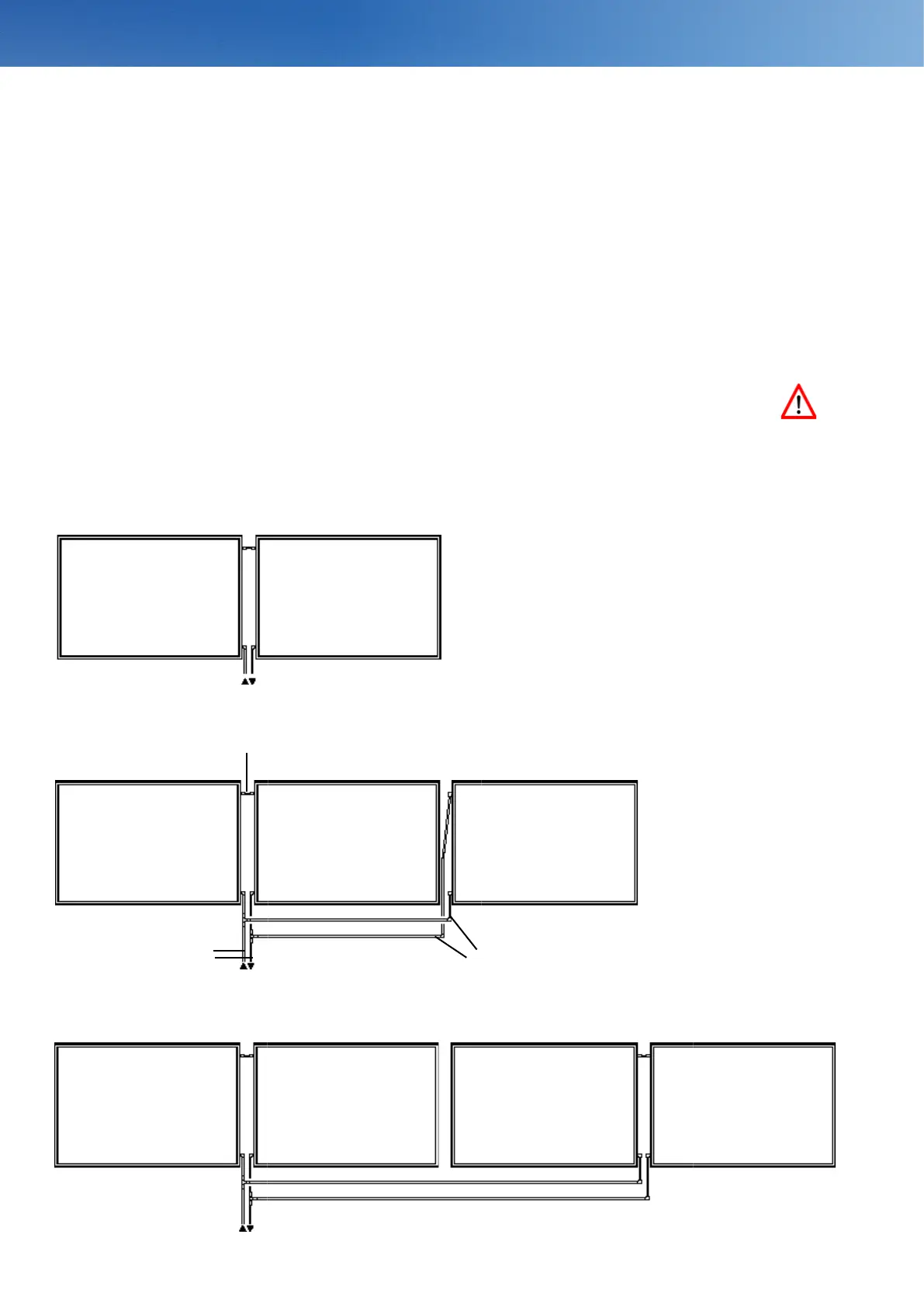

Collector hydraulic
Each collector has unilaterally a ow and return connection (tube 10 mm.) up to four collectors can be connected
in series.
In parallel interconnecting any number of such elds can be combined, taking into account the pressure losses.
The dimension of the connecting pipe is always 10x1 mm (A) between two collectors. The collection pipe 12x1 mm
(B). The dimensions of the ow and the return pipe are to be seen in the table at page 14. (C).
single-row with two collectors
single-row with three collectors
Arrangement options
single-rows with four collectors
A
C B
