7
The hydraulic connection between the collectors requires
standard clamping ring joints (10 mm).
Example: Supplier: Simplex VSH SUPER
Please note the assembly instructions of your supplier.
The maximum allowable operating pressure is 6 bar.
Pressure drop per collector at design conditions
(Tm = 20°C und dV/dt = 50 l/h)
Δp = 2930 Pa
Table of measurements (Pa) (Tm = 20 °C)
ow rate [l/h] pressure drop [Pa]
100 6660
150 1119 0
200 16520
250 22650
300 29580
Product description

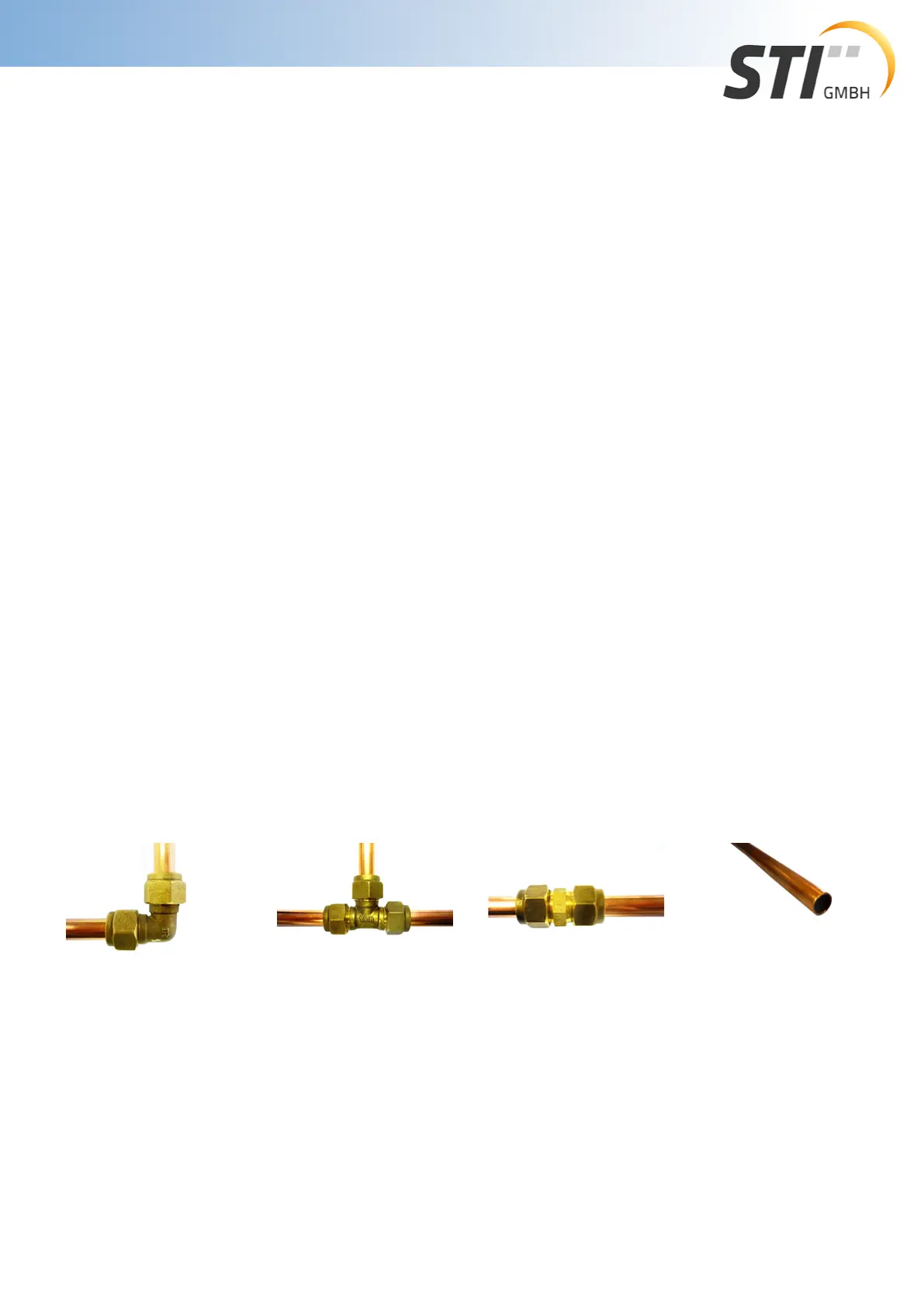

Hydraulic connections
angle 90°
T-piece
straight connection
copper tube 10 mm
