STIEBEL ELTRON WPF 13

21

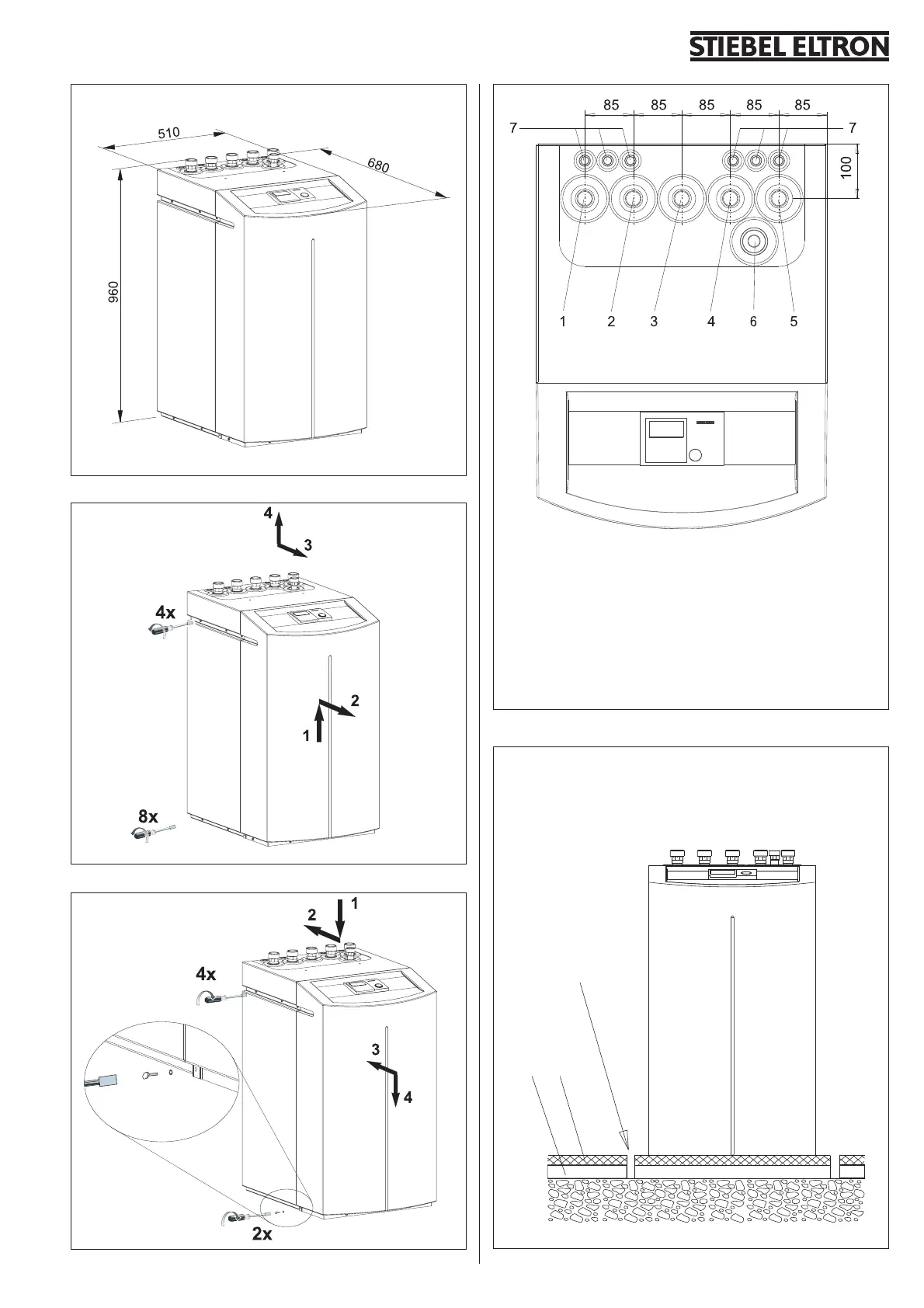

Dimensions in mm
Fig. 2
Fig. 6
Fig. 4
Fig. 5
Fig. 3
26_03_01_0264
26_03_01_0266
26_03_01_0267
1
2
C26_03_01_0263
26_03_01_0265
1 Brine outlet
2 Brine inlet
3 DHW flow
4 Central heating flow
5 Central heating return
6 Safety assembly connection
(included in the pack)
7 Electrical cable terminal
1 Impact sound insulation
2 Floating screed
Recess screed and sound
insulation
Fitting the casing parts
Removing the casing parts
