WWW.STIEBEL-ELTRON.COM WPL E | WPL COOL| 19
INSTALLATION
FITTING CASING COMPONENTS

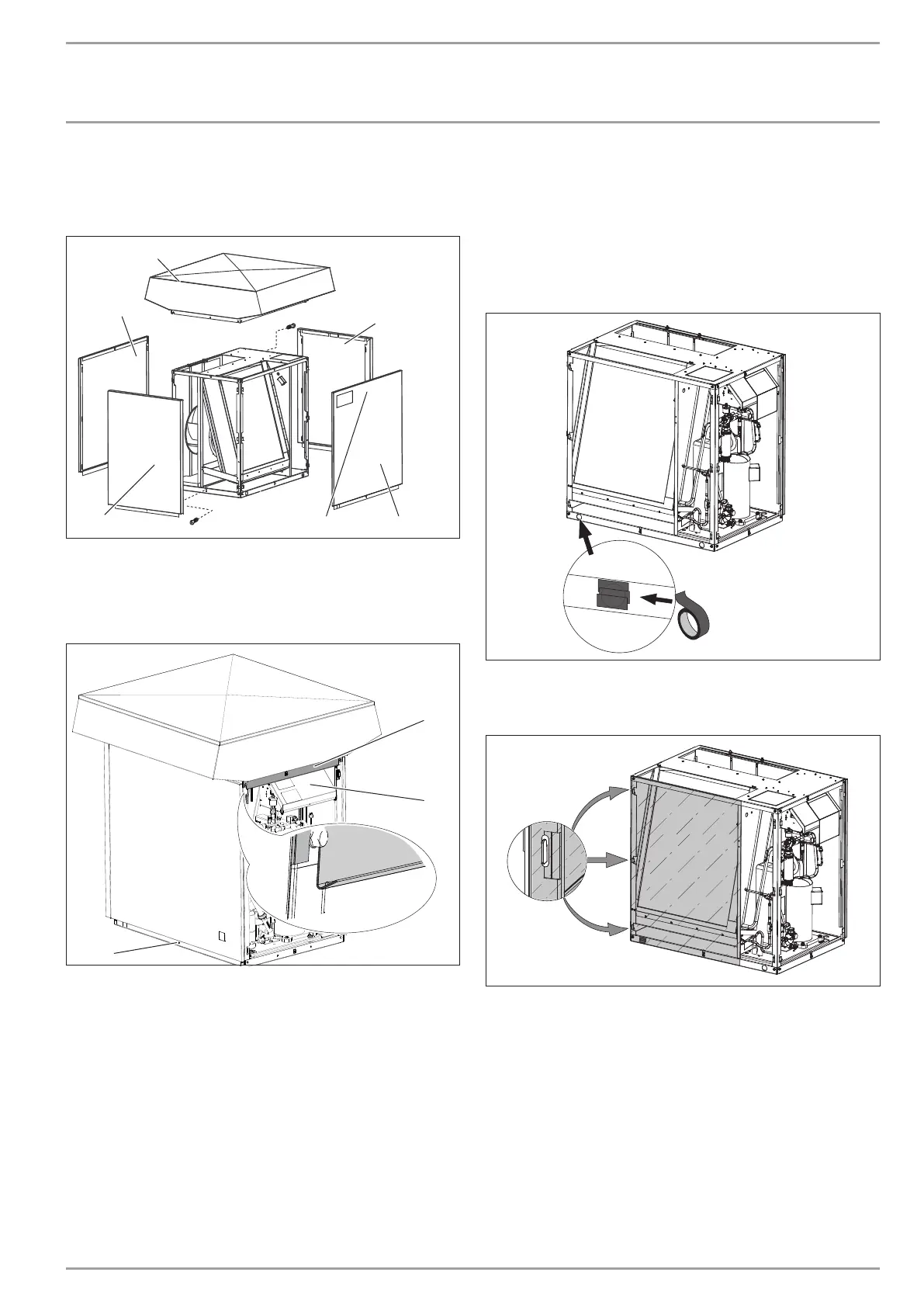

12. Fitting casing components
12.1 External installation
2
1
3
1
5
4
26�03�01�0929�
1 Side panel
2 Cover
3 Front panel
4 Type plate
5 Back panel
26�03�01�1738
1
2
3
1 Bevelled edge
2 Control panel
3 Screw
Position the cover on the appliance. Ensure that the bevelled
edge of the appliance cover is on the same side as the control
panel.
Secure the cover with two screws.
Hook the side panels, front panel and back panel into the
hooks on the standard appliance. Secure the casing sections
at the bottom with one screw each.
Affix the type plate supplied in a highly visible position on
one of the casing panels of the appliance.
12.2 Internal installation
12.2.1 Sealing the appliance
Before fitting the casing sections, seal the appliance by affixing
a plastic film; this will prevent condensation forming under all
operating conditions.
The plastic film is supplied with the casing sections.
26�03�01�1456
Apply fabric tape to seal the hole at the bottom of the frame
on the l.h. side. The fabric tape is supplied with the accessory
"thermally insulated air hose".
26�03�01�1454
Hang the film with the pre-cut holes onto the hooks on the
appliance.
