18.3 Output diagrams

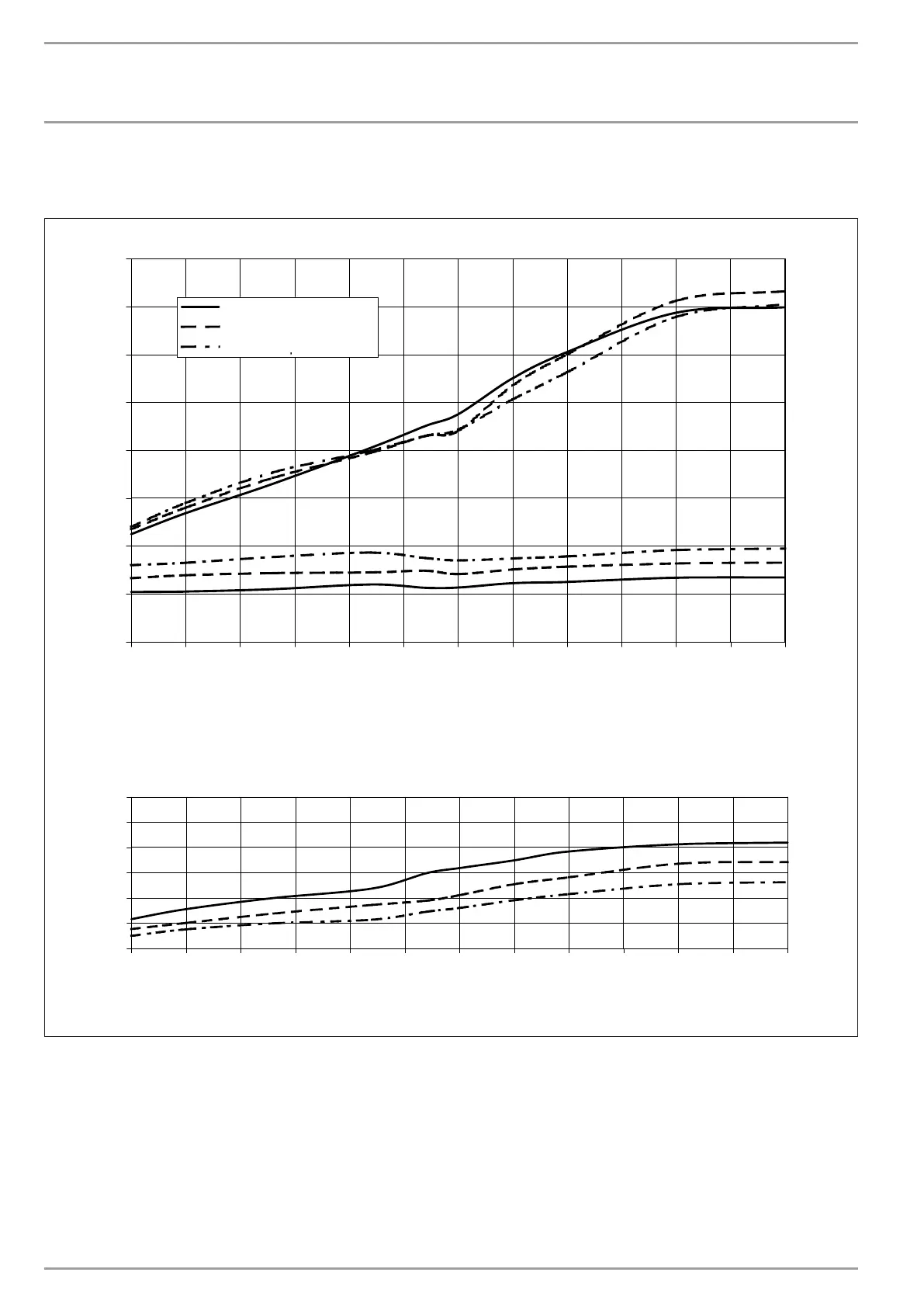

Heating output diagram WPL 13 E | WPL 13 cool
0
2
4
6
8
10
12
14
16
-20 -15 -10 -5 0 5 10 15 20 25 30 35 40
Vorlauftemperatur 35 °C
Vorlauftemperatur 50 °C
Vorlauftemperatur 60 °C
Outside temperature°C
Power consumption P(el) / kW Heating output Q`(H) / kW
Coefficient of Performance e / –
Outside temperature°C
1
2
3
4
5
6
7
-20 -15 -10 -5 0 5 10 15 20 25 30 35 40
26�03�01�0960
26�03�01�0961
Flow temperature 35 °C
Flow temperature 50 °C
Flow temperature 60 °C
