BRIEF GUIDE
www.stiebel-eltron.com WPM | 7
ENGLISH
This manual is intended to enable quick operation of the heat pump system. These instructions allow the qualified contractor to explain
to the user how to operate the heat pump system. For more information, refer to the WPM heat pump manager instructions.
f Observe the safety instructions for the WPM.

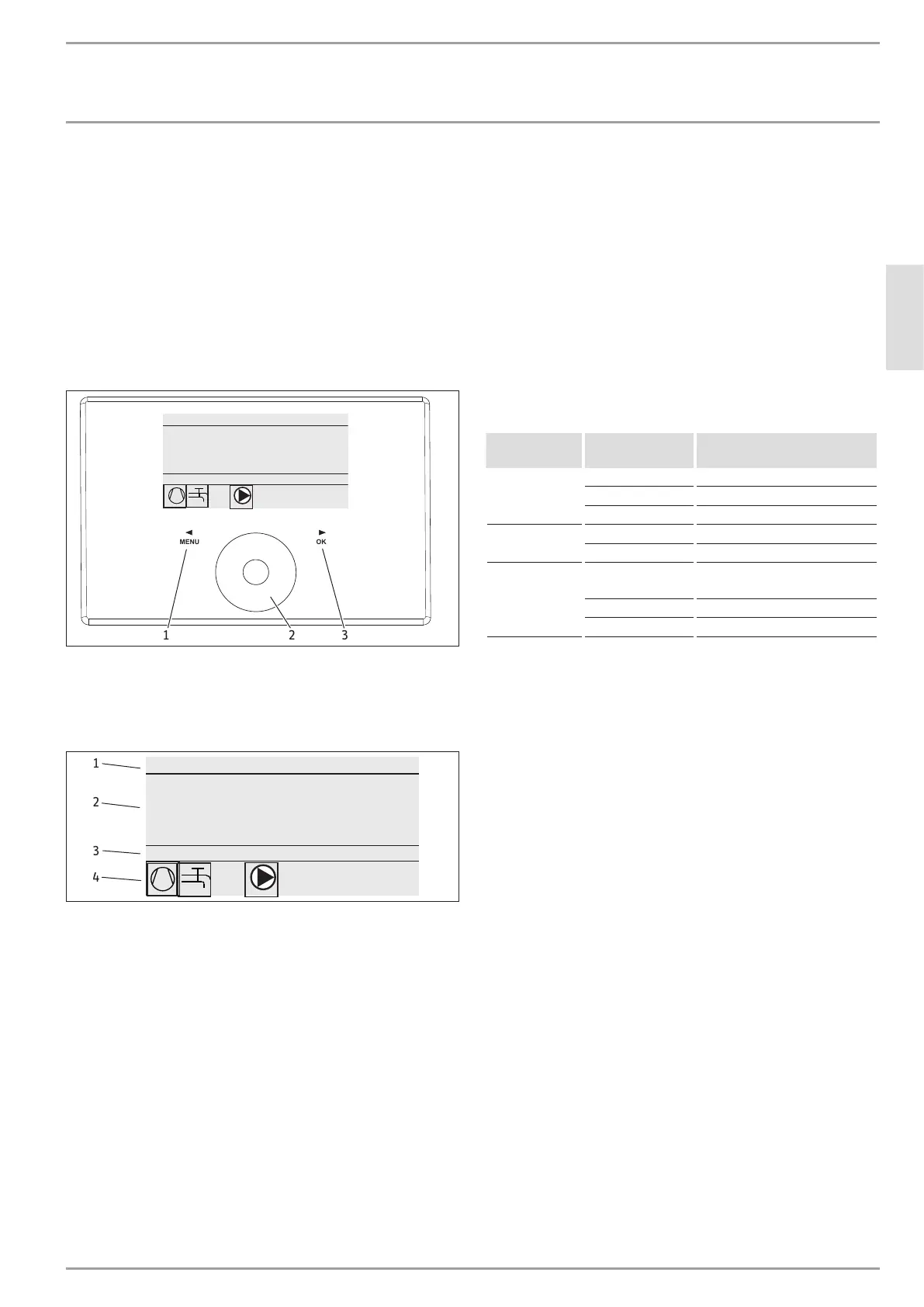

How do I operate the controller?
Unlocking the display
If the Touch-Wheel and keys are not used for 5minutes, the controller is locked.
f Press MENU for three seconds to activate the controller.
Operation
OKMENU
D0000064711
WEDNESDAY 22. JUN 22 10:23 TIME
OUTSIDE TEMPERATURE
ACTUAL WW TEMPERATURE
27.0 °C
35.0 °C
28.0 °C
ACTUAL RETURN TEMPERATURE
ECO MODE
21 3
1 "MENU" key
2 Touch-Wheel
3 "OK" key
Start screen
WEDNESDAY 22. JUN 22 10:23 TIME
OUTSIDE TEMPERATURE
ACTUAL WW TEMPERATURE
27.0 °C
35.0 °C
28.0 °C
ACTUAL RETURN TEMPERATURE
ECO MODE
26_04_01_0292
1
2
3
4
1 Date and time
2 Temperature indicator (configurable)
3 Operating mode
4 System status picture symbols
The controller is operated via the Touch-Wheel and the two keys
to the left and right.
Operating
controls
Range Function
Touch-Wheel
Start screen Select operating mode
Menu level Select submenu
Parameter level Set value
"MENU"
Start screen Open menu
Menu level Go back one menu level
"OK"
Start screen Activate selected operating
mode
Menu level Open submenu
Parameter level To save a value
BRIEF GUIDE
