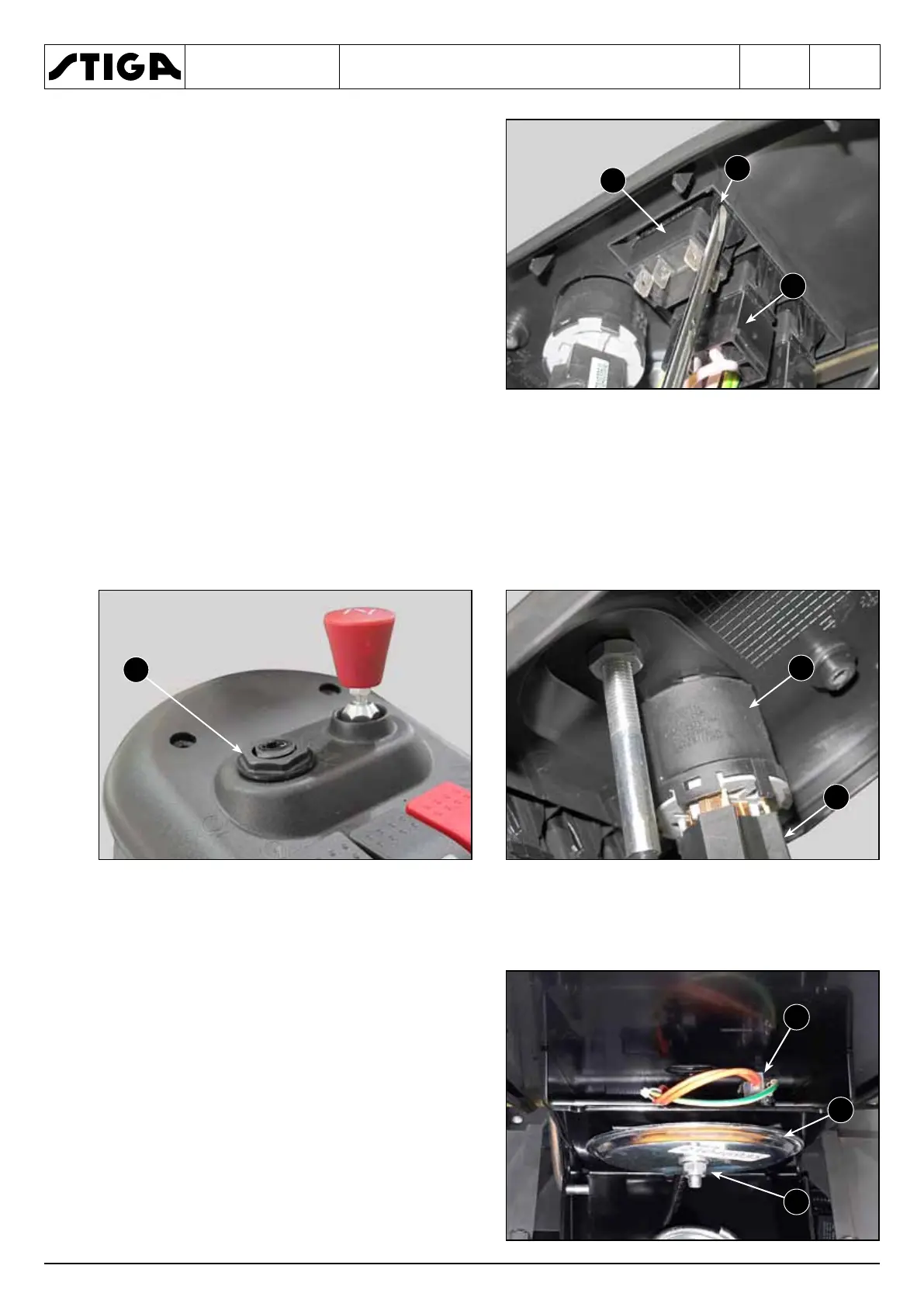

The switches are press-fitted into their respective
housings. To replace a switch:
1. Disconnect the connector (1).
2. Using a screwdriver or a similar tool, press the
locking tabs (2) on both sides of the switch (3).
3. Remove the switch (3).
 
1. Unscrew the nut (1).
2. Remove the starter block (2) and disconnect the connectors (3), making sure to mark them so
as not to incur in assembly errors.
 
This switch is located under the driver's seat and
detects the presence of the operator for safety
system intervention.
To disassemble the switch:
1. Disconnect the connector (1).
2. Unscrew the nut (2) and remove the switch (3).










Stiga 2021 Edition PARK 520 P Specifications

General

Fuel	Petrol
Cutting Height Range	25-85 mm
Transmission	Hydrostatic
Drive	Rear-wheel drive
Steering Linkage	Mechanical
Hour Meter	Yes
Headlights	LED
Wheel Size Front	16x7.50-8
Wheel Size Rear	16x7.50-8
Steering	Articulated
Seat Type	Comfort seat
Cutting Height	25-75 mm
