Workshop Manual
PARK 120 - PARK 220
Chapter
8 Mower Decks
Page
69
A
A
CLICK

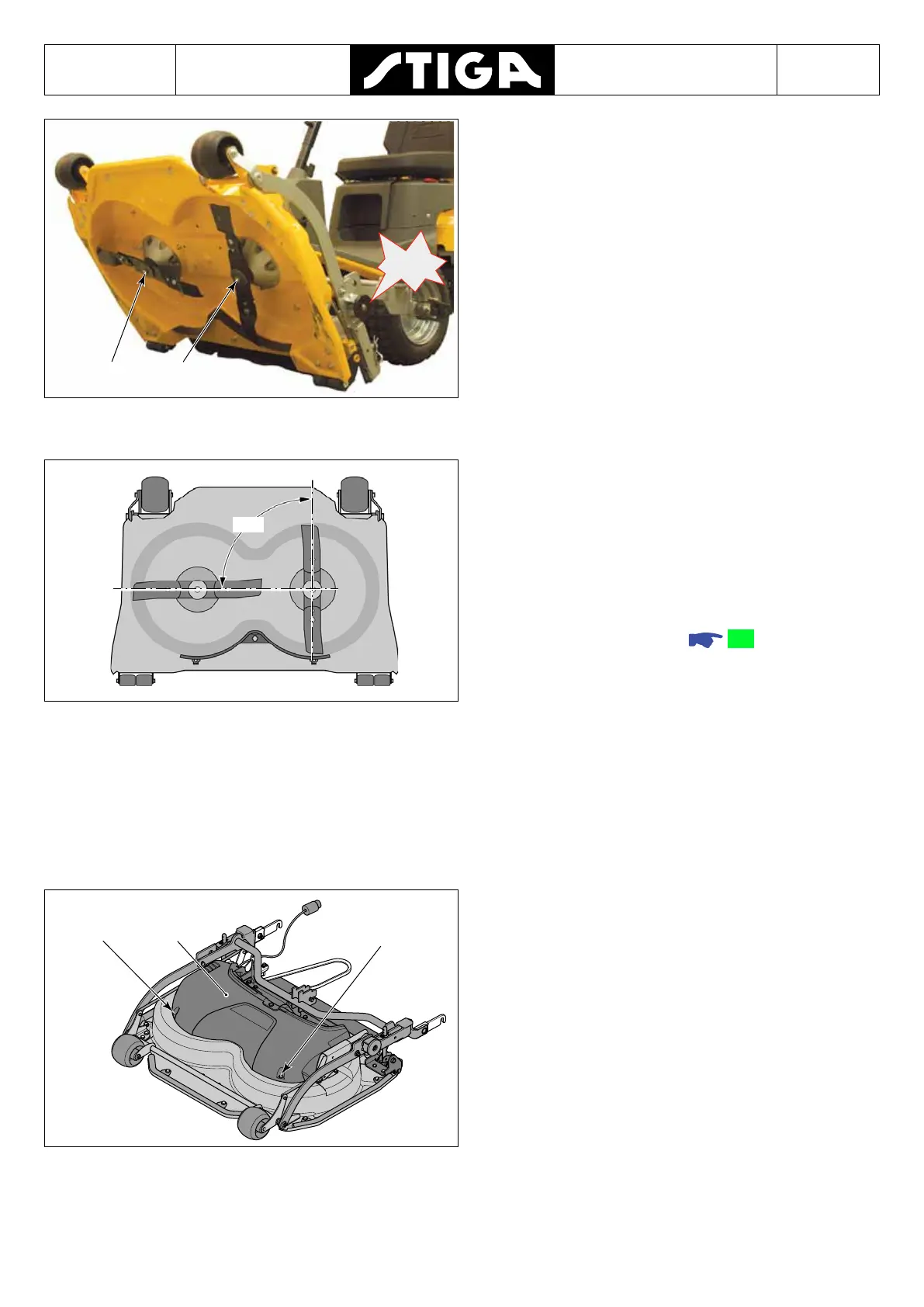

3. Rise the deck to its service position. See
INSTRUCTION MANUAL.
4. Screws the screws (A) - use a 17 mm spanner)
to hold the blades.
90°
5. Reinstall the blades at 90° to one another.
NOTE:
• The blades can be turned 1/3 of a turn in
their mountings. Select positions so that the
blades are offset 90° from each other. See
“Synchronising, blades”
8.5.
8.3 Replacement of belt
8.3.1 Disassembly
B
B
A
1. Remuve the belt cover (A) by unscrewing the
scews (B). Use a 12 mm box spanner.

Stiga PARK 120 2020 Specifications

General

Engine Type	Petrol 4-stroke
Transmission	Hydrostatic
Weight	167 kg
Fuel Type	Petrol
Drive Method	Rear-wheel drive
Engine Displacement	414 cc
Steering	Articulated
Cutting Width	85 cm
