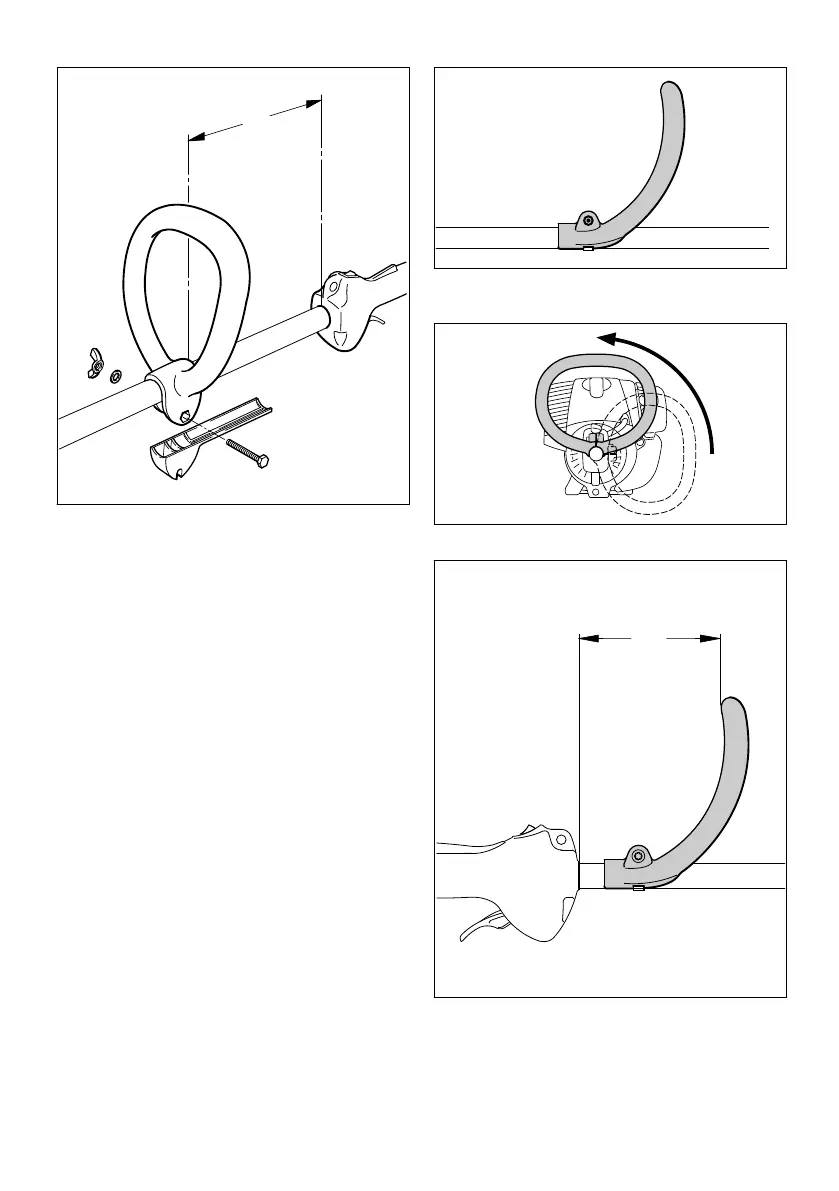

► Fit the loop handle (1) on the drive tube at dis‐
tance (A) of about 20 cm (8 in.) from the con‐
trol handle (2).
► Slide the spacer (3) – if supplied – into the
loop handle as far as stop.
► Insert the screw (4) through the loop handle
and the spacer until the screw head locates in
the loop handle's hexagon recess.
► Fit the washer (5).
► Screw on the star knob (6) and tighten it down
firmly.
Adjusting loop handle to most comfortable posi‐
tion
► Loosen the star knob (6).
► Move the loop handle (1) along the drive tube
as required.
► Tighten down the star knob (6) firmly.
4.2 Version B
Your new power tool comes with the loop handle
mounted on the drive tube, but it must be turned
and lined up to suit your requirements.
Line up the loop handle.
► Use the combination wrench to loosen the
screw (1).
► Turn the handle to the vertical position.
The loop handle can be adjusted to suit the
height and reach of the operator and the applica‐
tion by changing distance (A).
Recommendation: distance (A): about 15 cm
(6 in)
English 4 Mounting the Loop Handle
10 0458-232-0121-F
