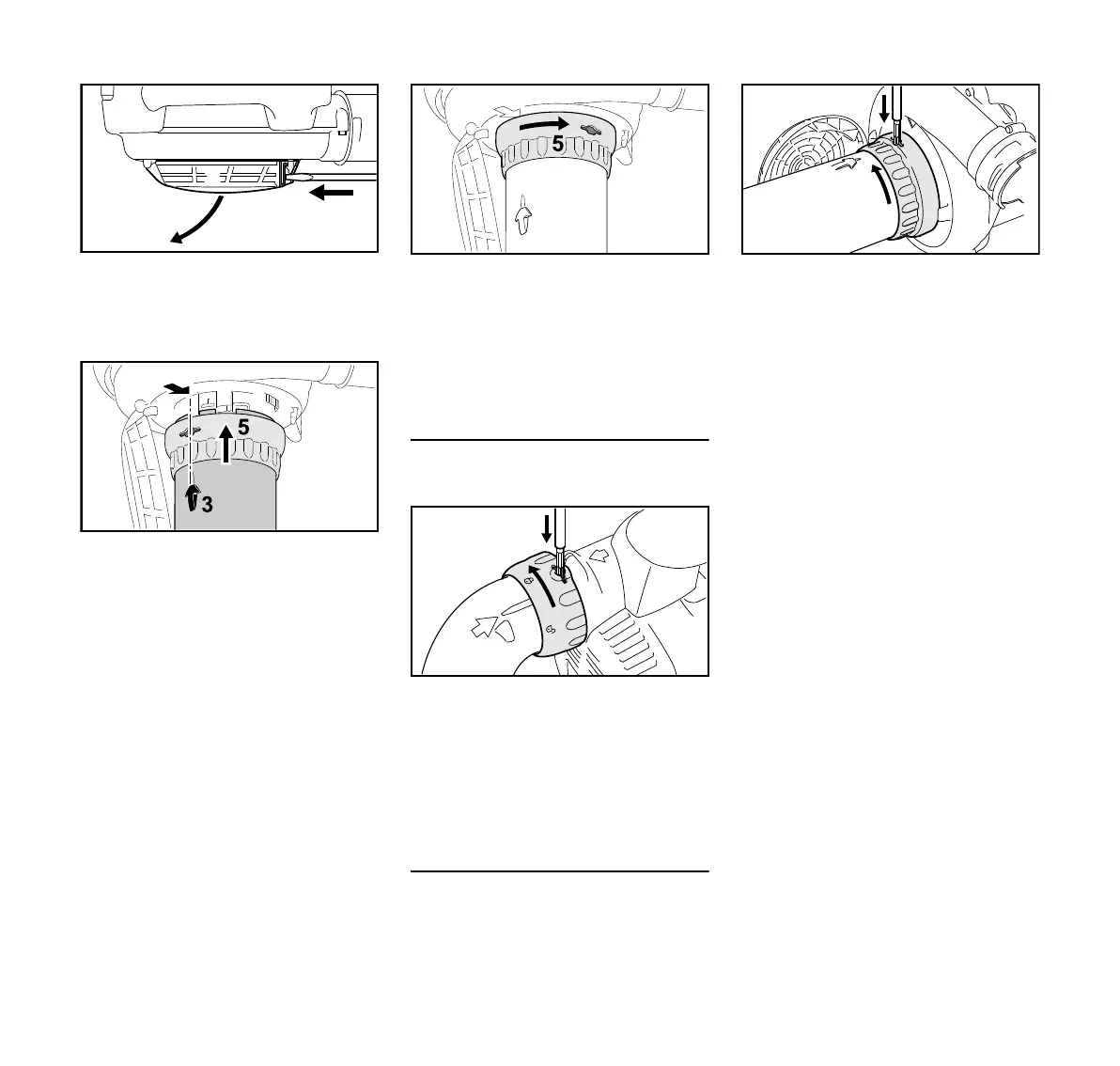

N Insert screwdriver in the tab (1) and
press down to disengage the intake
screen (2) and then open the intake
screen.
N Line up the arrows (3).
N Position union nut (5) so that the
opening lines up with the arrows (3).
N Push the suction tube into the fan
housing stub (4) as far as stop.
N Push the union nut (5) over the fan
housing stub.
N Rotate union nut (5) in direction of
arrow until it snaps audibly into
position.
N Continue turning the union nut in
direction of arrow and tighten it
down firmly.
Removing the Elbow
N Shut down the engine.
N Insert a suitable tool through the
opening in the union nut to press
down the tab.
N Rotate the union nut in the direction
of the arrow as far as the stop.
N Remove the elbow.
Removing the Suction Tube
N Shut down the engine.
N Rotate the union nut in the direction
of the arrow as far as the stop.
N Insert a suitable tool through the
opening in the union nut to press
down the tab.
N Continue turning the union nut in the
direction of the arrow as far as the
next stop.
N Remove the suction tube.
N Close the intake screen and lock it
in position.
