1 Drive tube
2 Fan housing
3 Blower tube
4 Nozzle
Definitions
1. Drive tube
Encloses and protects drive shaft
between engine and gearbox.
2. Fan housing
Encloses the axial fan.
3. Blower tube
Directs airstream.
4. Nozzle
Mounted on blower tube, directs
airstream.

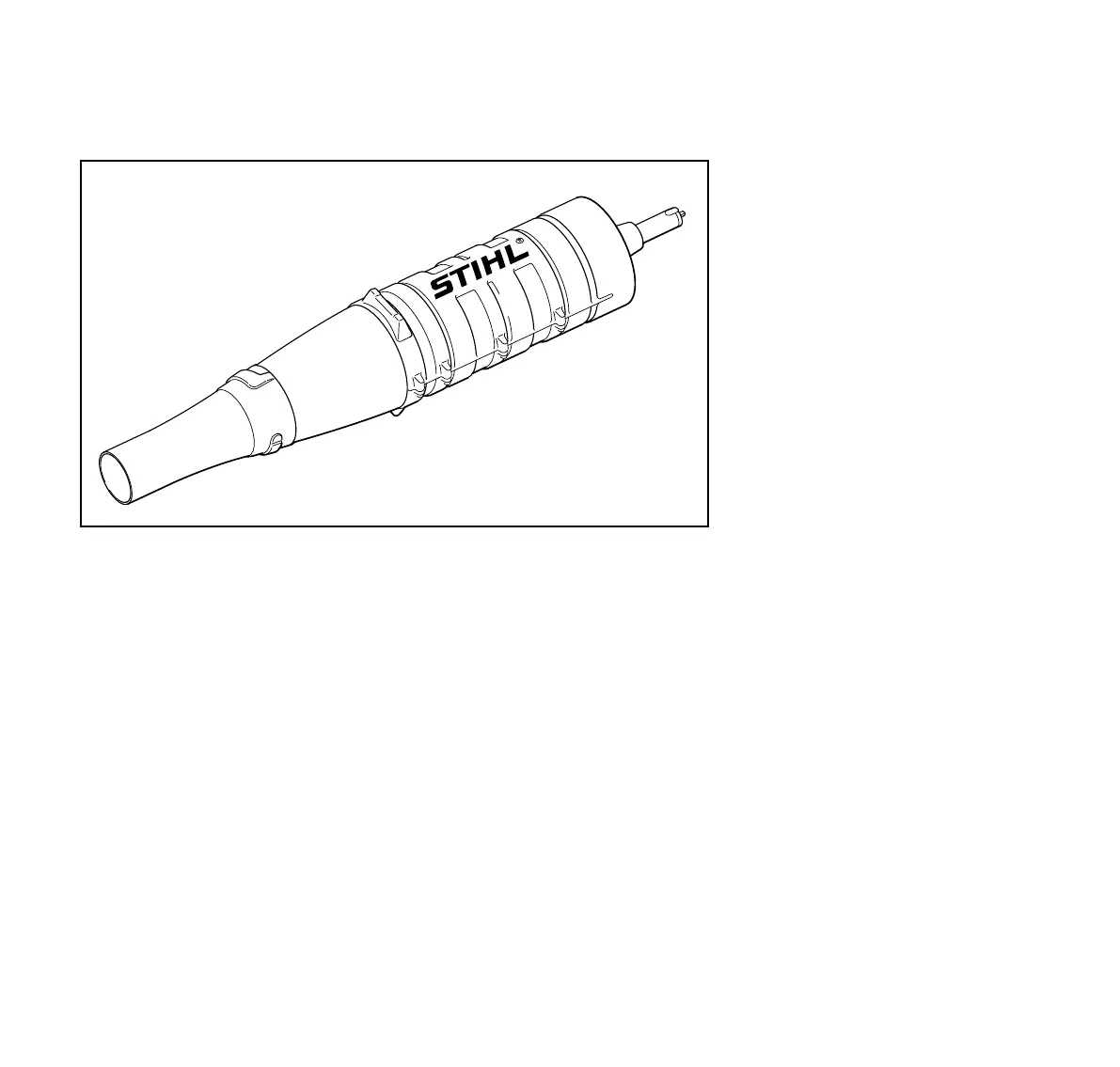

Main Parts
548BA002 KN
2
3
4
1
