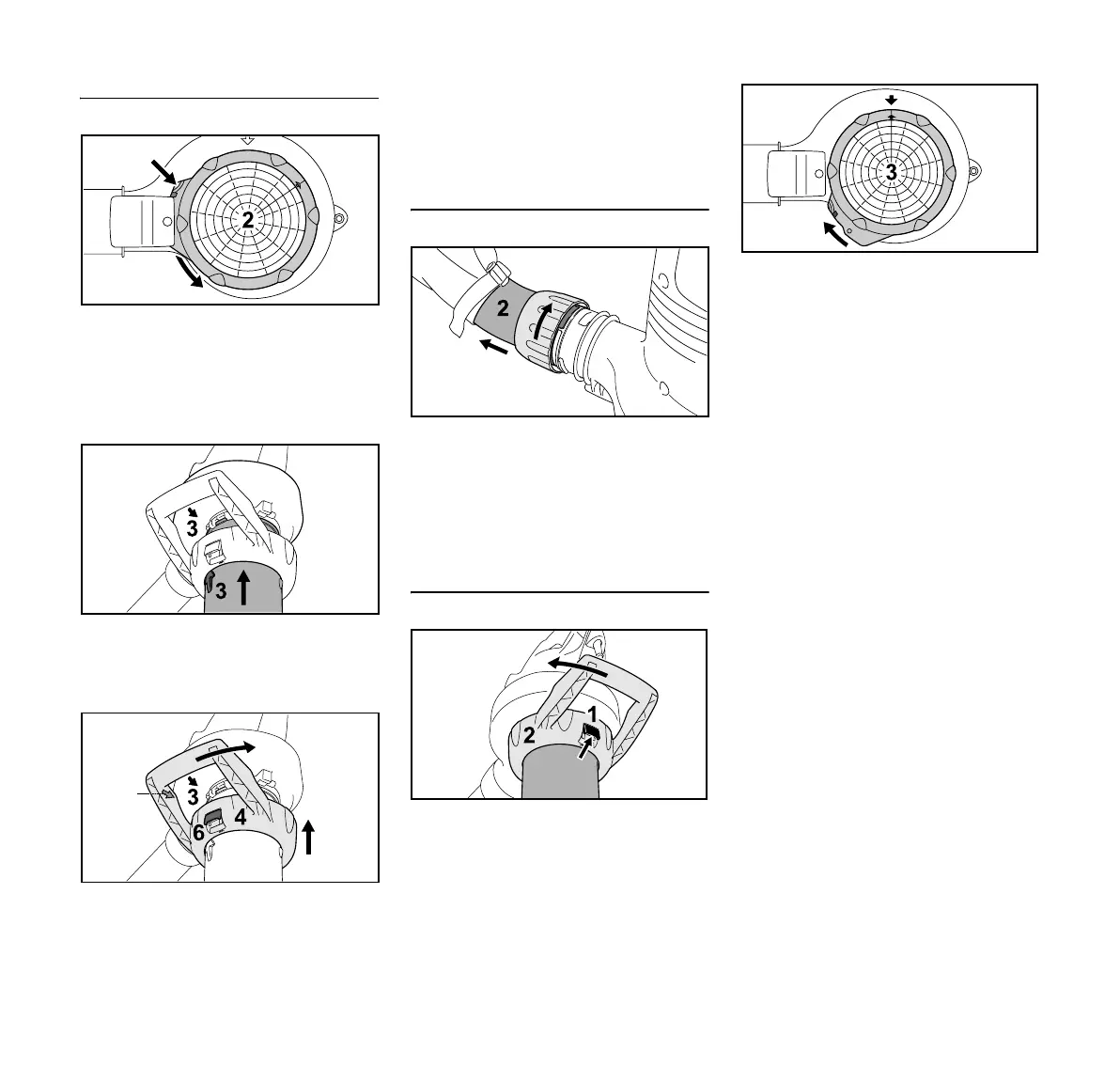

Mounting the Suction Tube
N Shut off the engine.
N Press tab (1) towards fan housing,
rotate intake screen (2) in direction
of arrow as far as the stop, and lift it
away.
N Line up the arrows (3).
N Push the suction tube into the intake
opening as far as the stop.
N Push the union nut (4) over the
intake opening.
N Line up the arrows (3 and 5).
N Rotate the union nut (4) in direction
of arrow until the lever (6) engages
audibly on the fan housing.
Removing the Elbow
N Shut off the engine.
N Rotate the union nut (1) in the
direction of the arrow as far as the
stop.
N Remove the elbow (2).
Removing the Suction Tube
N Switch offf the motor.
N Operate the lever (1), rotate the
union nut (2) in direction of arrow as
far as the stop and remove together
with the suction tube.
N Position the intake screen (3) on the
intake opening.
N Line up the arrows (4).
N Rotate the intake screen nut (3) in
direction of arrow until the lever (5)
engages audibly on the fan housing.
