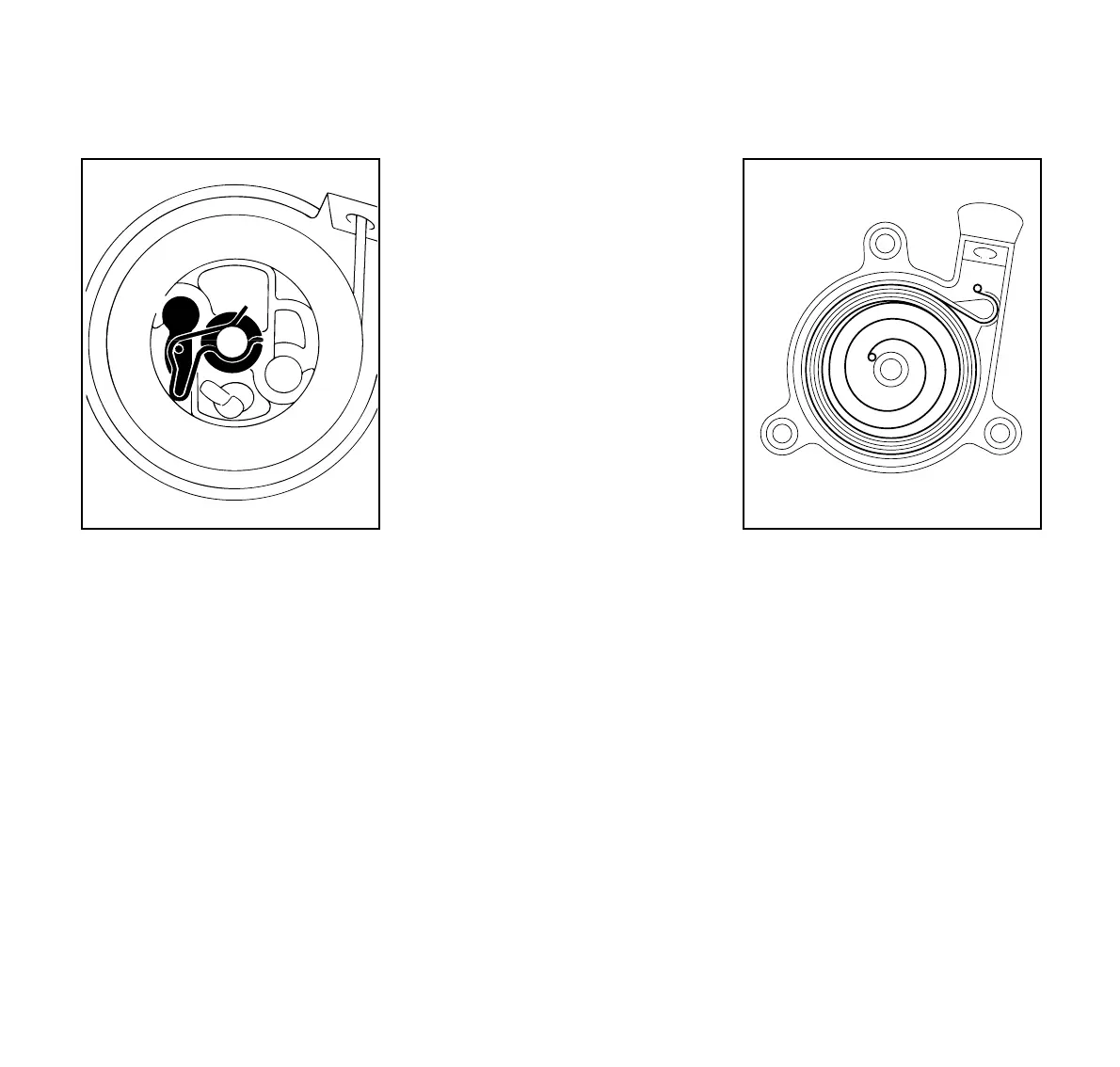

: Fit the pawl (5) in the rotor and slip
the washer (4) over the starter post.
: Use a screwdriver or suitable pliers
to install the spring clip (3) on starter
post and over the peg on the pawl –
the spring clip must point clockwise
– see illustration.
Go to “Tensioning rewind spring”.
Replacing a broken rewind spring
: Lubricate the new spring with a few
drops of non-resinous oil.
: Remove the rope rotor as described
in “Replacing the starter rope”.
: Remove parts of old spring.
: Fit new spring housing – bottom
plate must face downward. Engage
outer spring loop over the lug.
: Refit the rope rotor.
Go to “Tensioning rewind spring”.
If the spring pops out and uncoils
during installation: Refit it in the
spring housing in the counter-
clockwise direction – start outside
and work inward.
353BA034 KN
3
5
4
353BA029 KN
