BR 350, BR 430
English
11

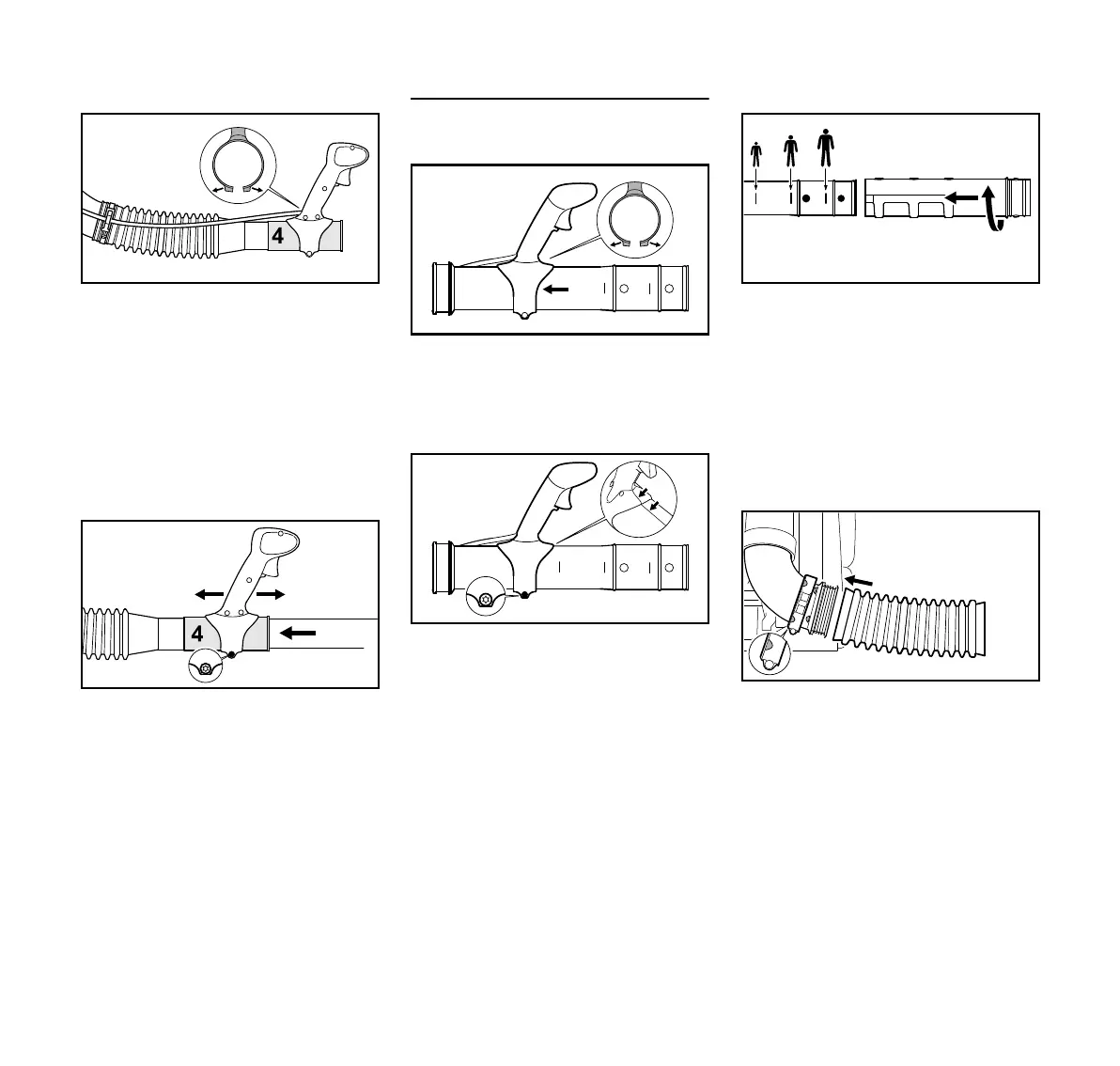

Mounting the control handle
N Pull the ends of the clamp on the
control handle (7) apart and push it
over stub of pleated hose (4).
N Attach throttle cable to retainer on
the hose clamp (3).
Adjusting the control handle
N Put the machine on your back and
adjust the harness – see "Fitting the
Harness".
N Push the blower tube (5) into the
stub of pleated hose (4) as far as
the stop.
N Move the control handle (7) along
the tube to the most comfortable
position.
N Tighten down the screw in the
control handle (7).
BR 430 Blower Tube
Mounting the control handle
N Pull the two halves of the clamp
apart.
N Push the control handle (1) onto the
blower tube (2).
N Line up the control handle (1) with
the tube's seam – as shown.
N Secure the control handle (1) with
the screw (3) so that it can still be
moved on the blower tube (2).
Mounting the blower tubes
N Depending on your size and reach:
Push blower tube (1) up to the
appropriate mark on the blower
tube (2).
N Rotate the blower tube (1) in the
direction of the arrow and engage it
in the appropriate slot (3).
Mounting the hose clamps and pleated
hose
N Push the hose clamp (1) (with
retainer for throttle cable) onto the
elbow (3) – the positioning marks
must face to the left.
N Push the pleated hose (2) over the
elbow (3).
