Stihl BR 500 - Mounting the Hose Clamps and Pleated Hose

BR 500, BR 550, BR 600
English
12

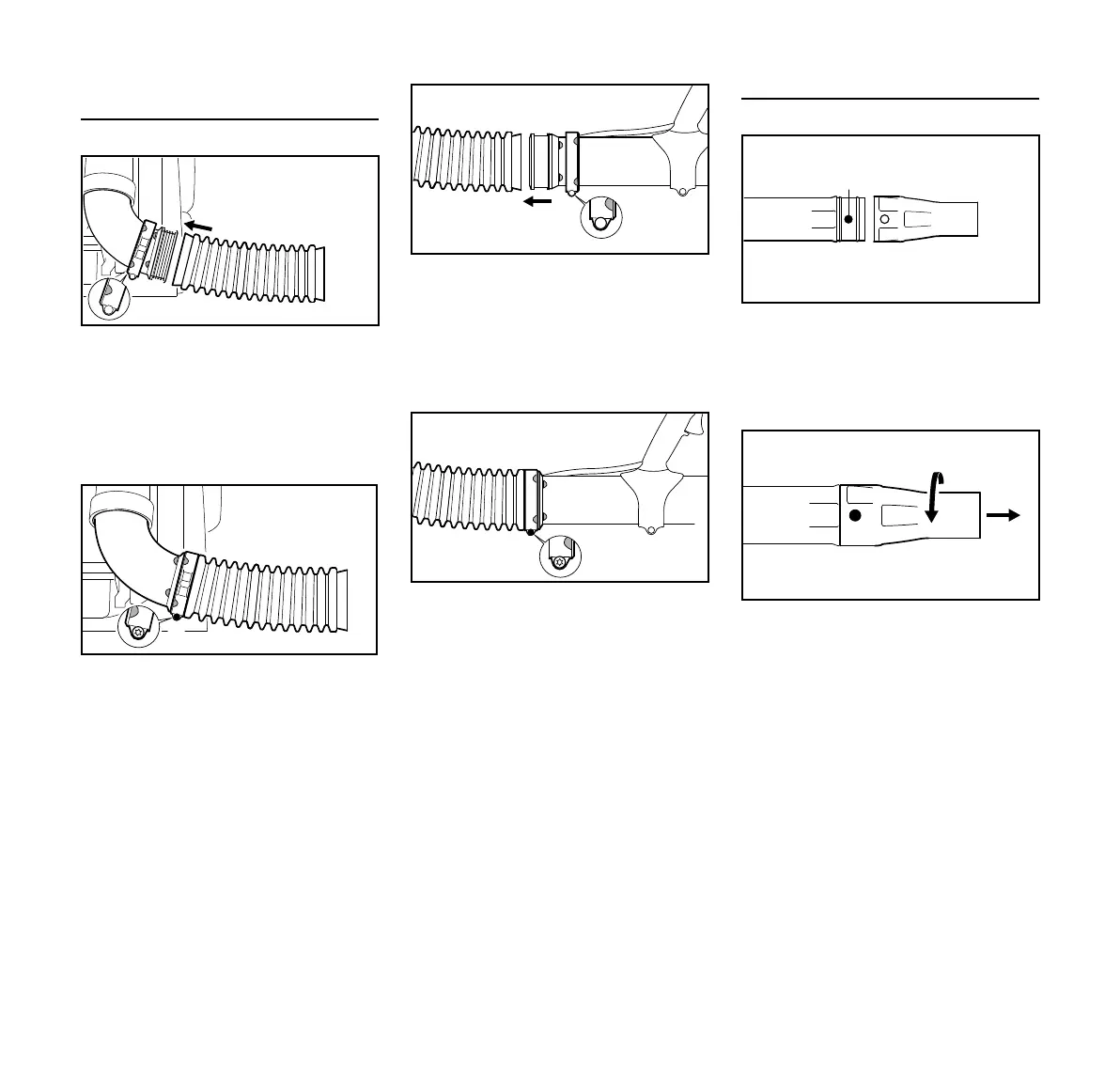

Mounting the Hose Clamps and Pleated
Hose
N Push the hose clamp (1) (with
retainer for throttle cable) onto the
elbow (3) – the positioning marks
must face to the left.
N Push the pleated hose (2) over the
elbow (3).
N Push the hose clamp (1) onto the
pleated hose (2).
N Line up the positioning marks on the
hose clamp (1) and elbow (3) – the
screw eye faces down.
N Secure the hose clamp (1) with the
screw (4).
N Push the hose clamp (5) (without
retainer for throttle cable) onto the
elbow (6) – the positioning marks
must face to the right.
N Push the blower tube (6) into the
pleated hose (2).
N Push the hose clamp (5) onto the
pleated hose (2).
N Line up the hose clamp (5) and
blower tube (6) – as shown.
N Secure the hose clamp (5) with the
screw (7).
Mounting the nozzle
N Push the nozzle (1) onto the blower
tube (2) and engage it on the
lugs (3).
Removing the Nozzle
N Rotate the nozzle (1) in the direction
of the arrow until the lugs (3) are
covered.
N Pull the nozzle (1) off the blower
tube (2).
2
1
452BA108 KN
3
452BA109 KN
2
1
4
3
2
452BA103 KN
5
6
2
5
452BA104 KN
6
7
3
1
2
452BA111 KN
3
1
2
452BA112 KN
