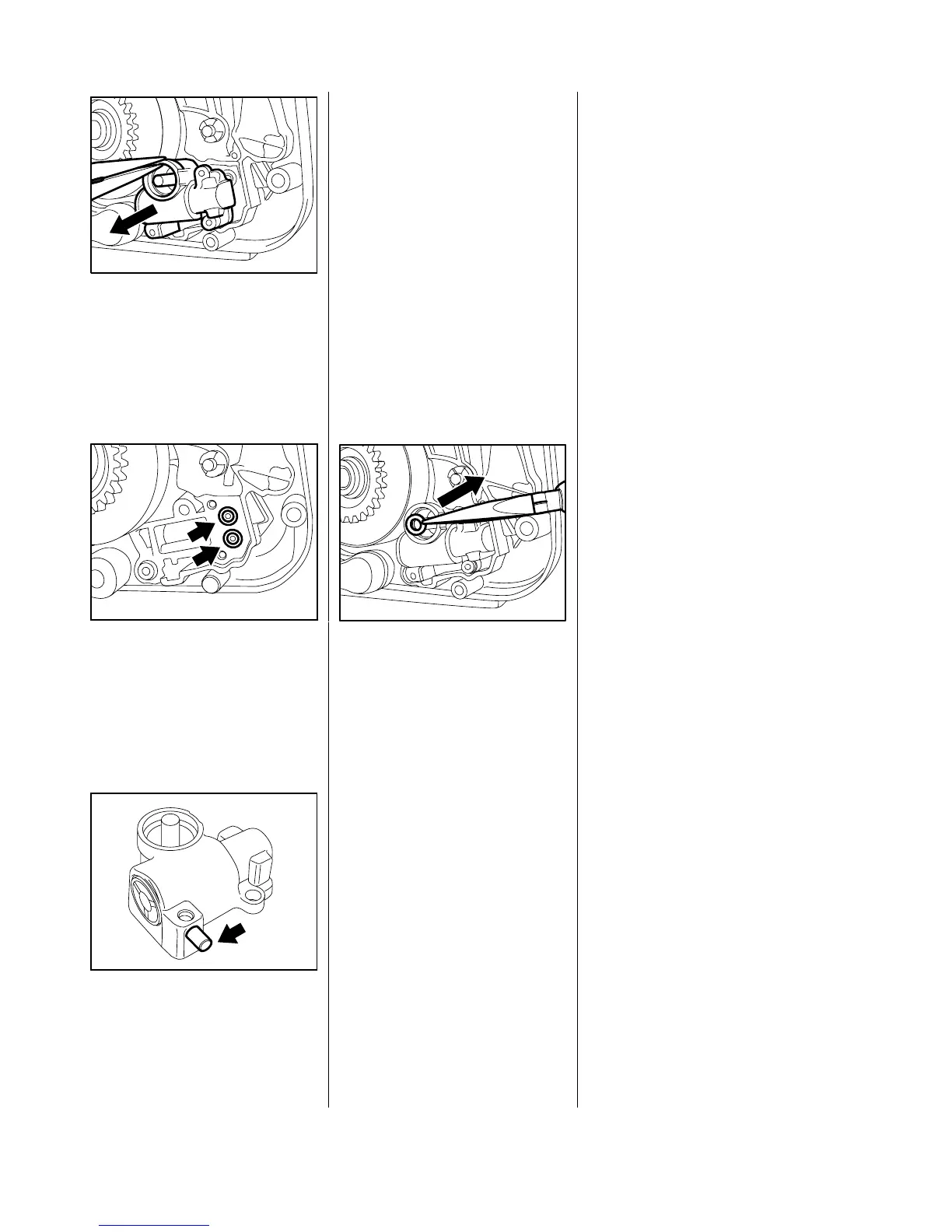

Pull oil pump out of housing.
Note: Make sure the pin does not
fall out of the oil pump.
•
Remove the O-rings.
Install in the reverse sequence.
•
If the pin has fallen out of the oil
pump, refit it with lubricating
grease - see 10.2.
-AlwaysusenewO-rings.
-Tightendownoilpumpmounting
screws to 2.5 Nm (1.8 lbf.ft).
•
Fit the washer in the oil pump.
100RA107
VA
100RA108
VA
100RA109
VA
100RA110
VA
22
