Stihl FCB-KM User Manual

FCB-KM
English
12

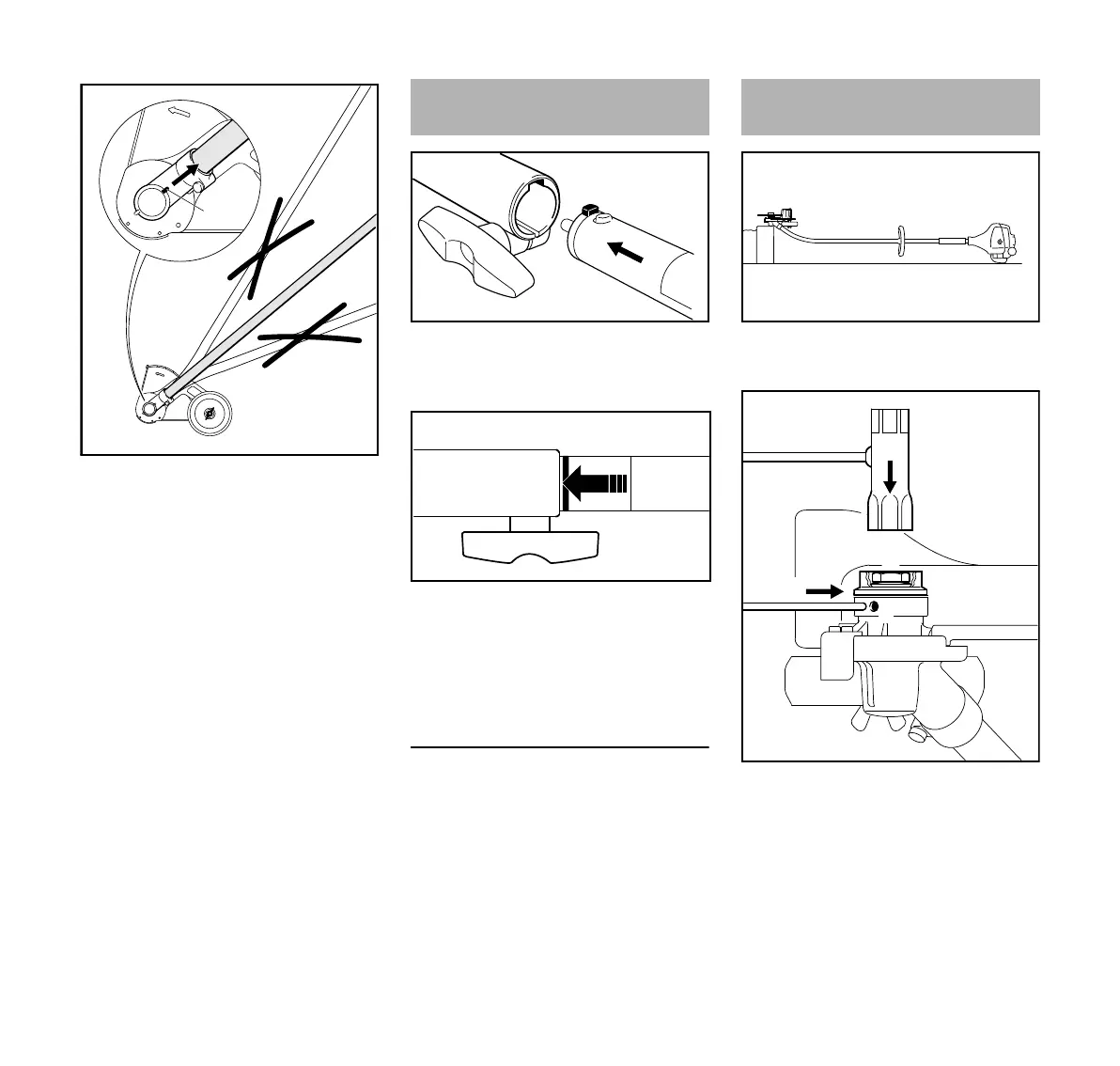

N Align the gearbox (2) on the shaft so
that the rib (4) is in line with the
shaft.
N Tighten the clamping screw firmly.
N Push the lug (1) on the drive tube
into the slot (2) in the coupling
sleeve as far as stop.
When correctly installed, the red line (3)
(arrow point) must be flush with the end
of the coupling sleeve.
N Tighten down the star knob (4)
firmly.
Removing the KombiTool
N Reverse the above sequence to
remove the drive tube.
N Place the edger so that the blade
mounting (1) faces upwards
N Insert the locking pin (2) as far as
possible into the bore (3), push
lightly and rotate back and forth a
little together with the thrust washer
(4) until the shaft is blocked.
N Fit Allen wrench (5) onto nut (6).
2
239BA019 KN
4
Mounting the KombiTool
1
002BA326 KN
2
3
002BA327 KN
4
Mounting the Cutting Blade
239BA020 KN
6
239BA021 KN
3
2
4
5
