Stihl FS 131 R User Manual

FS 131, FS 131 R
English
20

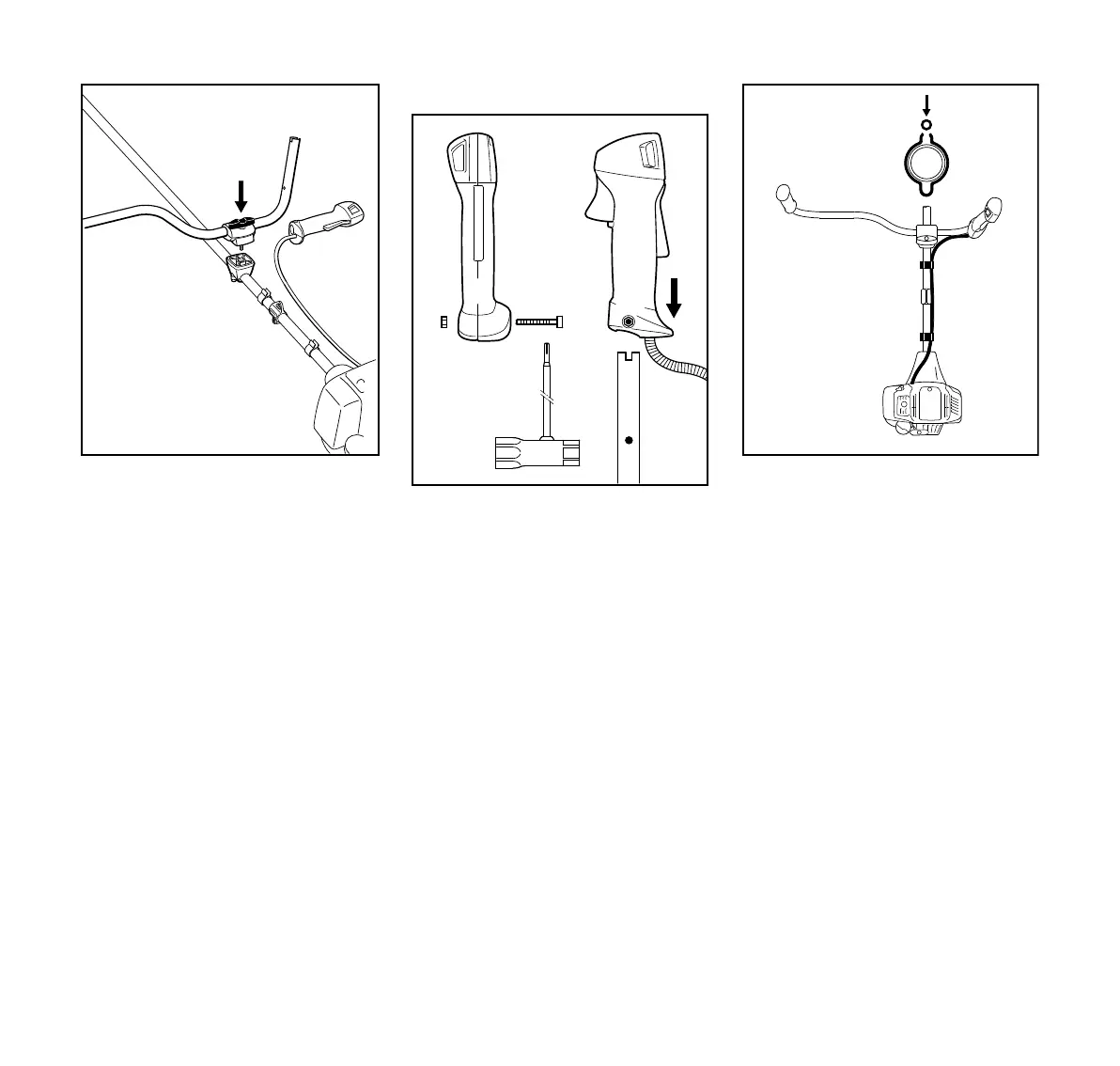

N Place the secured assembly on the
handle support (8) with the wing
screw at the side nearest the
engine.
N Push the wing screw into the handle
support as far as stop and then
screw it down – but do not finally
tighten yet.
N Line up the handlebar at a right
angle to the drive tube – check
distance A again.
N Tighten down the wing screw firmly.
Mounting the control handle
N Take out the screw (9) – the nut (10)
remains in the control handle (11).
N Push the control handle onto the
handlebar (7) until the holes (13)
line up – the throttle trigger (12)
must point towards the gearbox.
N Insert the screw (9) and tighten it
down firmly.
Fitting the Throttle Cable
NOTICE
Do not kink the throttle cable or lay it in
tight radii – make sure the throttle trigger
moves freely.
N Push the throttle cable (14) into the
retainers (15).
Adjusting the Throttle Cable
N Check adjustment of throttle cable –
see chapter on "Adjusting the
Throttle Cable".
0000-GXX-0510-A0
8
13
9
11
12
7
13
0000-GXX-0511-A0
10
14
15
0000-GXX-0512-A0
15
14
15

Stihl FS 131 R Specifications

General

Power source	Gasoline
Type	String trimmer
Cordless	Yes
Head type	Nylon line
Handle type	D-loop handle
Engine power	1.9 hp
Product color	Black, Metallic, Orange
Uncertainty K	2 m/s²
Rotational speed	8500 RPM
Number of strokes	4
Sound power level	109 dB
Fuel tank capacity	0.71 L
Vibration emission	4.1 m/s²
Engine displacement	36.3 cm³
Sound pressure level	98 dB
Cutting diameter (max)	- mm

Weight and Dimensions

Length	1800 mm
Weight	5500 g
