Stihl FS 131 R User Manual

FS 131, FS 131 R
English
30
The type and style of the
harness/shoulder strap depend on the
market.
The use of the shoulder strap is
described in the chapter on "Approved
Combinations of Cutting Attachment,
Deflector, Handle and Harness".

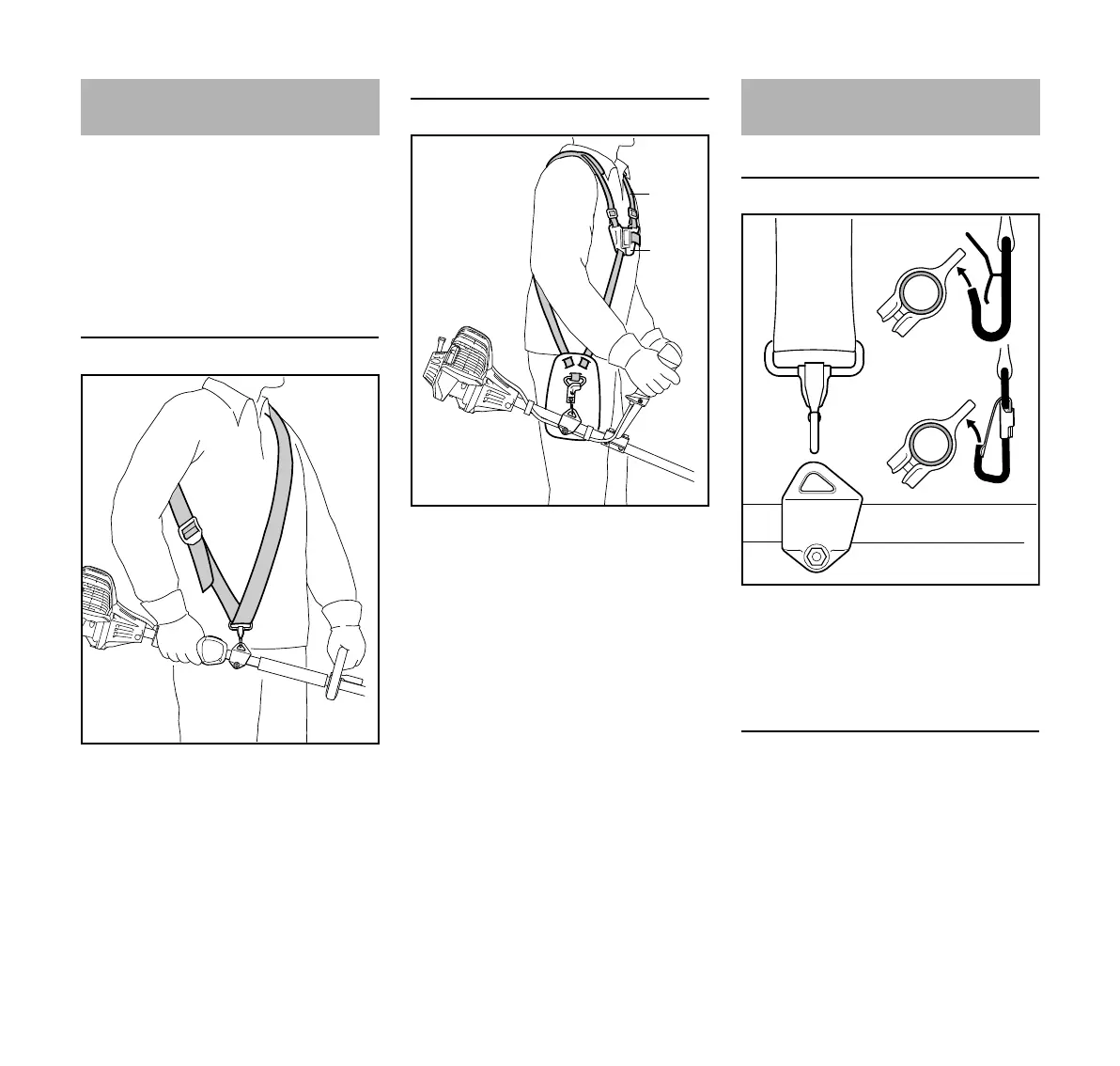

Shoulder Strap
N Put on the shoulder strap (1).
N Adjust the length of the strap so that
the carabiner (2) is about a hand’s
width below your right hip.
N Balance the machine – see
"Balancing the Machine".
Full Harness
N Put on the harness (1) and close the
locking plate (3).
N Adjust the length of the strap – with
the machine attached, the
carabiner (2) must be about a
hand's width below your right hip.
N Balance the machine – see
"Balancing the Machine".
Attaching Machine to Harness
The type and style of the shoulder strap
and carabiner depend on the market.
N Attach the carabiner (1) to the
carrying ring (2) on the drive tube.
Balancing the Machine
The unit is balanced differently
depending on the cutting attachment
used.
Proceed as follows until the conditions
specified under "Floating positions"
have been met:
Fitting the Harness
1
0000-GXX-0503-A0
2
3
0000-GXX-0504-A0
2
1
Balancing the Machine
1
002BA660 KN
2
1
1
2
2

Stihl FS 131 R Specifications

General

Power source	Gasoline
Type	String trimmer
Cordless	Yes
Head type	Nylon line
Handle type	D-loop handle
Engine power	1.9 hp
Product color	Black, Metallic, Orange
Uncertainty K	2 m/s²
Rotational speed	8500 RPM
Number of strokes	4
Sound power level	109 dB
Fuel tank capacity	0.71 L
Vibration emission	4.1 m/s²
Engine displacement	36.3 cm³
Sound pressure level	98 dB
Cutting diameter (max)	- mm

Weight and Dimensions

Length	1800 mm
Weight	5500 g
