FS 310
English
24
NOTICE
Remove the tool used to block the shaft.
Removing the Cutting Attachment
N Block the shaft.
N Unscrew the mounting nut
clockwise.
N Pull the cutting attachment with its
mounting hardware off the
gearhead.
Circular Saw Blades 200 and 225
Aligning the cutting attachment
Cutting edges of circular saw blades
must point clockwise.

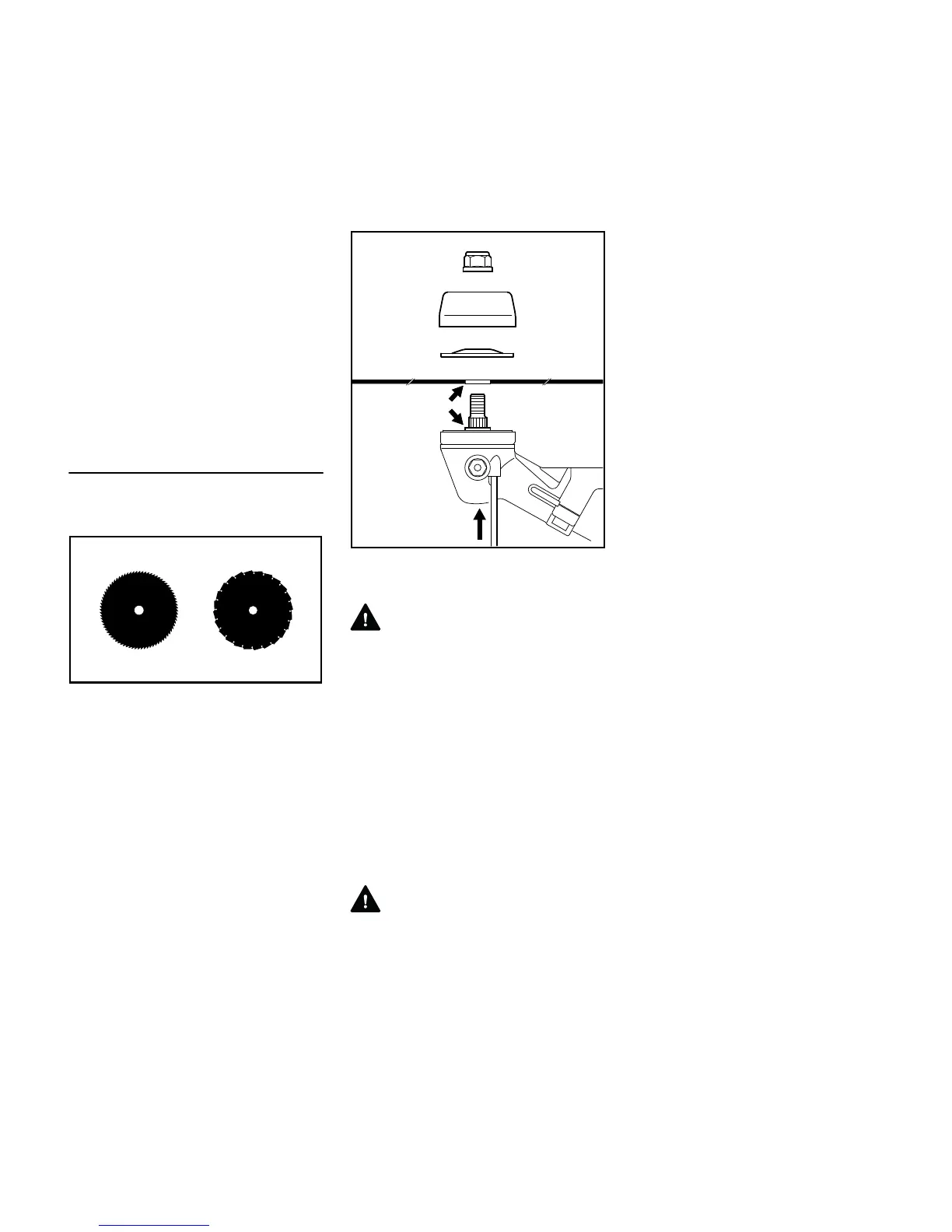

Mounting the cutting attachment
N Fit the guard ring for sawing
applications.
N Place the cutting attachment (1) in
position.
WARNING
Collar (a) must locate in the cutting
attachment's mounting hole (b).
Securing the cutting attachment
N Fit the thrust washer (2) – convex
side must face up.
N Fit the rider plate (3) (for sawing
applications).
N Block the shaft.
N Screw on the nut (4)
counterclockwise and tighten it
down firmly.
WARNING
If the mounting nut has become too
loose, fit a new one.
NOTICE
Remove the tool used to block the shaft.
Removing the Cutting Attachment
N Block the shaft.
N Unscrew the mounting nut
clockwise.
N Pull the cutting attachment with its
mounting hardware off the
gearhead.
