FS 310
English
23

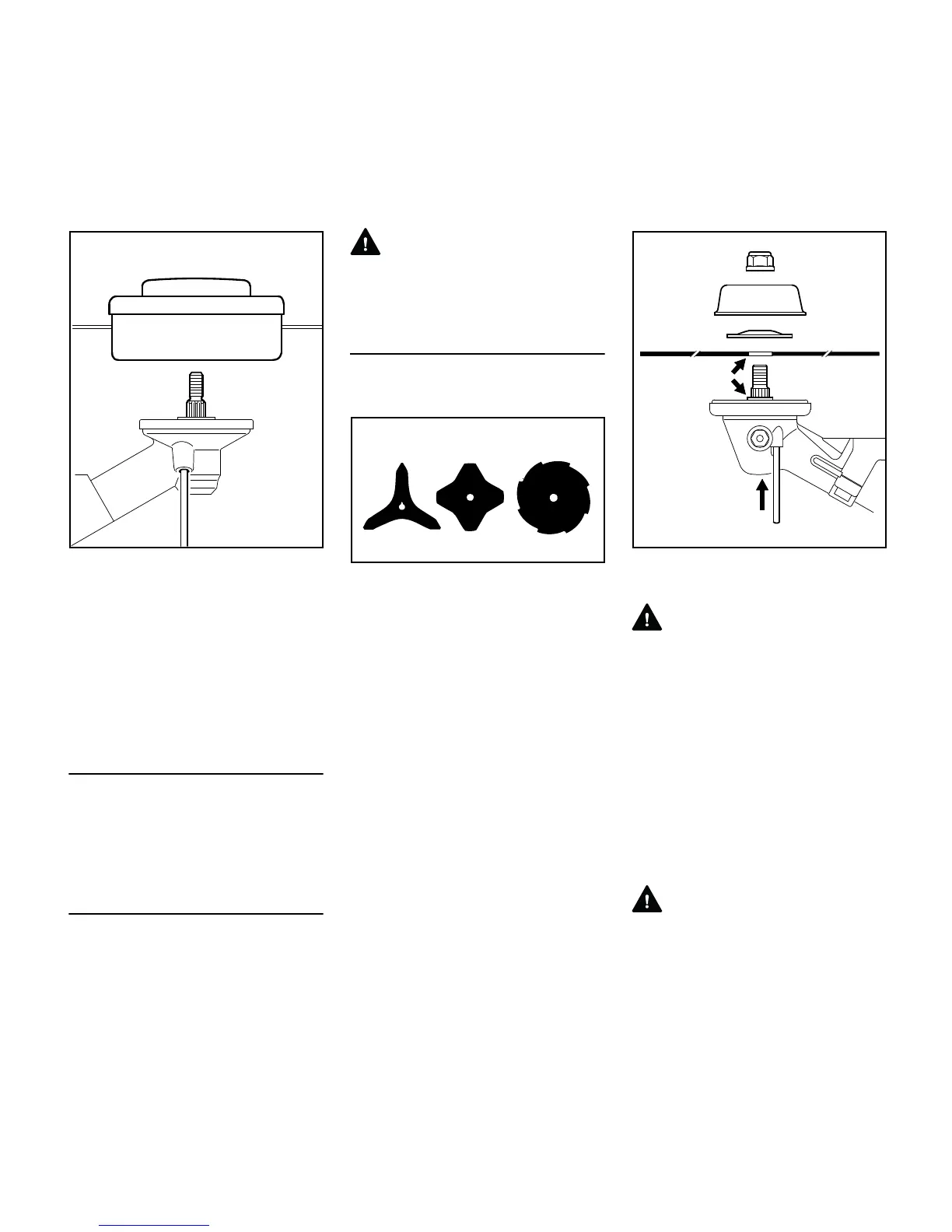

N Screw the mowing head
counterclockwise on to the shaft (1)
as far as stop.
N Block the shaft.
N Tighten down the mowing head
firmly.
NOTICE
Remove the tool used to block the shaft.
Removing the Mowing Head
N Block the shaft.
N Unscrew the mowing head
clockwise.
Removing and Installing Metal Cutting
Attachments
Before removing and installing metal
cutting attachments:
WARNING
Wear protective gloves to reduce the
risk of direct contact with the sharp
cutting edges.
Grass Cutting Blades, Brush Knives
Aligning the cutting attachment
Cutting attachments with 3 or
4 blades (1, 2) may point in either
direction – these cutting attachments
must be turned over regularly to help
avoid one-sided wear.
Cutting edges of grass cutting blade (3)
must point clockwise.
Mounting the cutting attachment
N Fit the guard ring for mowing
applications.
N Place the cutting attachment (1) in
position.
WARNING
Collar (a) must locate in the cutting
attachment's mounting hole (b).
Securing the cutting attachment
N Fit the thrust washer (2) – convex
side must face up.
N Fit the rider plate (3) (for mowing
applications).
N Block the shaft.
N Screw on the nut (4)
counterclockwise and tighten it
down firmly.
WARNING
If the mounting nut has become too
loose, fit a new one.
1
002BA385 KN
681BA134 KN
1
2 3
002BA521 KN
b
2
3
1
4
a
