Mounting Hardware for Cutting
Attachments
The mounting hardware supplied
depends on the cutting attachment that
comes as original equipment with the
new machine.
If mounting hardware is not packed with
machine
Only mowing heads may be used which
mount directly to the shaft (2).
If mounting hardware is packed with
machine
Mowing heads and metal cutting tools
may be mounted.

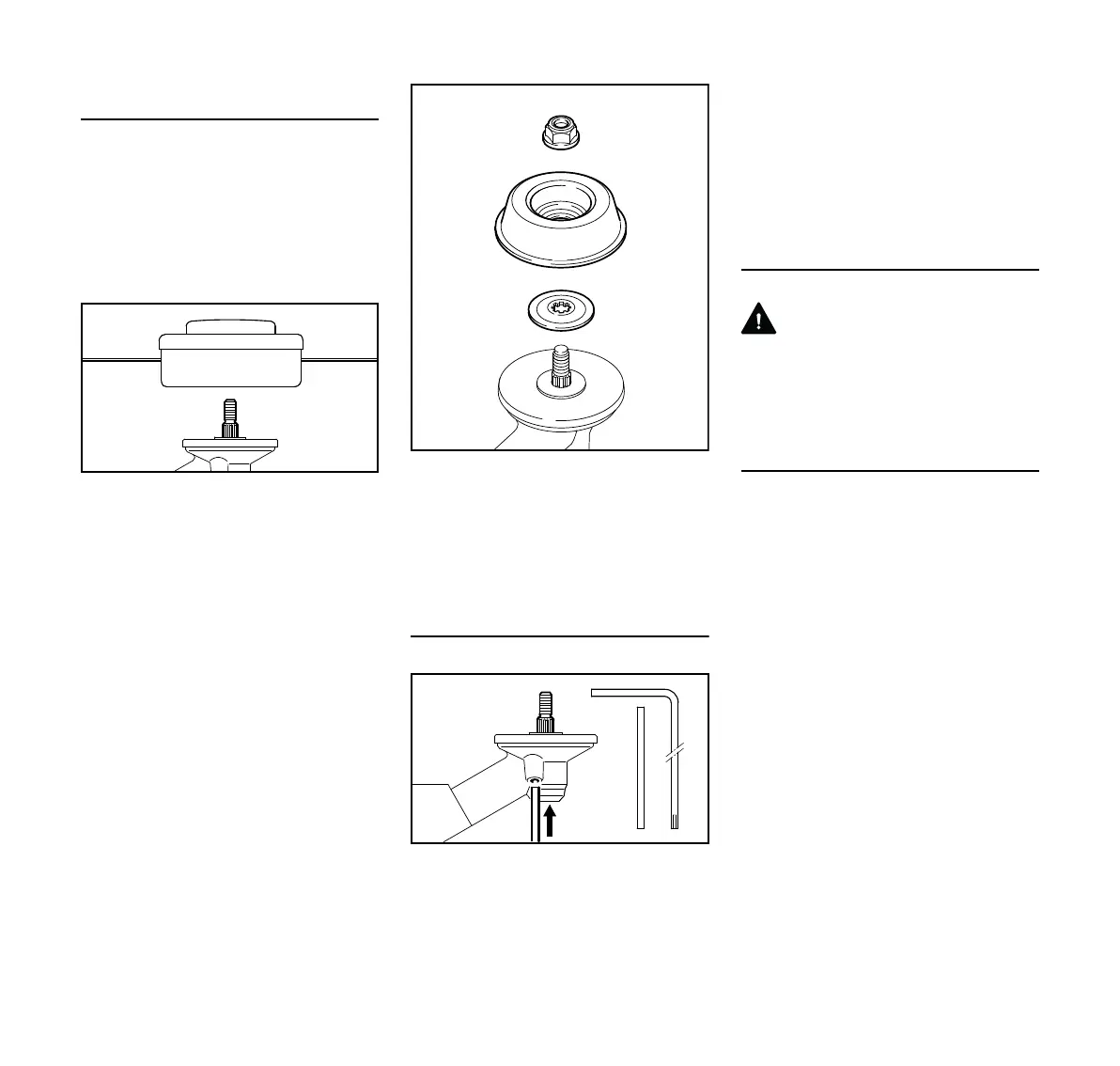

The nut (3), rider plate (4) and thrust
washer (5) are required to secure some
mowing heads.
These parts are included in a kit
supplied with the machine and are also
available as special accessories.
Block the shaft.
The output shaft (2) must be blocked
with the stop pin (7) or screwdriver (7) to
mount or remove cutting tools. These
parts come standard with the machine or
are available as special accessories.
N Insert the stop pin (7) or offset
screwdriver (7) in the hole (8) in the
gearbox as far as stop – and apply
slight pressure.
N Rotate shaft or cutting attachment
until the stop pin slips into position
and blocks the shaft.
Mounting the Cutting Attachment
WARNING
Use a deflector that matches the cutting
attachment – see "Mounting the
Deflector".
Fitting the mowing head with screw
mounting
Keep the supplement sheet for the
mowing head in a safe place.
2
002BA266 KN
002BA267 KN
3
4
5
7
8
2
002BA166 KN
7
