Stihl FS 560 C User Manual

FS 510 C, FS 560 C
English
25

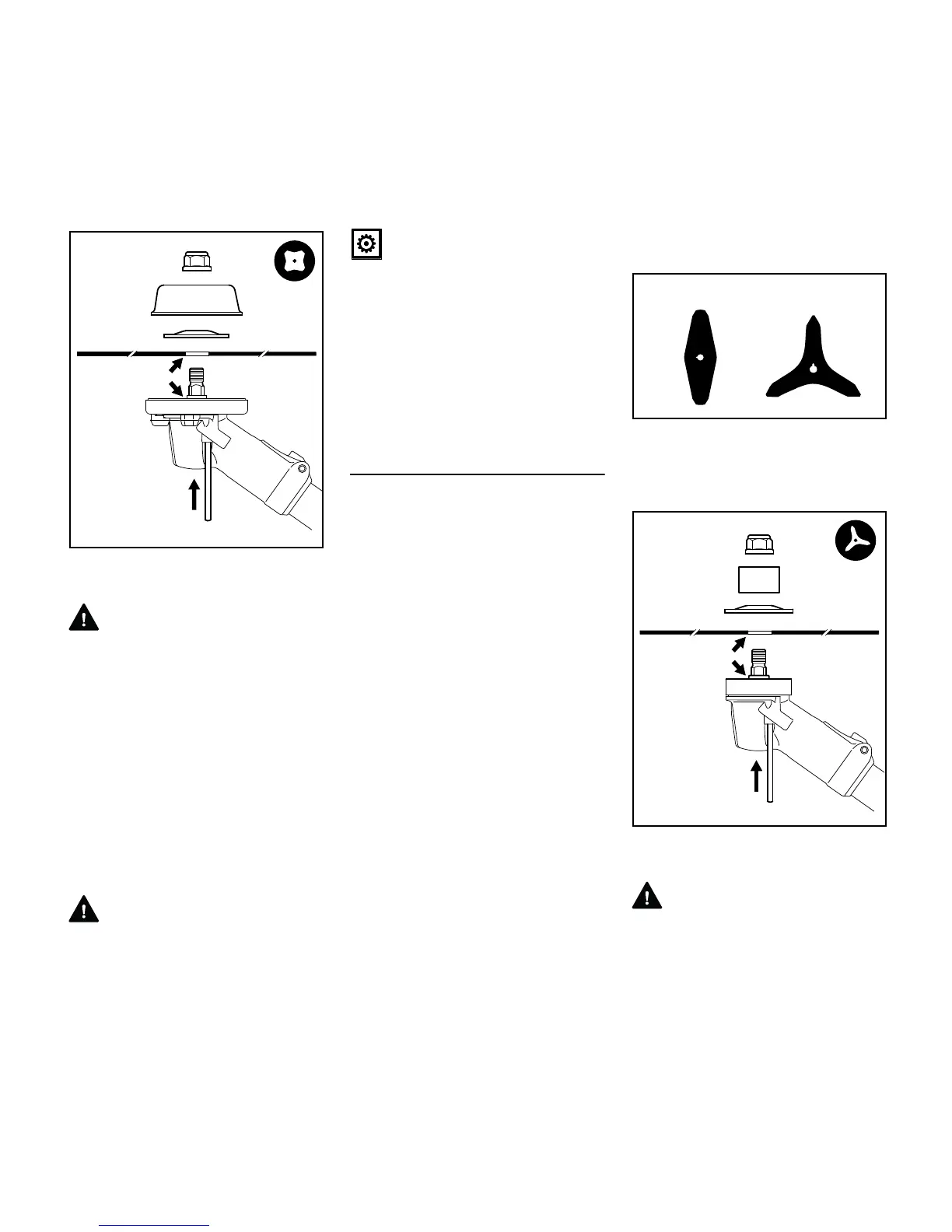

N Place the cutting attachment (3) in
position.
WARNING
Collar (a) must locate in the cutting
attachment's mounting hole (b).
Securing the cutting attachment
N Fit the 60 mm (2.4 in) diameter
thrust washer (4) – convex side
must face up.
N Fit the 80 mm (3.2 in) diameter (A)
rider plate (5).
N Block the shaft.
N Screw on the nut (6)
counterclockwise and tighten it
down firmly.
WARNING
If the mounting nut has become too
loose, fit a new one.
NOTICE
Remove the tool used to block the shaft.
Removing the Cutting Attachment
N Block the shaft.
N Unscrew the mounting nut (6)
clockwise.
N Pull the cutting attachment with its
mounting hardware off the
gearhead.
Mounting Brush Knives
N Check that the deflector on the
machine is approved for brush
knives – if not, perform the next two
steps.
N Remove grass shield with thrust
plate – if fitted.
N Remove the non-approved
deflector.
N Mount deflector for grass cutting
blades and brush knives.
N Fit the 65 mm (2.6 in) diameter
thrust plate.
Check direction of rotation of cutting
attachment
Brush knives 305-2 (1) and 350-3(2)
may point in either direction – these
cutting attachments must be turned over
regularly to help avoid one-sided wear.
N Place the cutting attachment (3) in
position.
WARNING
Collar (a) must locate in the cutting
attachment's mounting hole (b).
a
002BA469 KN
b
4
5
3
6
1
2
681BA187 KN
3
002BA494 KN
3
6
4
b
a
5
