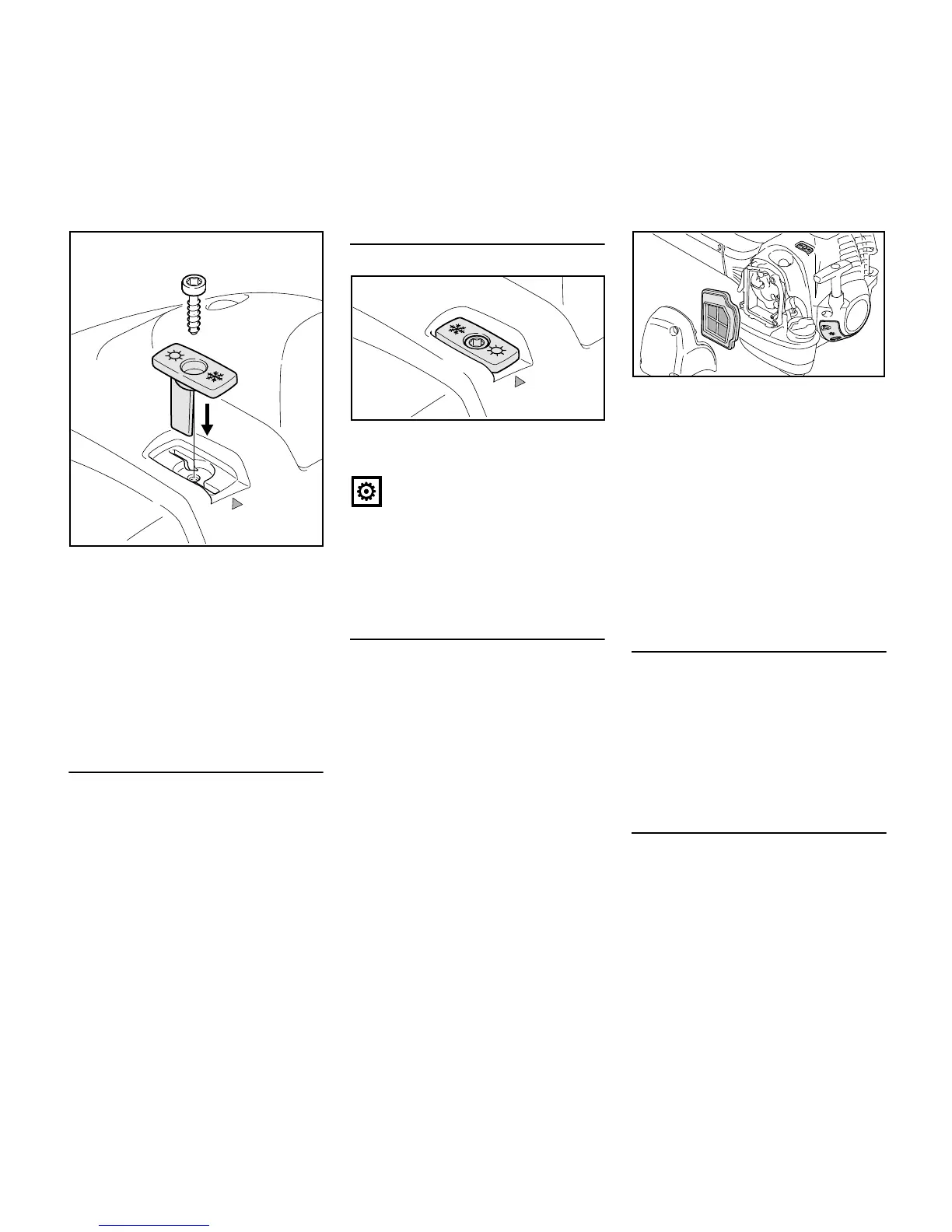

N Remove the screw (3) from the
shutter.
N Pull the shutter (2) out of the shroud.
N Rotate the shutter (2) from the
summer position to the winter
position and refit it.
N Secure the shutter in position with
the screw (3).
At temperatures between +10°C and
+20°C
The machine can normally be operated
in this temperature range with the
shutter (2) in the summer position.
Change the position of the shutter if
necessary.
At temperatures above +20°C
N Always return the shutter (2) to the
summer position.
NOTICE
Do not operate the machine in the winter
position at temperatures above +20°C
because there is otherwise a risk of
engine running problems and
overheating.
At temperatures below -10°C
In extreme wintry conditions
– Temperatures below -10°C
– Powder or drifting snow
it is advisable to use the optional "cover
plate kit".
The cover plate kit contains the following
parts for converting the power tool:
4 Cover plate partially blanks off the
slots in the starter housing
5 Synthetic fabric filter element for the
air filter
– Instructions for converting the
machine
After installing the cover plate kit:
N Set the shutter (2) to the winter
position.
At temperatures above -10 °C
N Remove the parts of the cover plate
kit and refit the standard parts for
summer operation.
Depending on the ambient temperature:
N Set the shutter (2) to the summer or
winter position.
Cleaning the Air Filter
N Loosen filter cover mounting
screws.
N Remove the filter cover.
N Clean away loose dirt from around
the filter (5) and inside the filter
cover.
2
9926BA017 KN
3
2
9926BA018 KN
4900BA021 KN
4
2
5
