Stihl FS 75 - Mowing Head Assembly and Line Adjustment; Mounting PolyCut Heads and Adjusting Line

17FS 75
English / USA

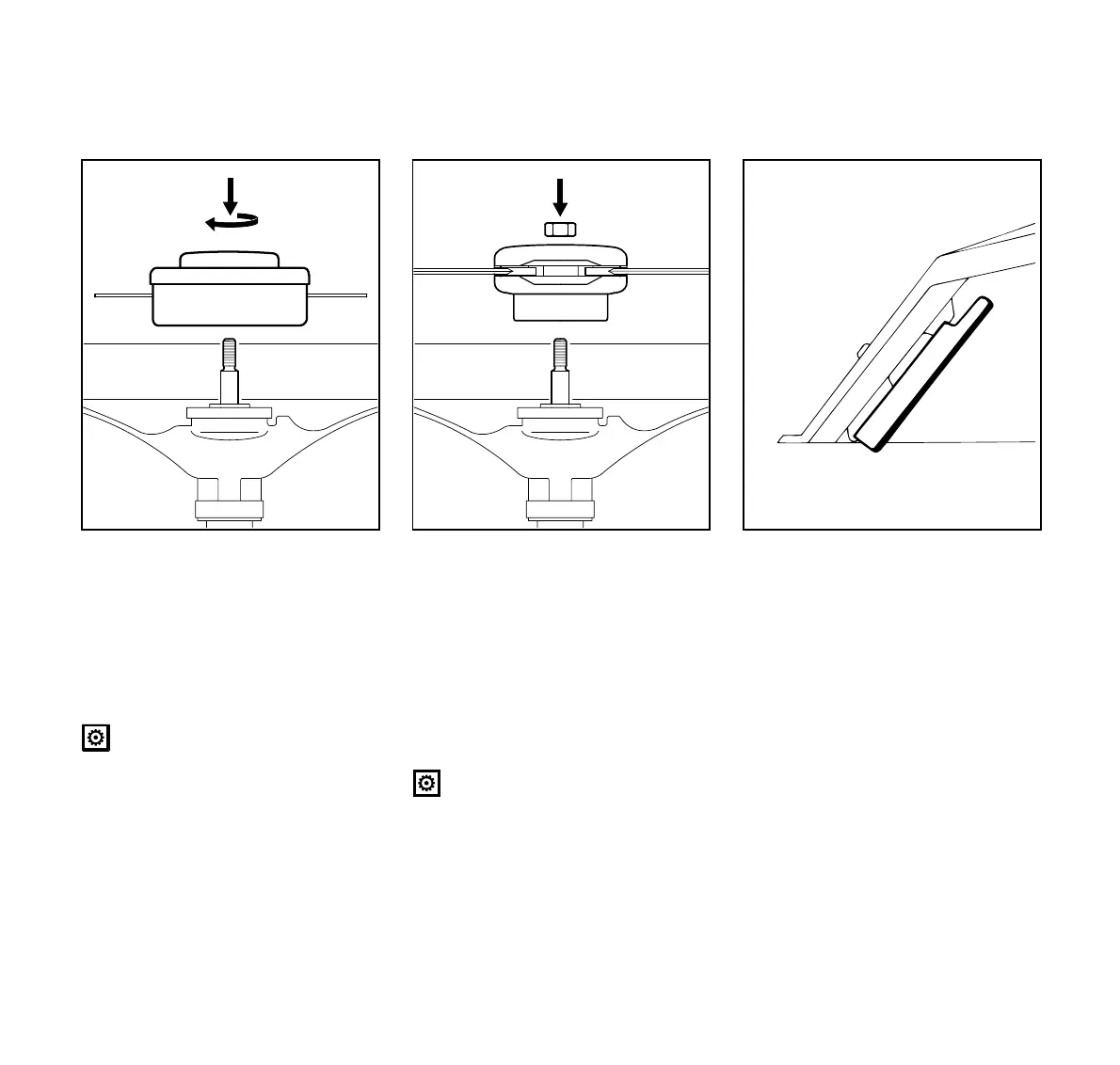

STIHL PolyCut 10-3
: Screw the mowing head (7)
clockwise onto the shaft (3) as far
as stop.
: Use stop pin to block the shaft.
: Tighten down the mowing head
firmly.
Remove the stop pin.
STIHL PolyCut 5-3
: Place the nut (8) in the mowing
head.
: Screw the mowing head (7)
clockwise onto the shaft (3) as far
as stop.
: Use stop pin to block the shaft.
: Tighten down the mowing head
firmly.
Remove the stop pin.
Adjusting Nylon Line
STIHL AutoCut 11-2
: Hold the rotating mowing head
horizontal to the ground – tap it on
the ground – about 3 cm (1 1/4")
fresh line is advanced.
: The blade (1) on the deflector (2)
trims surplus line to the correct
length. Avoid tapping the head more
than once.
3
7
681BA016 KN
3
7
8
681BA017 KN
342BA024 KN
1
2
