Stihl FS 91 R User Manual

FS 91, FS 91 R
English
22

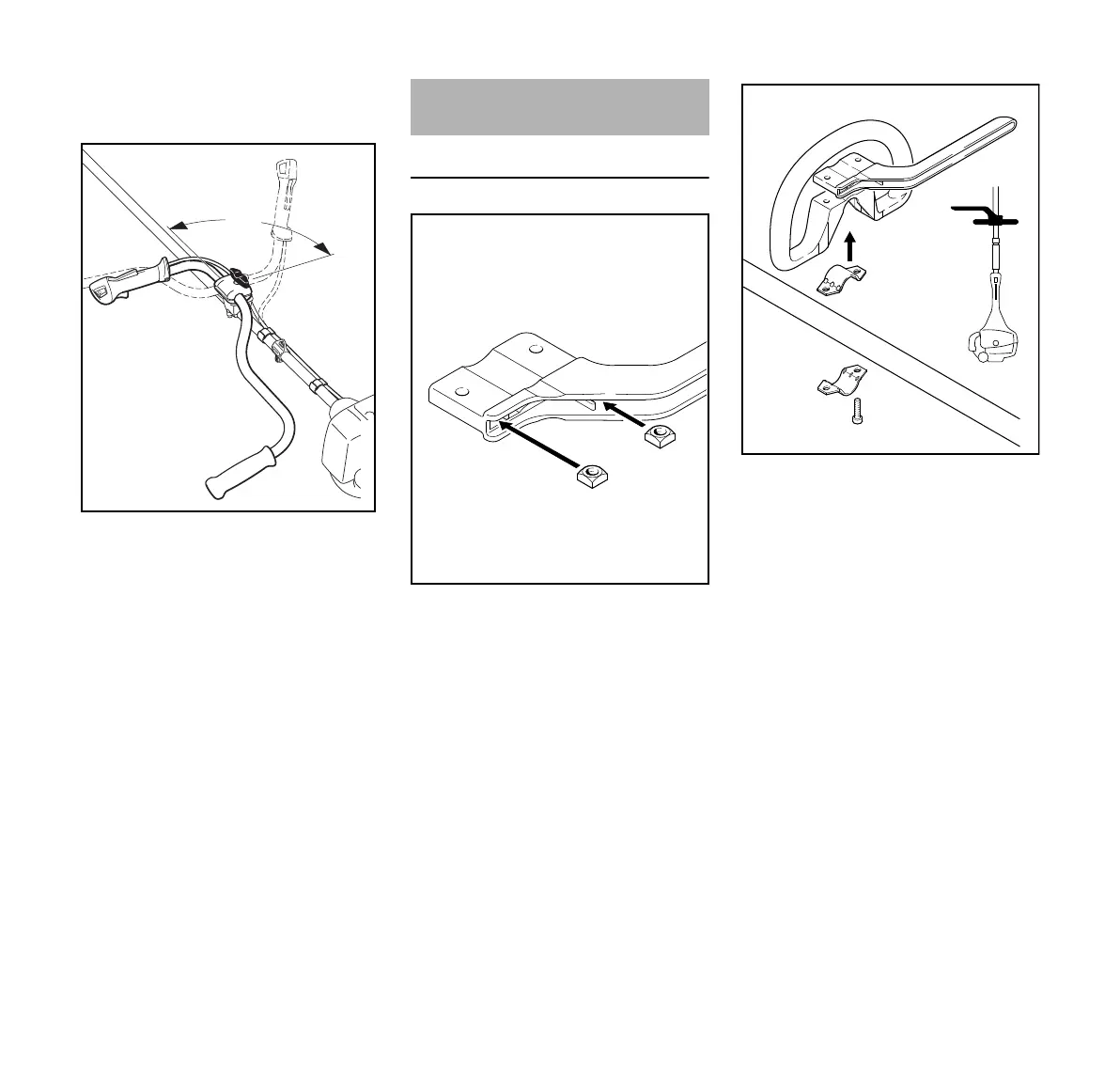

Swiveling the Handlebar
Transport position
N Loosen the wing screw (3) and
unscrew it until the handlebar (7)
can be rotated.
N Rotate the handlebar 90°
counterclockwise and then swing
the handles down.
N Tighten down the wing screw (3)
firmly.
Working position
N Reverse the sequence described
above to swing the handles up and
turn the handlebar clockwise.
Mounting Loop Handle with Barrier Bar
N Fit the square nuts (1) in the barrier
bar (2); the holes must line up.
N Place the clamp (3) in the loop
handle (4) and position them both
against the drive tube (5).
N Position the clamp (6) against the
drive tube.
N Place the barrier bar (2) in position
as shown.
N Line up the holes.
N Insert the screws (7) in the holes
and screw them into the barrier
bar (2) as far as stop.
N Go to "Securing the Loop Handle".
3
7
90°
0000-GXX-0513-A1
Mounting the Loop Handle
2
002BA098 KN
1
1
5
4
002BA099 KN
2
3
6
7

Stihl FS 91 R Specifications

General

Type	String trimmer
Cordless	Yes
Head type	Nylon line
Handle type	D-loop handle
Engine power	1.3 hp
Product color	Black, Metallic, Orange
Uncertainty K	2 m/s²
Rotational speed	8000 RPM
Number of strokes	4
Sound power level	107 dB
Fuel tank capacity	0.71 L
Vibration emission	3.7 m/s²
Engine displacement	28.4 cm³
Sound pressure level	96 dB
Cutting diameter (max)	- mm
Power source	Gasoline

Weight and Dimensions

Length	1800 mm
Weight	5500 g
