7.2 Installing the chassis and ejection
chute

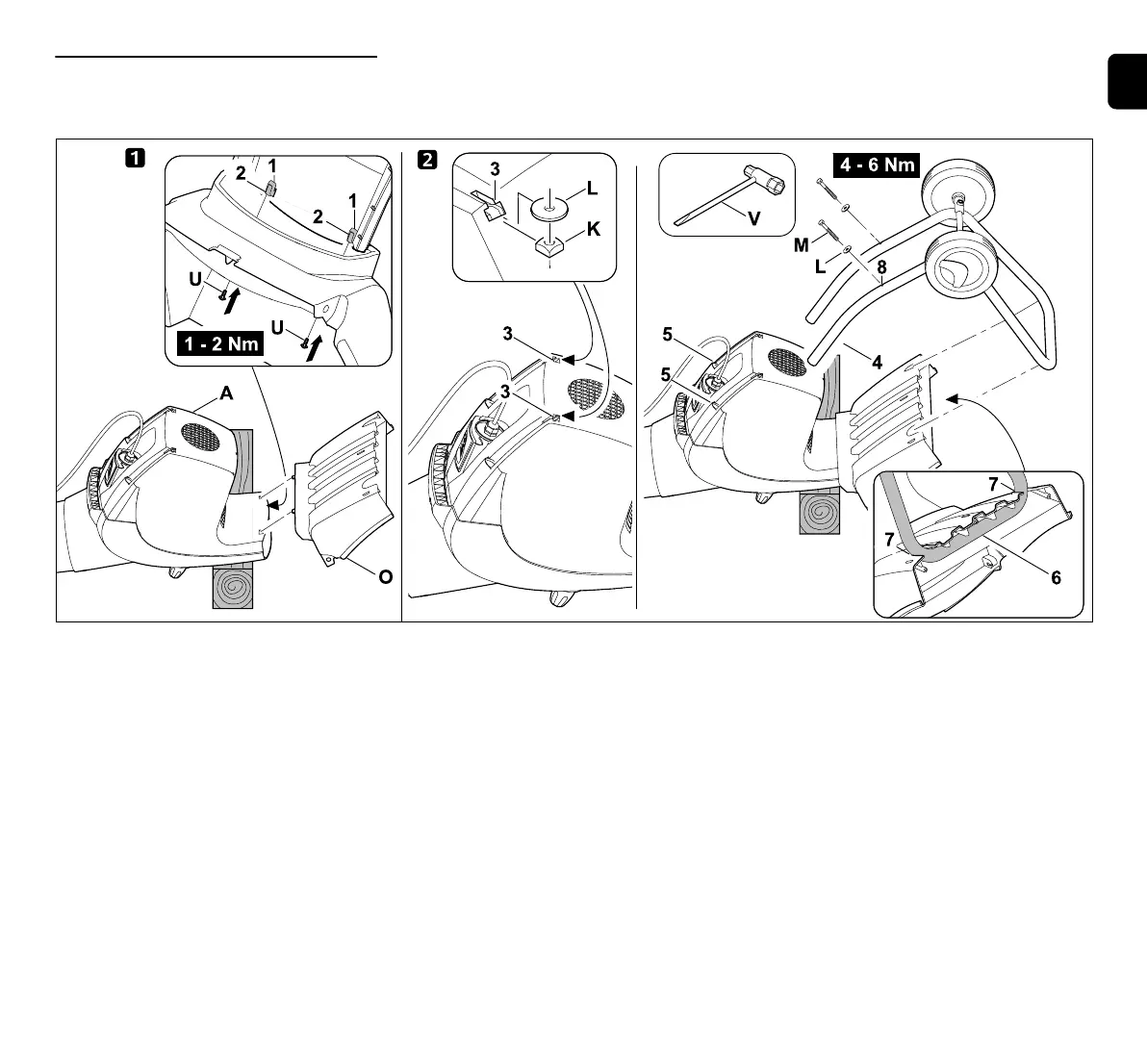

1 Install the ejection chute extension
● Place basic unit (A) onto a block of
wood with a height of approx. 15-
20 cm.
● Engage hooks (1) of ejection chute
extension (O) into openings (2) on the
rear of basic unit (A) and turn the
extension downwards so that the front
part of the basic unit is precisely
inserted in the opening of the ejection
chute extension.
● Fasten screws (U) in the lugs of
hooks (1) (1 - 2Nm).
2 Attach the chassis
● Press square nuts (K) and washers (L)
in the recesses provided on the basic
unit (3).
● Push the chassis with both wheel
carriers (4) up to the stop in the guides
on the basic unit (5).
● Push bent section of wheel carrier (6)
into the recess on the ejection chute
extension (7).
● Insert the screws (M) with washers (L)
the openings in the wheel carriers (8)
and fasten using combination
spanner (V) (4 - 6Nm).
