The muffler is equipped with a spark
arresting screen.
N If the engine is down on power,
check the spark arresting screen in
the muffler.
N Wait for the muffler to cool down.
N Move the slide control to STOP
-
0.
N Take out the screw (1).
N Take out the screws (2) and remove
the shroud (3).
N Take out the screw (4).
N Lift the spark arresting screen (5)
and pull it out.
N Clean the spark arresting screen. If
the screen is damaged or heavily
carbonized, fit a new one.
N Refit the spark arresting screen.
N Insert screw and tighten it down
firmly.
N Install the shroud.
Wrong fuel mix (too much engine oil in
the gasoline), a dirty air filter and
unfavorable running conditions (mostly
at part throttle etc.) affect the condition
of the spark plug. These factors cause
deposits to form on the insulator nose
which may result in trouble in operation.
If engine is down on power, difficult to
start or runs poorly at idling speed, first
check the spark plug.
N Remove spark plug – see "Starting /
Stopping the Engine".
N Clean dirty spark plug.
N Check electrode gap (A) and
readjust if necessary – see
"Specifications".
N Use only resistor type spark plugs of
the approved range.
Rectify problems which have caused
fouling of spark plug:
N Too much oil in fuel mix.
N Dirty air filter.
N Unfavorable running conditions,
e.g. operating at part load.

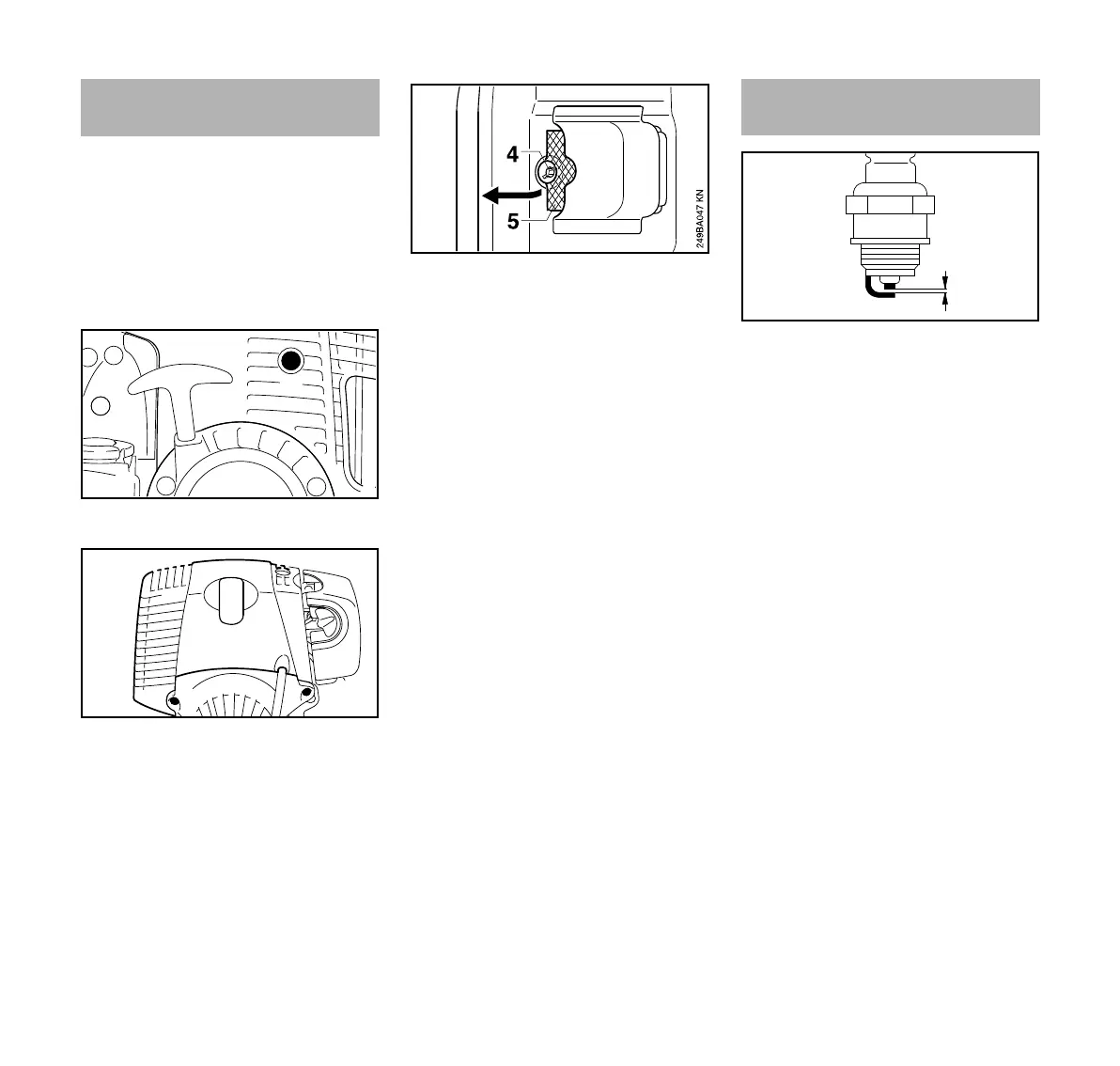

Spark Arresting Screen in
Muffler
249BA059 KN
1
2
3
2
249BA060 KN
Checking the Spark Plug
000BA039 KN
A
