Horizontal Cut (with straight cutter bar)

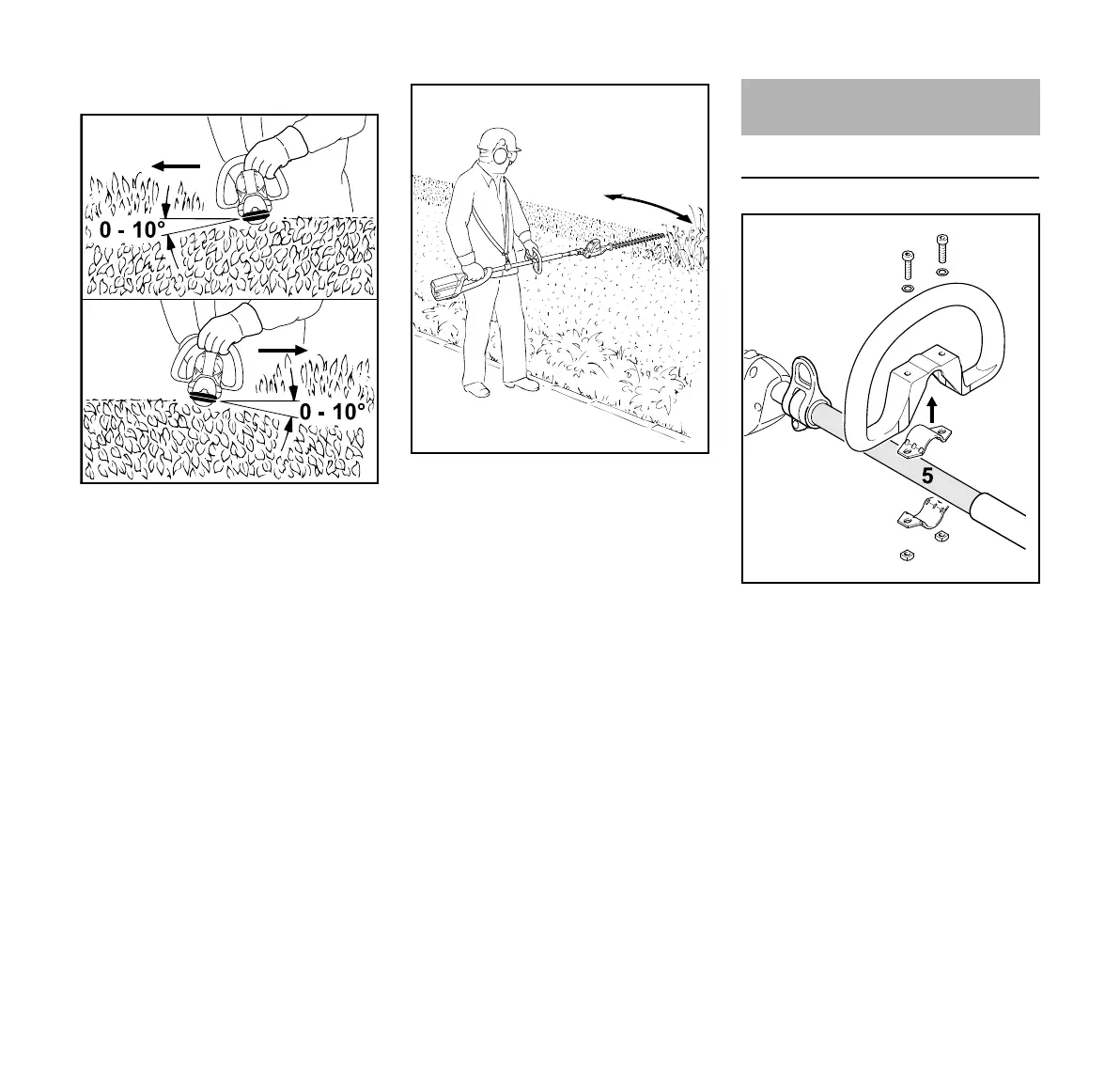

Hold the cutter bar at an angle of 0° to
10° as you swing the hedge trimmer
horizontally.
Swing the cutter bar in an arc towards
the outside of the hedge so that the
cuttings are swept to the ground.
Mounting the Loop Handle
N Place the clamp (1) in the loop
handle (2) and position them both
against the drive tube (5) between
the carrying ring (3) and handle
hose (4).
N Place the clamp (6) against the
drive tube.
N Line up the holes.
N Insert the screws (7) with
washers (8).
N Fit the square nuts (9) and screw
home the screws.
N Line up the loop handle.
N Tighten down the screws firmly.
