Stihl HT 100 User Manual

HT 100, HT 101, HT 130, HT 131
English
16

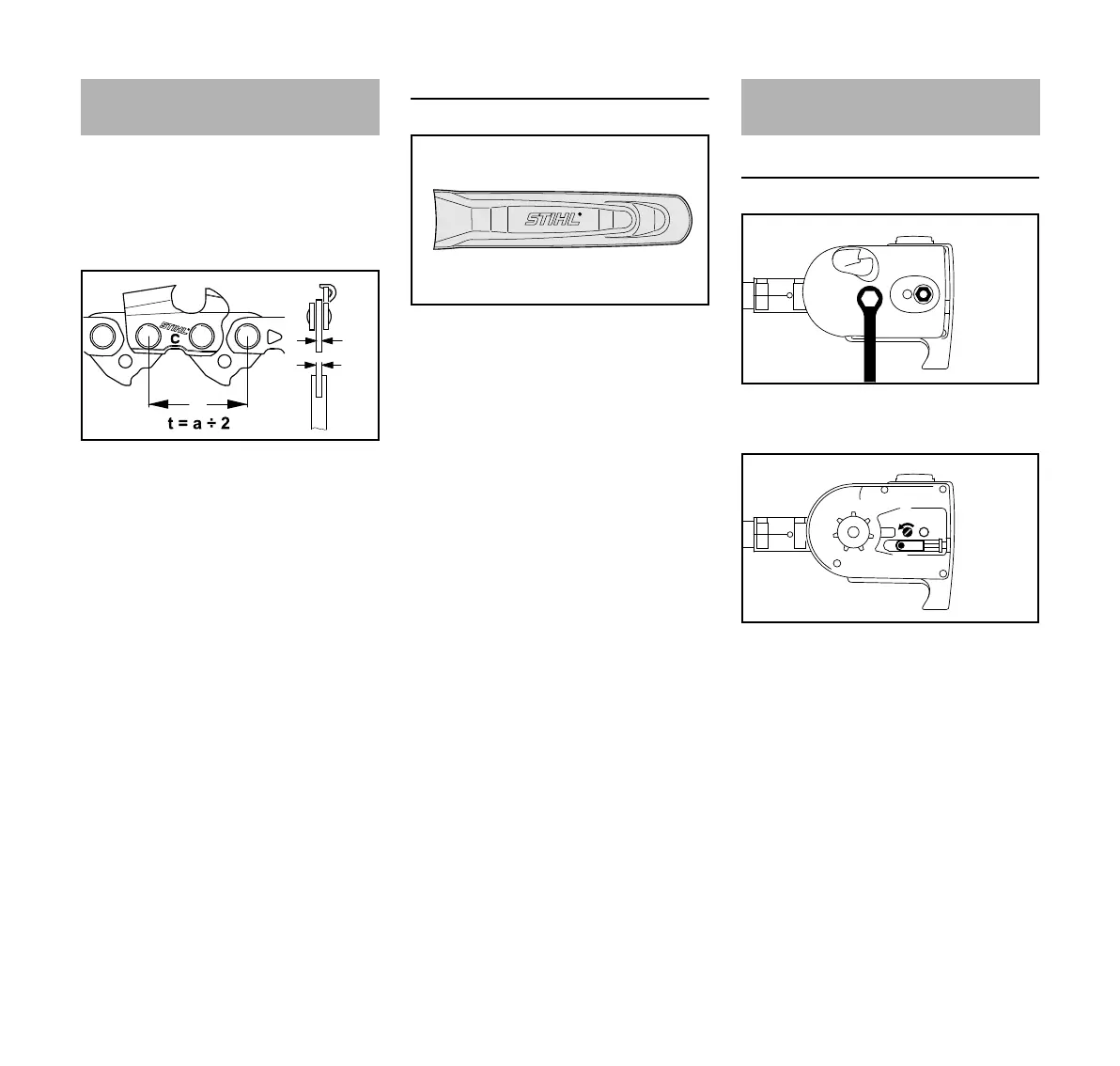

A cutting attachment consists of the saw
chain, guide bar and chain sprocket.
The cutting attachment that comes
standard is designed to exactly match
the pole pruner.
– The pitch (t) of the saw chain (1),
chain sprocket and the nose
sprocket of the Rollomatic guide bar
must match.
– The drive link gauge (2) of the saw
chain (1) must match the groove
width of the guide bar (3).
If non-matching components are used,
the cutting attachment may be damaged
beyond repair after a short period of
operation.
Chain scabbard
Your pole pruner comes standard with a
chain scabbard that matches the cutting
attachment.
If you use guide bars of different lenghts
on the pole pruner, the length of the
chain scabbard must be matched to the
guide bar to reduce the risk of injury. It
should cover the full length of the guide
bar.
The length of the matching guide bars is
marked on the side of the chain
scabbard.
Removing the chain sprocket cover
N Unscrew the nut and remove the
cover.
N Turn the screw (1)
counterclockwise until the tensioner
slide (2) butts against the left end of
the housing slot, then back it off 5
full turns.
Cutting Attachment
001BA248 KN
1
2
3
a
001BA244 KN
Mounting the Bar and Chain
390BA042 KN
1
2
390BA043 KN

Stihl HT 100 Specifications

General

Brand	Stihl
Model	HT 100
Category	Pole Saw
Language	English
