18
N Fit the guide bar over the screw (3)
and engage peg of tensioner slide in
the hole (4) – place the chain over
the sprocket (5) at the same time.
N Turn the tensioning screw (1)
clockwise until there is very little
chain sag on the underside of the
bar – and the drive link tangs are
engaged in the bar groove.
N Refit the cover and screw on the nut
fingertight.
N Go to chapter on "Tensioning the
Saw Chain"
Retensioning during cutting work:
N Stopping the engine
N Loosen the nut.
N Hold the bar nose up.
N Use a screwdriver to turn the
tensioning screw (1) clockwise until
the chain fits snugly against the
underside of the bar.
N While still holding the bar nose up,
tighten down the nut firmly.
N Go to "Checking Chain Tension".
A new chain has to be retensioned more
often than one that has been in use for
some time.
N Check chain tension frequently –
see chapter on "Operating
Instructions".
N Shut off the engine
N Wear work gloves to protect your
hands.
N The chain must fit snugly against
the underside of the bar and it must
still be possible to pull the chain
along the bar by hand.
N If necessary, retension the chain.
A new chain has to be retensioned more
often than one that has been in use for
some time.
N Check chain tension frequently –
see chapter on "Operating
Instructions".
1
5
390BA044 KN
4
3

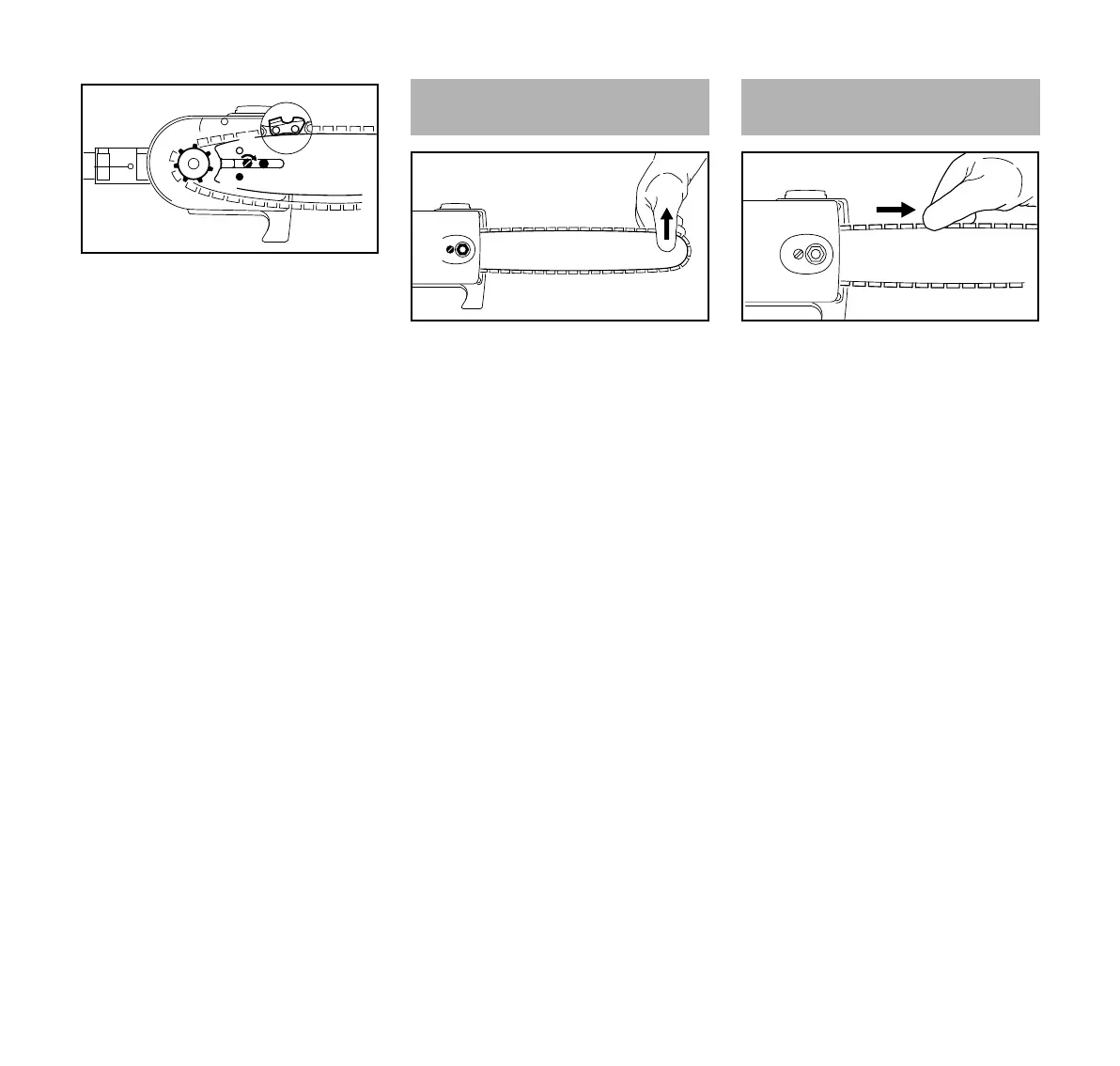

Tensioning the Chain
1
390BA045 KN
Checking Chain Tension
390BA046 KN

Stihl HT 56 C Specifications

General

Engine Power	0.8 kW (1.1 hp)
Displacement	27.2 cm³
Overall Length	280 cm
Chain Type	Picco Micro 3 (PM3)
Guide Bar Length	25 cm
Power Source	Gas
Fuel Capacity	340 cc (11.5 oz.)
