Stihl KM 56 R User Manual

KM 56 R, KM 56 RC
English
13
Using the Barrier Bar
The barrier bar comes standard with the
machine and must be mounted to the
loop handle.

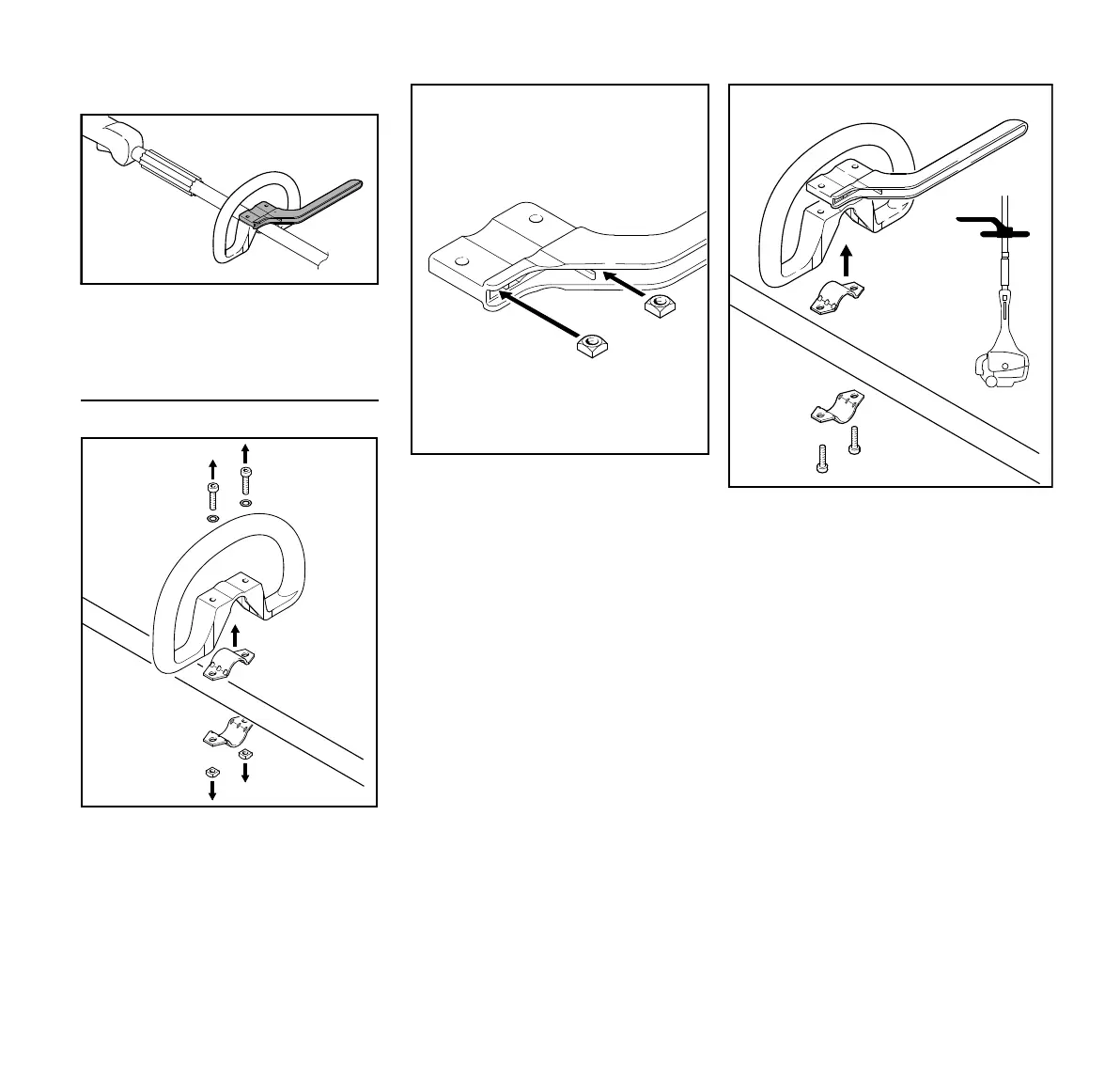

Mounting the Barrier Bar
N Take out the screws (1) and remove
along with washers (2) and nuts (3).
N Remove the loop handle (4) and
clamps (5).
N Fit the square nuts (1) in the barrier
bar (2); the holes must line up.
N Place the clamp (3) in the loop
handle (4) and position them both
against the drive tube (5).
N Place the clamp (6) against the
drive tube.
N Place the barrier bar (2) in position
as shown.
N Line up the holes.
N Insert the screws (7) in the holes
and screw them into the barrier
bar (2) as far as stop.
N Go to "Adjusting and Securing the
Loop Handle".
Leave the barrier bar permanently
mounted to the loop handle.
002BA587 KN
4
002BA588 KN
3
5
3
5
1
2
1
2
2
002BA098 KN
1
1
5
2
4
002BA589 KN
3
6
7
7

Stihl KM 56 R Specifications

General

Engine Type	2-stroke
Displacement	27.2 cm³
Power Output	0.8 kW
Engine Power	1.1 hp
Weight	4.3 kg
Fuel Capacity	0.33 l
Sound Pressure Level	96 dB(A)
Sound Power Level	107 dB(A)
Shaft Type	Straight
Drive Type	Flexible shaft
