Stihl KM 56 R User Manual

KM 56 R, KM 56 RC
English
26
1 Manual Fuel Pump
2 Fuel Filler Cap
3 Fuel Tank
4 Starter Grip
5 Muffler with Spark Arresting Screen
6 Carburetor Adjusting Screws
7 Choke Lever
8 Air Filter Cover
9 Spark Plug Boot
10 Machine Support
11 Throttle Trigger
12 Throttle Trigger Lockout
13 Stop Switch
14 Carrying Ring
15 Loop Handle
16 Barrier Bar
17 Drive Tube
18 Coupling Sleeve
19 Wing Screw
20 Sleeve
# Serial Number

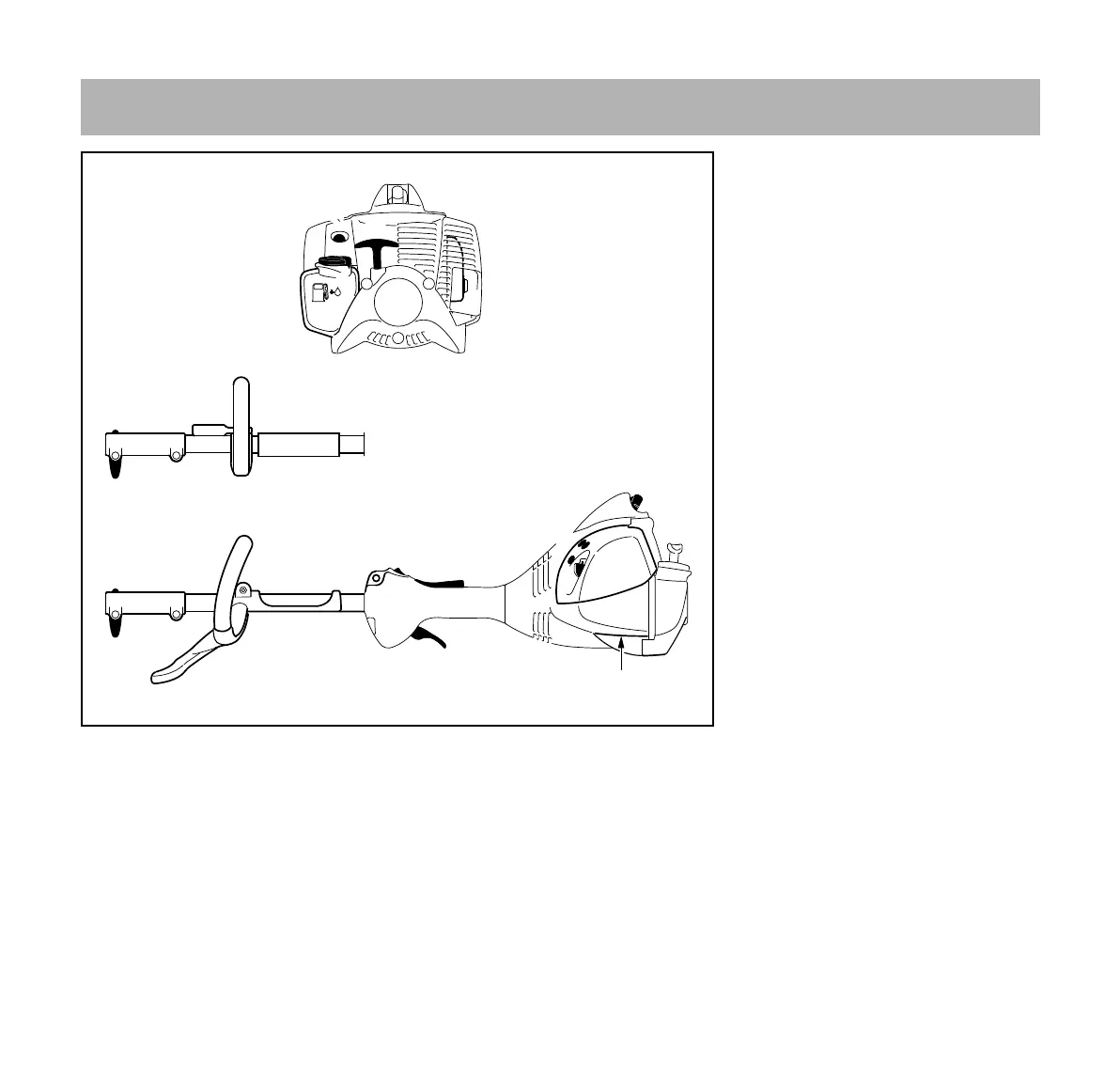

Main Parts
12
13
14
15
19
19
18
16
17
15
8
7
6
9
11
#
2
1
4
5
3
540BA010 KN
10
18
16
17
20

Stihl KM 56 R Specifications

General

Engine Type	2-stroke
Displacement	27.2 cm³
Power Output	0.8 kW
Engine Power	1.1 hp
Weight	4.3 kg
Fuel Capacity	0.33 l
Sound Pressure Level	96 dB(A)
Sound Power Level	107 dB(A)
Shaft Type	Straight
Drive Type	Flexible shaft
