64 Series 4144 Components FC, FS, KM
8.10 Removing and Installing
the Engine Housing
– Drain the fuel tank, b 1
– Remove the drive tube, b 9.1
– Remove the engine, b 5.1

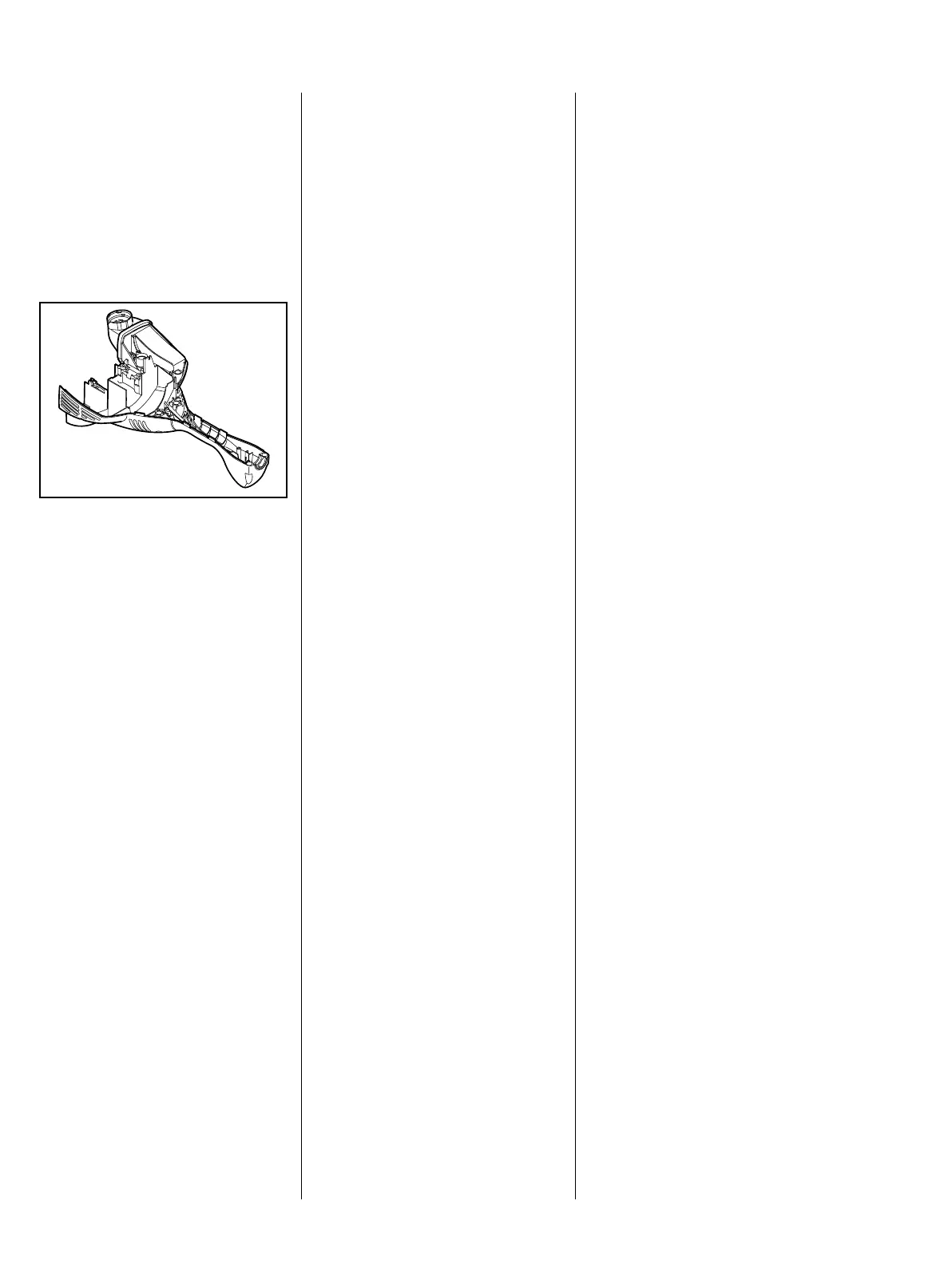

– Check the engine housing and
replace if necessary.
If a new engine housing is used, the
short circuit wire, ground wire and
throttle cable must be transferred
from the old housing.
Machines with loop handle
– Transfer the short circuit and
ground wires, b 5.9.2
– Transfer the throttle cable, b 8.6
Machines with bike handle
– Transfer the short circuit and
ground wires, b 5.9.3
– Transfer the throttle cable,
b 8.6.1
– Check parts before transferring,
use new parts where necessary.
– Reassemble in the reverse
sequence.
– Tightening torques, b 3.4
545RA227 TG
