13KM 90, KM 90 R
English / USA
Fitting the Throttle Cable
Do not kink the throttle cable or lay
it in tight radii – make sure the
throttle trigger moves freely.
: Press the throttle cable (14) into the
retainers (15).
Throttle Cable Adjustment
On control handles with slide:
: Go to chapter "Adjusting the
Throttle Cable".
* see "Guide to Using this Manual"

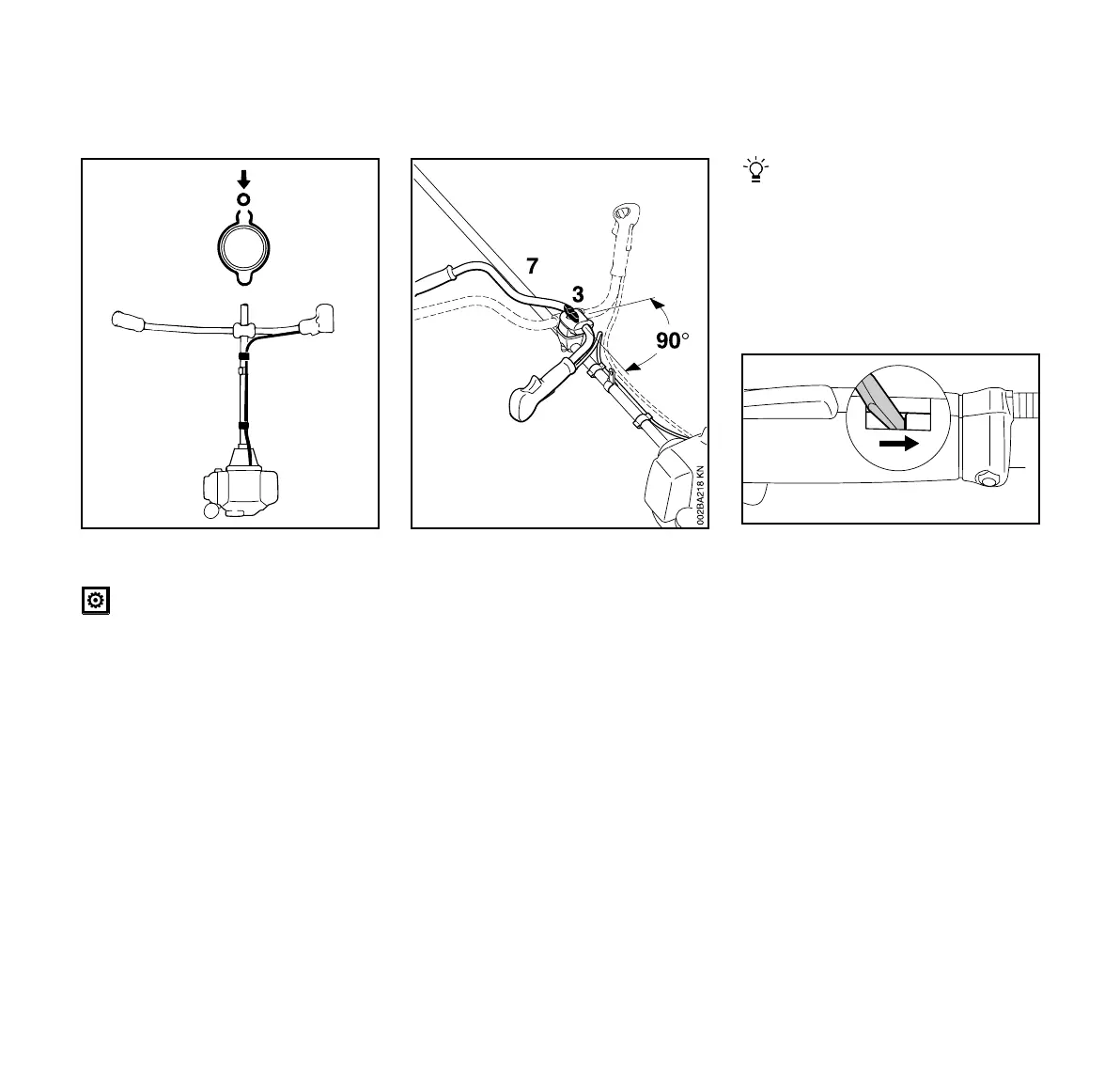

Swiveling the Handlebar
Transport position:
: Release the wing screw (3) and
unscrew it until the handlebar (7)
can be turned clockwise.
: Turn the handlebar 90° and then
swing the handles down.
: Tighten down the wing screw firmly.
Working position:
: Reverse the sequence described
above to swing the handles up
and turn the handlebar counter-
clockwise.
A properly adjusted throttle cable is
the precondition for correct
operation in the full throttle, starting
throttle and idle positions.
Adjust the throttle cable only after
the unit is fully assembled – the
control handle must be in the normal
operating position.
: Use a suitable tool to push the slide
to the bottom of the slot (see
illustration).
15
14
15
14
15
250BA002 KN
Adjusting the Throttle Cable
002BA163 KN
