KM 90, KM 90 R
: Press down the trigger interlock (1)
and squeeze the throttle trigger (2)
(full throttle) – this sets the throttle
cable correctly.
Loop handle with barrier bar
: Insert square nuts (1) in the
barrier bar (2).
: Line up the holes.
: Place the clamp (3) in the loop
handle (4) and position them both
against the drive tube (5).
: Fit the clamp (6) and place the
barrier bar (2) in position.
Note correct position.
: Line up the holes.
: Insert screws (7) in holes and screw
them into the barrier bar as far as
stop.
: Go to “Securing the loop handle”.
STOP
249BA017 KN
1
2

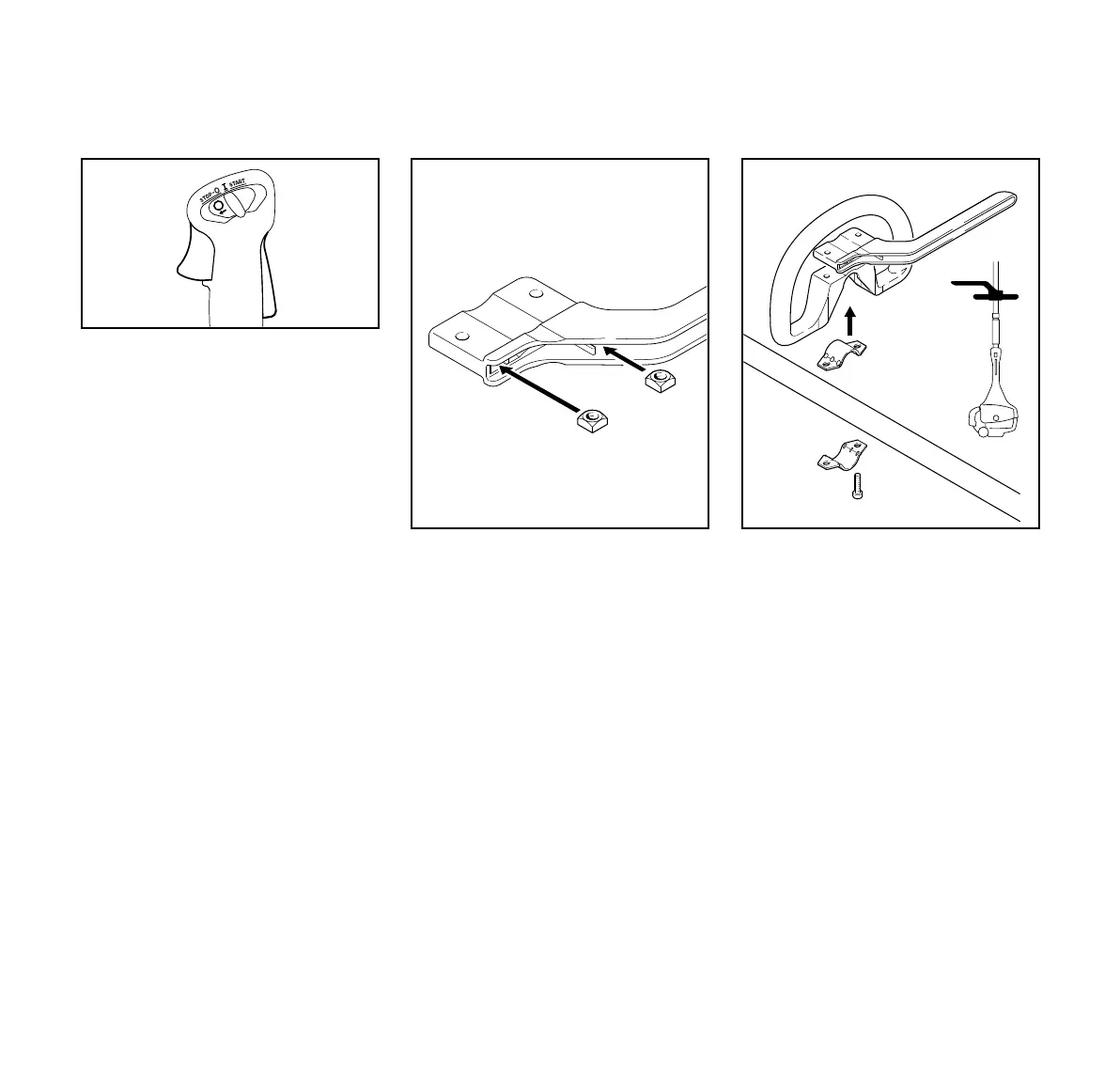

Mounting the Loop Handle
2
002BA098 KN
1
1
5
4
002BA099 KN
2
3
6
7
