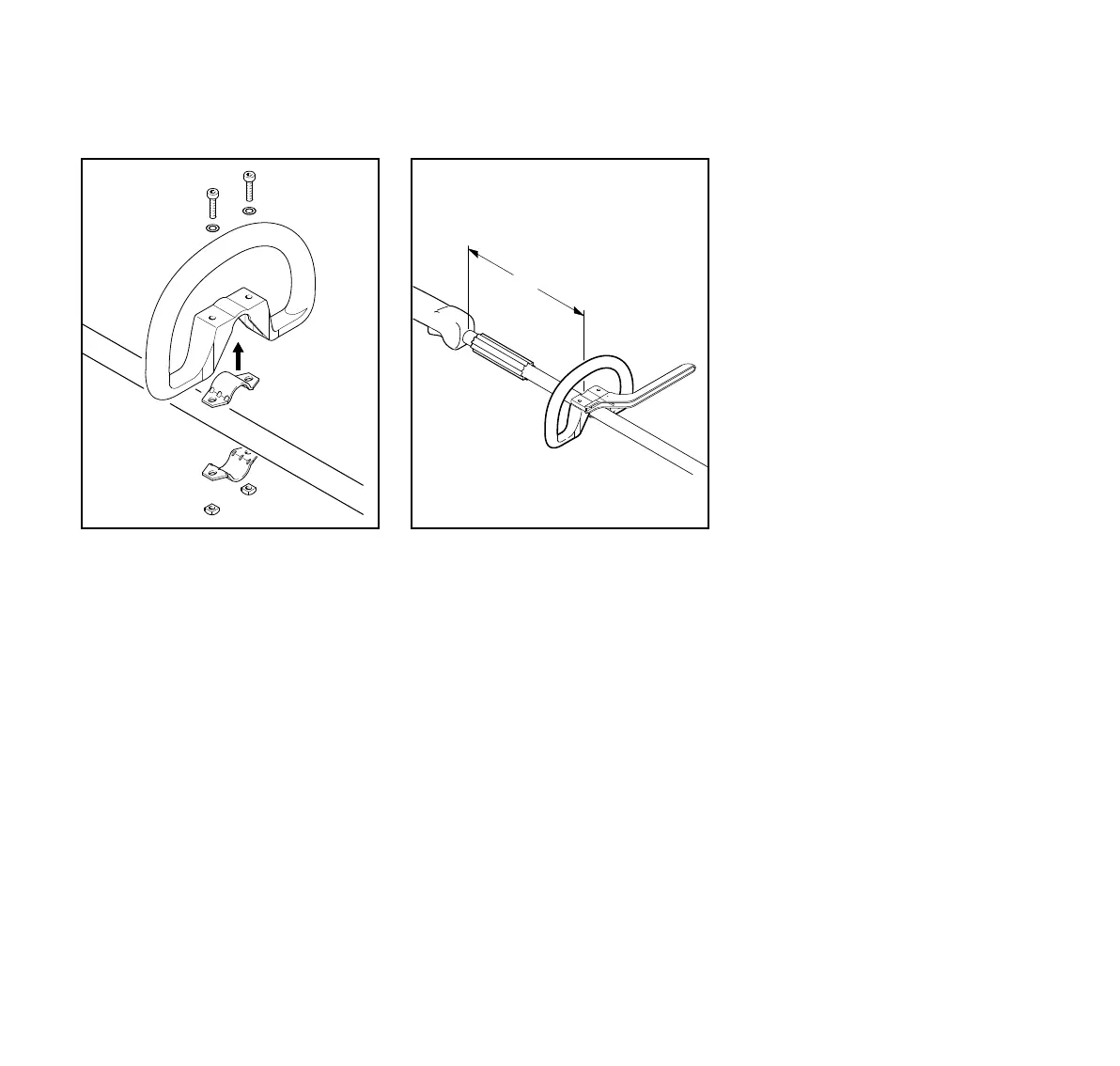

Loop handle without barrier bar
: Place the clamp (3) in the loop
handle (4) and position them both
against the drive tube (5).
: Fit the clamp (6) and line up the
holes.
: Fit washers (7) on screws (8).
: Insert screws (8) in holes and screw
on the square nuts (1) as far as
stop.
: Go to “Securing the loop handle”.
Securing the loop handle
: Secure the loop handle (4)
approx. 8”/20cm (A) forward of
the control handle (9).
: Line up the loop handle.
: Tighten down the screws firmly –
lock the nuts if necessary.
10= Sleeve*
* see “Guide to Using this Manual”
The STIHL 4-MIX engine features gas
oil lubrication and must be run on a fuel
mixture of gasoline and engine oil.
It operates otherwise on the 4-stroke
principle.
