18
English / USA
KM 90, KM 90 R

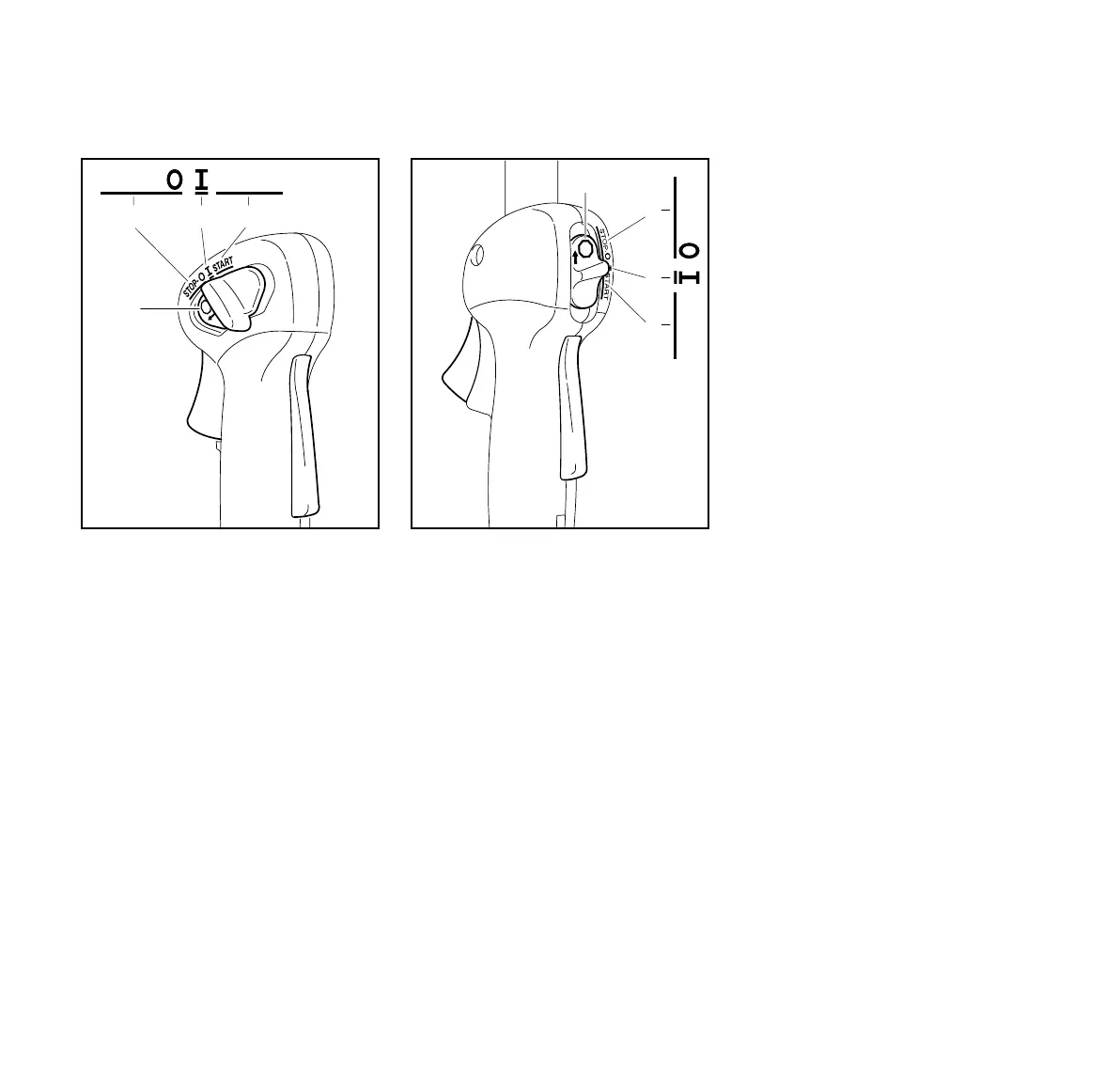

Controls
Control handle on bike handle
Throttle trigger interlock (1), throttle
trigger (2) and slide control (3).
Control handle on drive tube
Throttle trigger interlock (1), throttle
trigger (2) and slide control (3).
Positions of Slide Control
STOP-O (4) – engine off – the ignition is
switched off
# – normal run position (5) – the engine
is running or can start
START (6) – the ignition is switched on,
the engine can start
Symbol on slide control
h (7) – stop symbol and arrow – to stop
the engine, push the slide control in the
direction of the arrow on the stop symbol
(h) to STOP-O.
Starting Procedure
: Hold down the throttle trigger
interlock and squeeze the throttle
trigger.
: While holding both levers in this
position, move the slide control to
START and hold it there.
: Now release the throttle trigger,
slide control and throttle trigger
interlock in that order. This is the
starting throttle position.
Starting / Stopping
the Engine
3
STOP
56
4
7
002BA182 KN
1
2
START
STOP-
3
STOP
2
5
6
4
7
002BA181 KN
START
STOP-
1
