26
English / USA
KM 90, KM 90 R
: Remove remaining rope from the
rotor and grip.

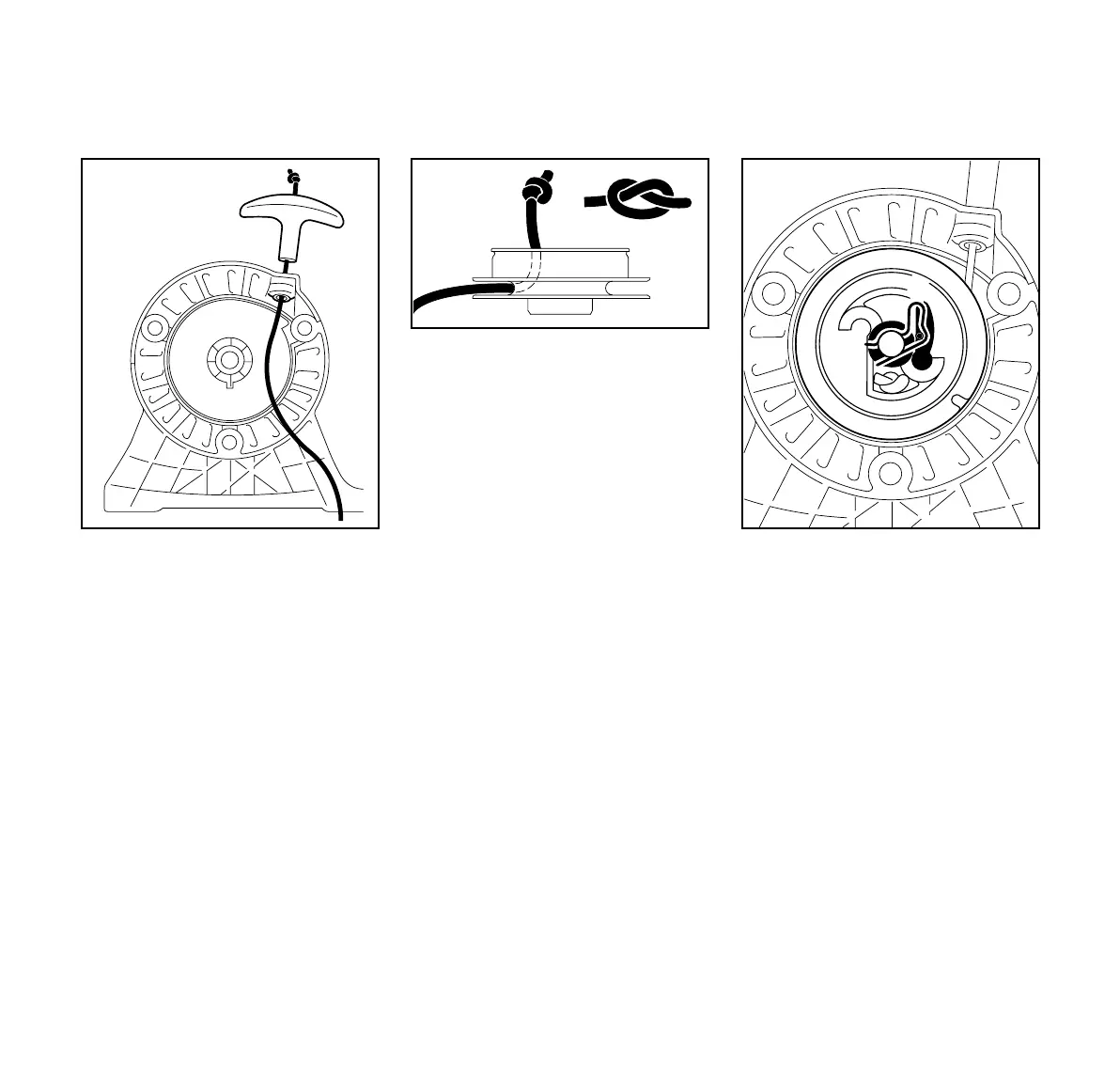

: Tie a simple overhand knot in the
new rope (see "Specifications") and
then thread it through the top of the
grip and the rope bushing (6).
: Thread the rope through the rotor
and secure it with a simple
overhand knot.
: Coat rope rotor bearing bore with
non-resinous oil.
: Slip rotor over starter post – turn it
back and forth to engage anchor
loop of rewind spring.
: Refit the pawl (5) in the rotor.
: Fit the washer (4) on the starter
post.
: Use a screwdriver or suitable pliers
to install spring clip (3) on starter
post and engage it on the pawl's peg
– the spring clip must point
counterclockwise clockwise as
shown in the illustration.
: Go to "Tensioning the rewind
spring".
249BA014 KN
6
249BA015 KN
4
3
5
249BA013 KN
