Stihl KM 94 R User Manual

KM 94 R
English
13

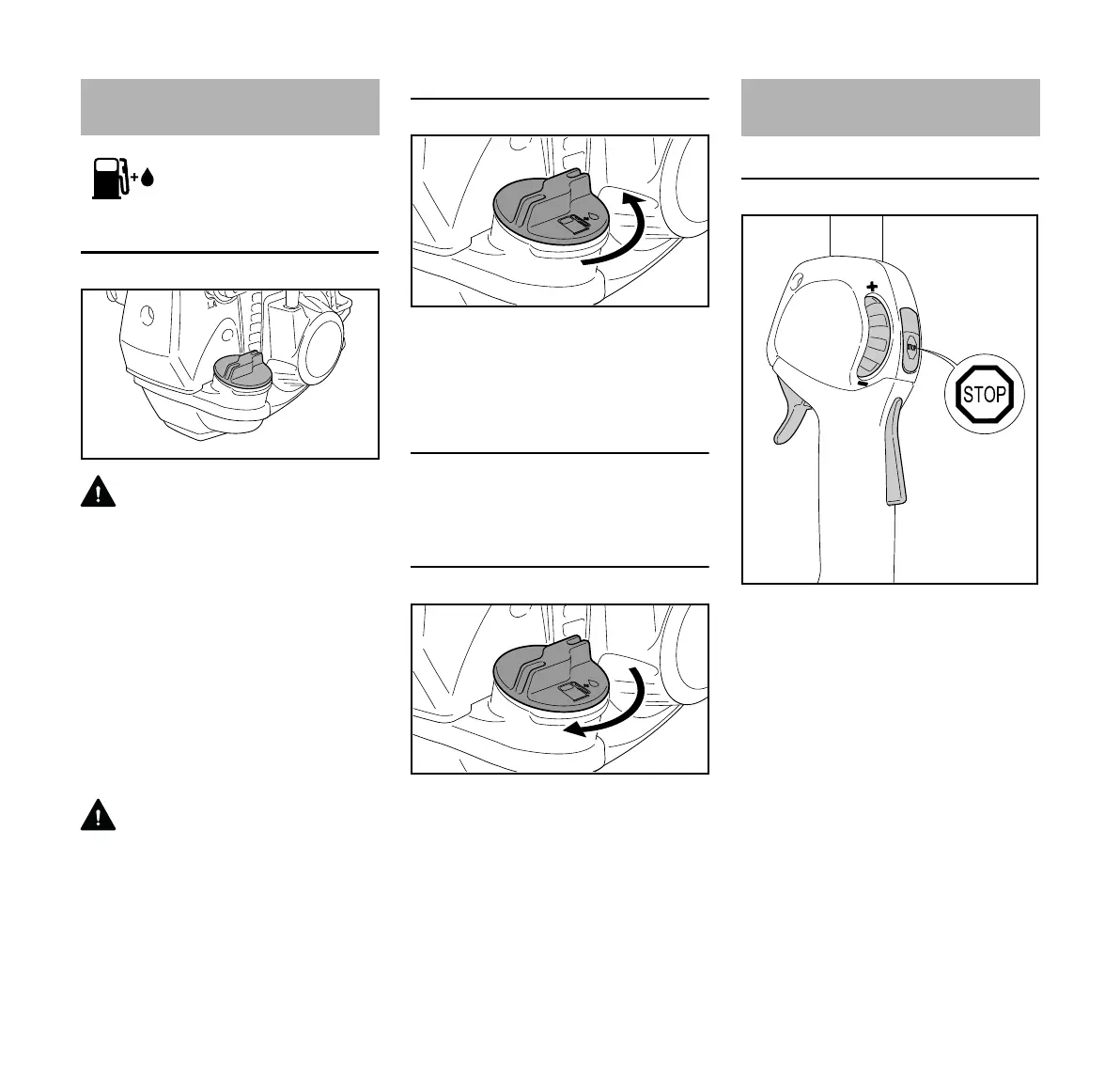

Preparations
WARNING
When fueling on a slope, always position
the machine so that the filler cap is
facing uphill.
N On level ground, position the
machine so that the filler cap is
facing up.
N Before fueling, clean the filler cap
and the area around it to ensure that
no dirt falls into the tank.
Always thoroughly shake the mixture in
the canister before fueling your
machine.
WARNING
In order to reduce the risk of fire and
personal injury from escaping gas vapor
and fumes, remove the fuel filler cap
carefully so as to allow any pressure
build-up in the tank to release slowly.
Opening the screw cap
N Turn the cap counterclockwise until
it can be removed from the tank
opening.
N Remove the filler cap.
Refueling
Take care not to spill fuel while fueling
and do not overfill the tank.
Closing the screw cap
N Position cap.
N Turn the cap clockwise as far as it
will go and tighten it as securely as
possible by hand.
Controls
1 Throttle trigger lockout
2 Throttle trigger
3 Stop switch with Run and Stop
positions. Press the stop switch
(…) to switch off the ignition – see
"Function of stop switch and ignition
system".
4 Throttle set wheel – limits travel of
throttle trigger – see "Function of
throttle set wheel".
Function of stop switch and ignition
system
The ignition is switched off and the
engine stopped when the stop switch is
pressed. The stop switch returns
automatically to the Run position when it
Fueling
0208BA019 KN
0208BA020 KN
0208BA021 KN
Starting / Stopping the
Engine
192BA001 KN
2
1
4
3

Stihl KM 94 R Specifications

General

Displacement	27.2 cm³
Power Output	0.9 kW
Weight	4.0 kg
Engine Type	2-stroke
Fuel Tank Capacity	0.35 l
Engine Power	0.9 kW
Powerhead Weight	4.0 kg
Fuel Capacity	0.54 l
