HT-KM
English
13

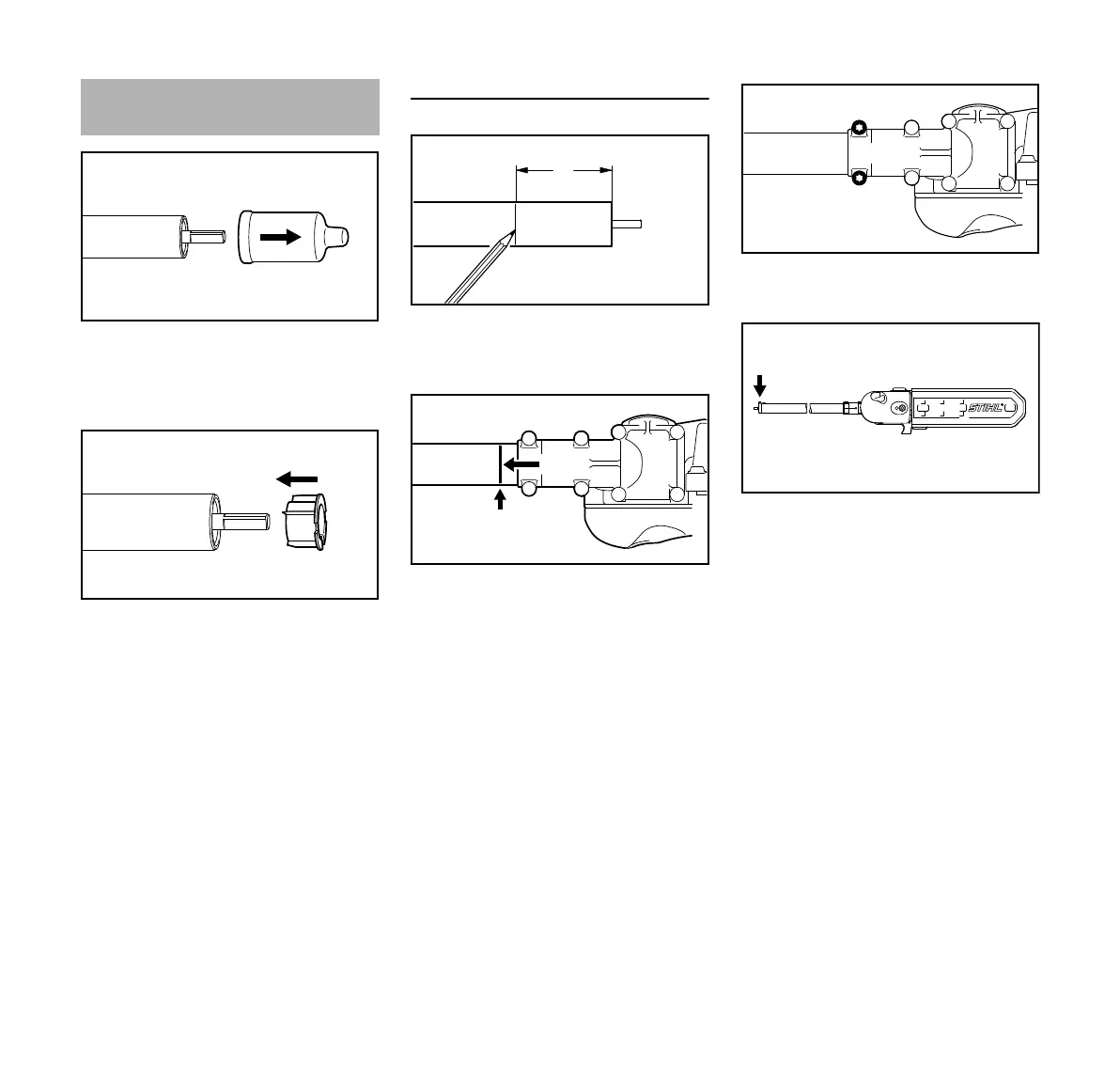

N Pull the protective caps off the ends
of the drive tube and keep them in a
safe place for later use – see
"Storing the Machine".
NOTICE
The plug may come out of the drive tube
when you pull off the cap. Push it back
into the drive tube as far as stop.
Mounting the Gearbox
N Apply a mark at distance A (2 in,/
50 mm) from the end of the drive
tube.
N Push the gearbox (1) onto the drive
tube as far as stop – turn the
gearbox back and forth until the
square end of the shaft engages.
The gearbox is correctly positioned
when the end of its housing reaches or
covers the mark (arrow).
N Insert the clamp screws (3) as far as
stop.
N Line up the gearbox (1) so that the
chain sprocket cover is exactly
vertical and the lug (arrow) on the
end of the drive tube faces up.
N Tighten down the clamp screws (3)
in the following sequence:
– tighten the left screw moderately
– tighten the right screw moderately
– tighten down the left screw firmly
– tighten down the right screw firmly
Assembling the Unit
