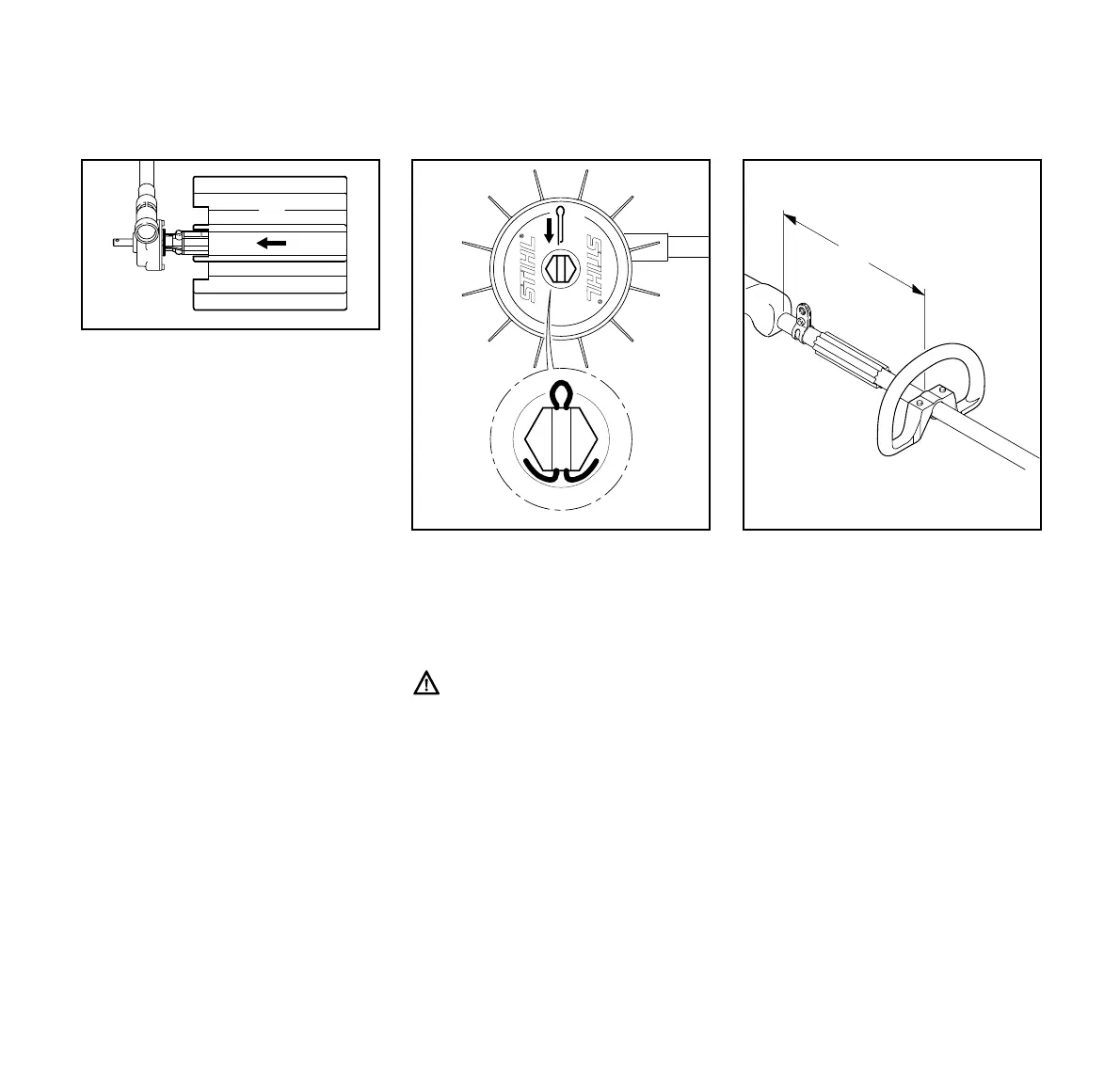

: Push sweeper drum assembly (6)
onto the axle (2) – note the installed
position (see illustration)!
: Fit new cotter pin (7) in end of
axle (2) and bend over the ends (8)
of the cotter pin as shown.
: Repeat the procedure on the other
side.
Always mount both sweeper drum
assemblies!
Position of Loop Handle
: Fit the loop handle (1) on the drive
tube approx. 8“ / (20 cm) (A)
forward of the control handle (2).
: Make sure that any parts that are
already fitted, ie. the spacer sleeve*
(3) and carrying eye* (4), are
between the loop handle and
control handle.
* see “Guide to Using this Manual”
223BA009 KN
6
2
88
7
223BA010 KN
2
Mounting the Loop Handle*
2
1
002BA184 KN
A
4
3
