Componente principale
Înlocuirea bateriilor
Bateriile sunt incluse în programul de livrare şi se găsesc în buzunar 1.
: desfaceţi şuruburile (10) până la muchia superioară a semicarcasei
astfel încât să facă corp comun cu aceasta şi demontaţi
semicarcasa (11)
: montaţi bateriile conform polarităţii afişate (+ şi -)
: repoziţionaţi semicarcasele şi strângeţi şuruburile

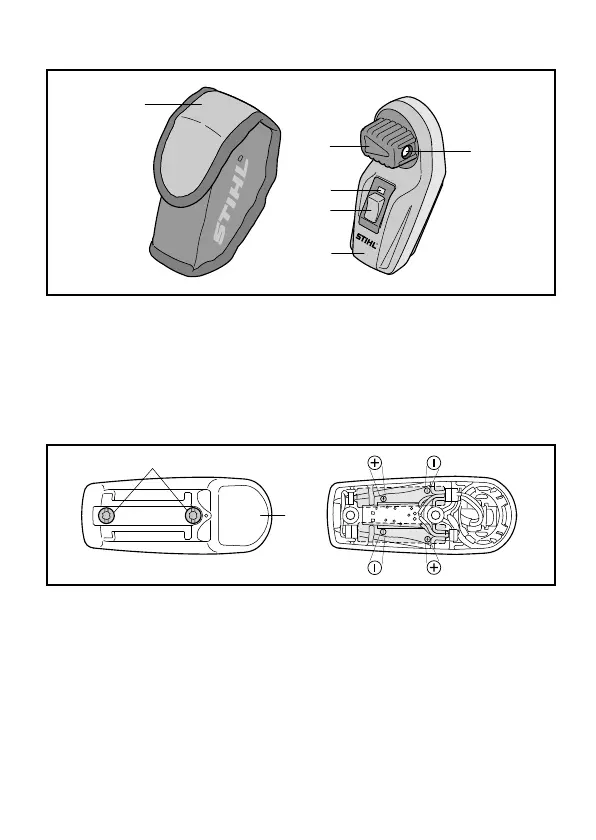

1 Buzunar 4 Bec de control (pornire/oprire)
2 Laser 2 în 1 5 Mâner rotativ
3 Tastă (pornire/oprire) 6 Dioda laserului şi sistemul optic
684BA040 KN
1
2
3
4
5
6
10
11
684BA037 KN
