MS 192 T, MS 192 TC

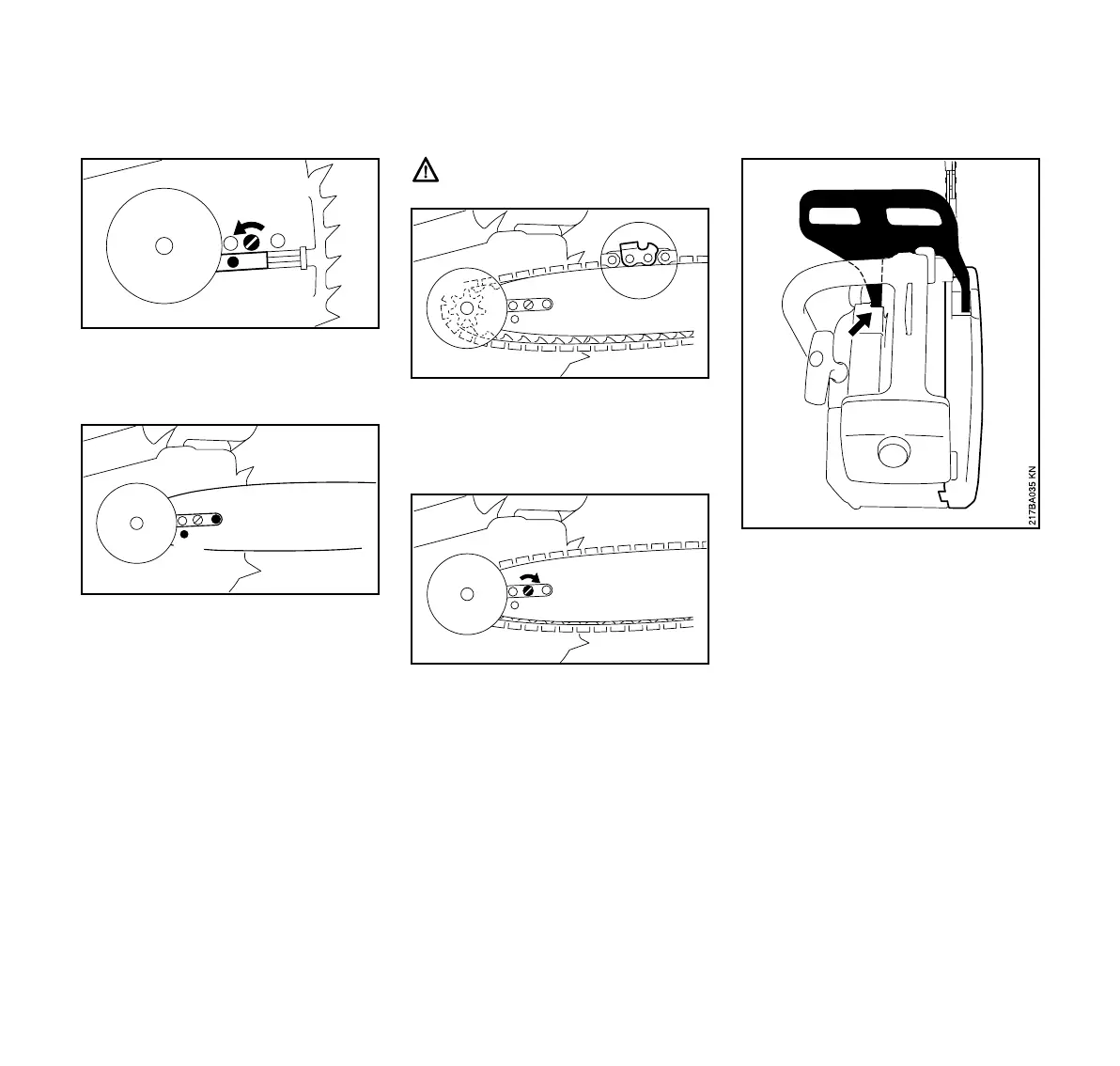

: Turn screw (7) counterclockwise
until the tensioner slide (8) butts
against left end of housing slot.
: Fit the guide bar over the stud (9)
and engage the peg of the tensioner
slide in locating hole (10).
Wear work gloves to protect your
hands!
: Fit chain around the sprocket (11)
and over the guide bar – cutting
edges on top of bar must point to
bar nose.
: Now turn tensioning screw (7)
clockwise until there is very little
chain sag on the underside of the
bar – and the drive link tangs are
located in the bar groove.
: Refit the sprocket cover – the pivot
pin on the hand guard must engage
the sleeve – and then screw nut on
to stud fingertight.
: Go to chapter “Tensioning the Saw
Chain”.
142BA059 KN
7
8
142BA060 KN
10
9
11
142BA061 KN
7
142BA062 KN

Stihl MS 192 T Specifications

General

Engine Displacement	30.1 cc
Recommended bar length	30 cm
Engine Power	1.3 kW
Guide Bar Length	30-35 cm
Fuel Capacity	0.27 liters
Chain Oil Capacity	0.22 liters
Chain pitch	3/8"
