Stihl MS 192 T User Manual

51MS 192 T, MS 192 TC
English / USA
1 Carburetor box cover twist lock
2 Carburetor box cover
3 Carburetor adjusting screws
4 Control handle
5 Throttle trigger interlock
6 Master Control lever
7 Throttle trigger
8 Chain brake
9 Chain sprocket
10 Chain sprocket cover
11 Spark plug boot
12 Muffler
13 Chain tensioner
14 Chain catcher
15 Guide bar
16 Oilomatic saw chain
17 Bumper spike
18 Fuel filler cap
19 Oil filler cap
20 Hand guard
21 Handlebar (front handle)
22 Starter grip
23 Choke lever
24 Fuel pump
25 Ring
#= Serial number

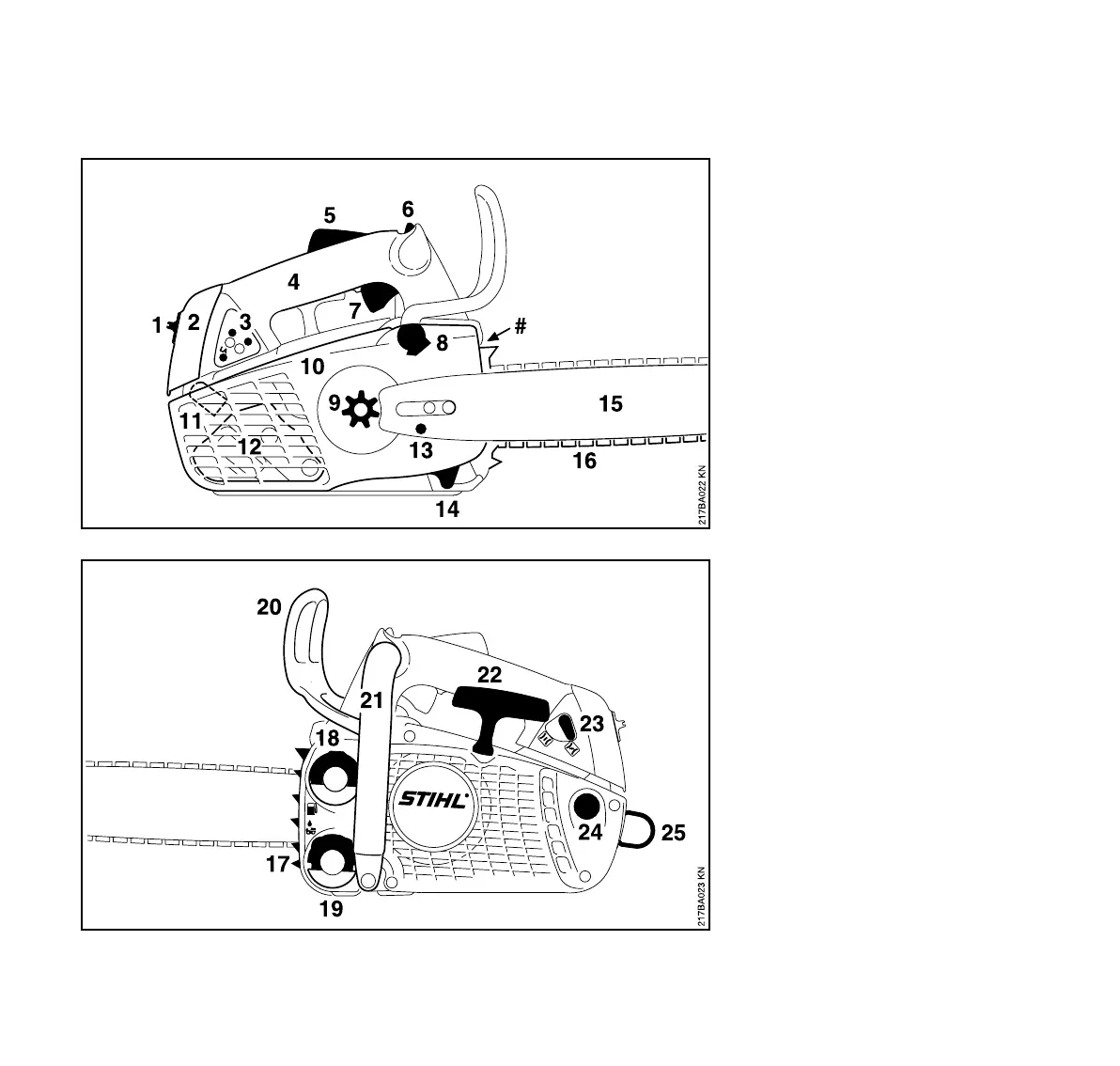

Main Parts and Controls

Stihl MS 192 T Specifications

General

Engine Displacement	30.1 cc
Recommended bar length	30 cm
Engine Power	1.3 kW
Guide Bar Length	30-35 cm
Fuel Capacity	0.27 liters
Chain Oil Capacity	0.22 liters
Chain pitch	3/8"
