Stihl MS 192 TC User Manual

MS 192 T, MS 192 TC
English
35
Models with stardard starter
Models with Easy2Start

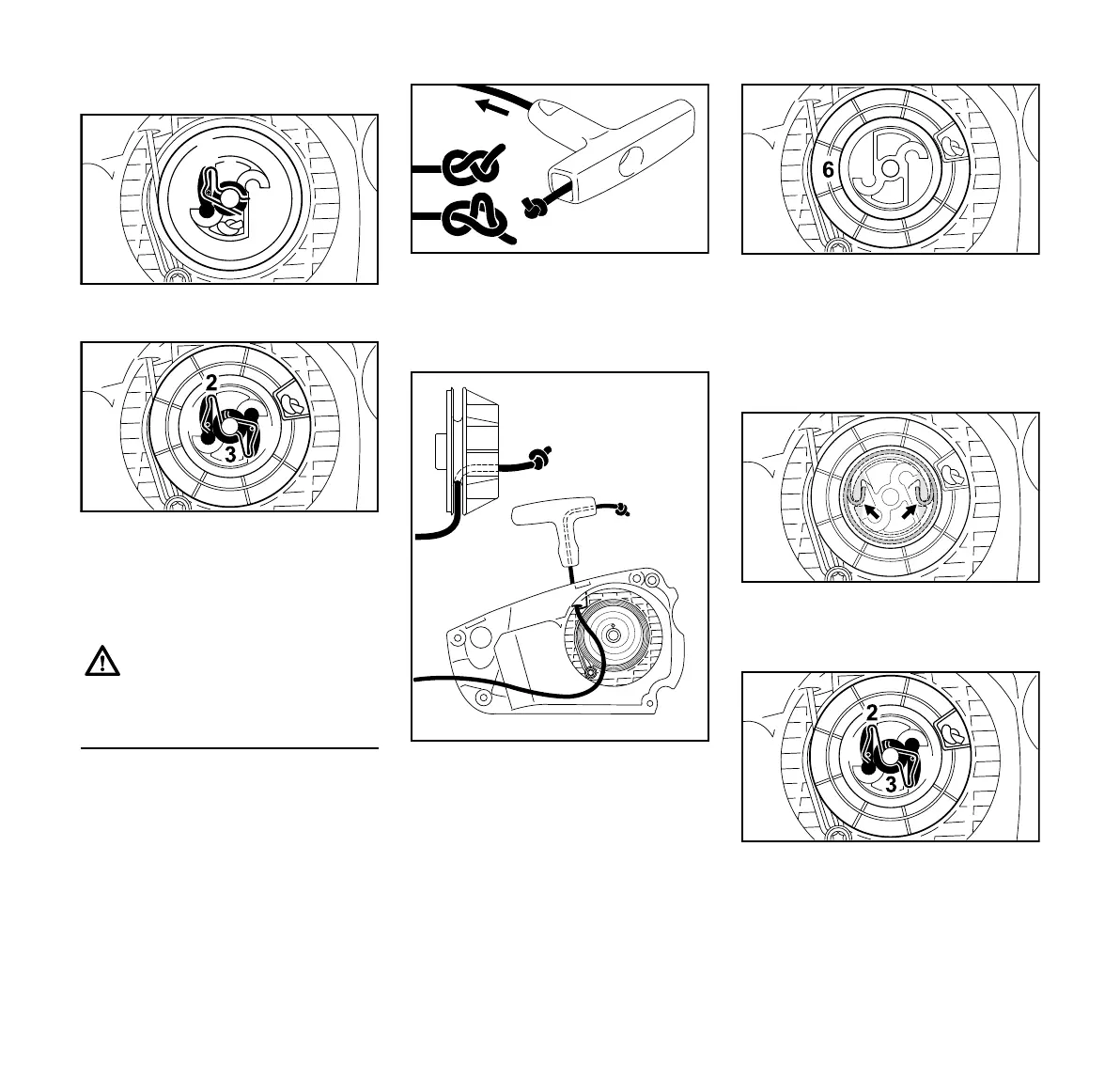

N Use a screwdriver or suitable pliers
to remove the spring clip (2) from
the starter post.
N Carefully remove the rope rotor with
washer (3) and pawl (4).
Replacing the starter rope
Models without ElastoStart and
models with Easy2Start
N Use a screwdriver to pry the rope
out of the starter grip.
N Remove the remaining rope from
the rotor and starter grip.
N Thread the new rope through the
starter grip and tie one of the special
knots shown.
N Pull the knot back into the grip.
N Thread the rope through the top of
the guide bushing (5).
N Thread the rope through the rotor
and secure it with a simple
overhand knot.
N Coat rope rotor bearing bore with
non-resinous oil.
N Slip the rotor (6) with carrier (7) over
the starter post – turn it back and
forth to engage the anchor loop of
the rewind spring.
N The spring under the carrier must
engages the rope rotor and the
carrier (arrows).
N Fit the pawls (4) in the rotor and fit
the washer (3) on the starter post.
N Use a screwdriver or suitable pliers
to install the spring clip (2) on starter
post and engage it on the pawls'
The rewind spring may pop out
and uncoil during this operation –
take care to avoid risk of injury.
217BA044 KN
2
3
4
4
217BA045 KN
4
151BA021 KN
5
217BA046 KN
217BA047 KN
7
217BA048 KN
4
217BA045 KN
4

Stihl MS 192 TC Specifications

General

Engine Displacement	30.1 cm³
Fuel Capacity	0.27 L
Chain Oil Capacity	0.22 L
Chain pitch	3/8" P
Oilomatic saw chain type	Picco Micro Mini 3 (PMM3)
Power Output	1.3 kW
Guide Bar Length	30-35 cm
Guide bar lengths (recommended)	30-35 cm
