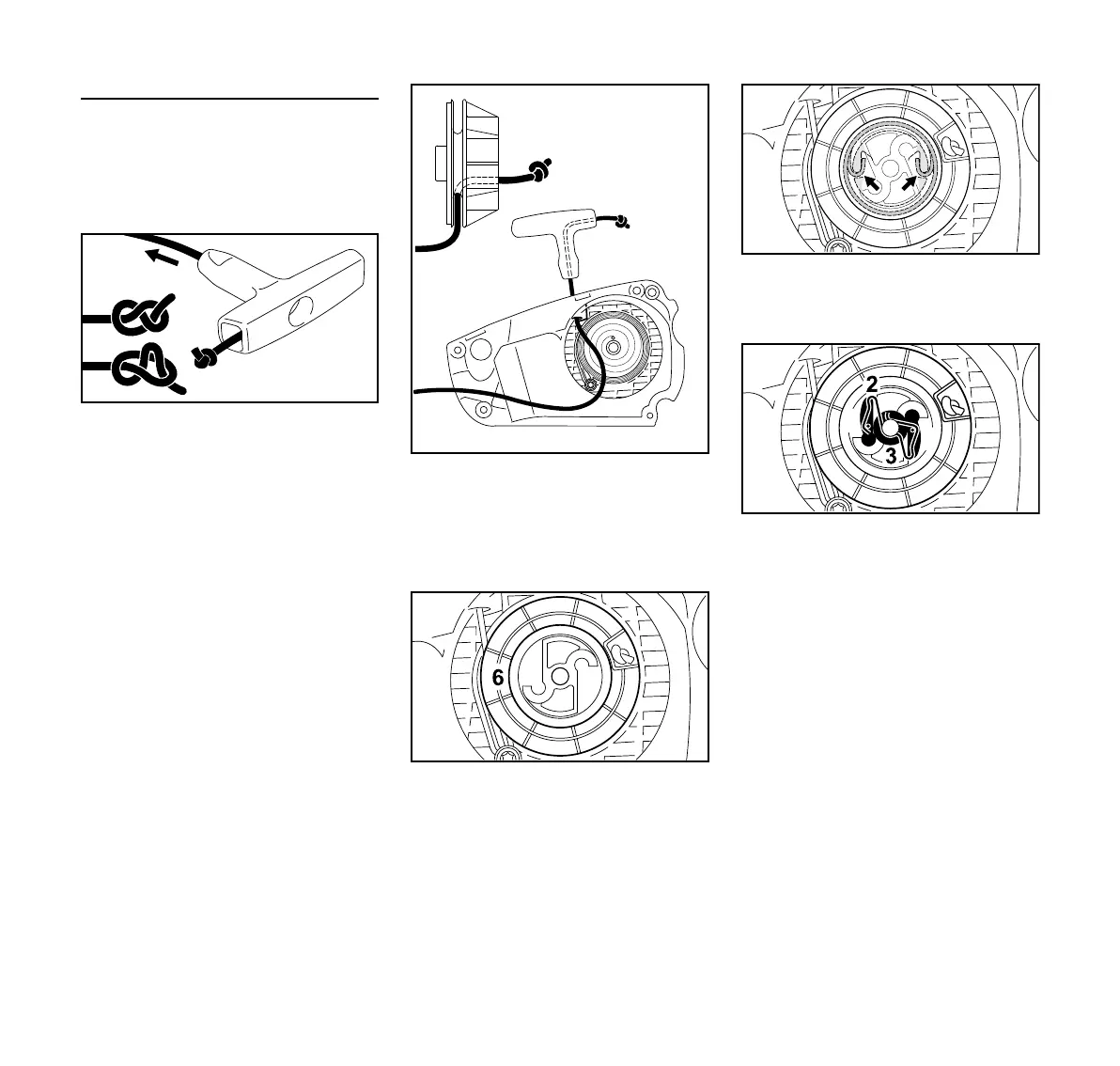

Replacing the starter rope
N Use a screwdriver to pry the rope
out of the starter grip.
N Remove the remaining rope from
the rotor and starter grip.
N Thread the new rope through the
starter grip and tie one of the special
knots shown.
N Pull the knot back into the grip.
N Thread the rope through the top of
the guide bushing (5).
N Thread the rope through the rotor
and secure it with a simple
overhand knot.
N Coat rope rotor bearing bore with
non-resinous oil.
N Slip the rotor (6) with carrier (7) over
the starter post – turn it back and
forth to engage the anchor loop of
the rewind spring.
N The spring under the carrier must
engage the rope rotor and the
carrier (arrows).
N Fit the pawls (4) in the rotor and fit
the washer (3) on the starter post.
N Use a screwdriver or suitable pliers
to install the spring clip (2) on the
starter post and engage it on the
pawls' pegs – the spring clip must
point clockwise as shown in the
illustration.
151BA021 KN
5
217BA046 KN
217BA047 KN
7
217BA048 KN
4
217BA045 KN
4

Stihl MS 192 Specifications

General

Engine Power	1.3 kW (1.8 hp)
Displacement	30.1 cm³
Sound Pressure Level	96 dB(A)
Sound Power Level	109 dB(A)
Weight	3.3 kg
Guide Bar Length	30-35 cm (12-14 inches)
Fuel Capacity	0.27 L
Chain Pitch	3/8"
Chain Oil Capacity	0.22 L
